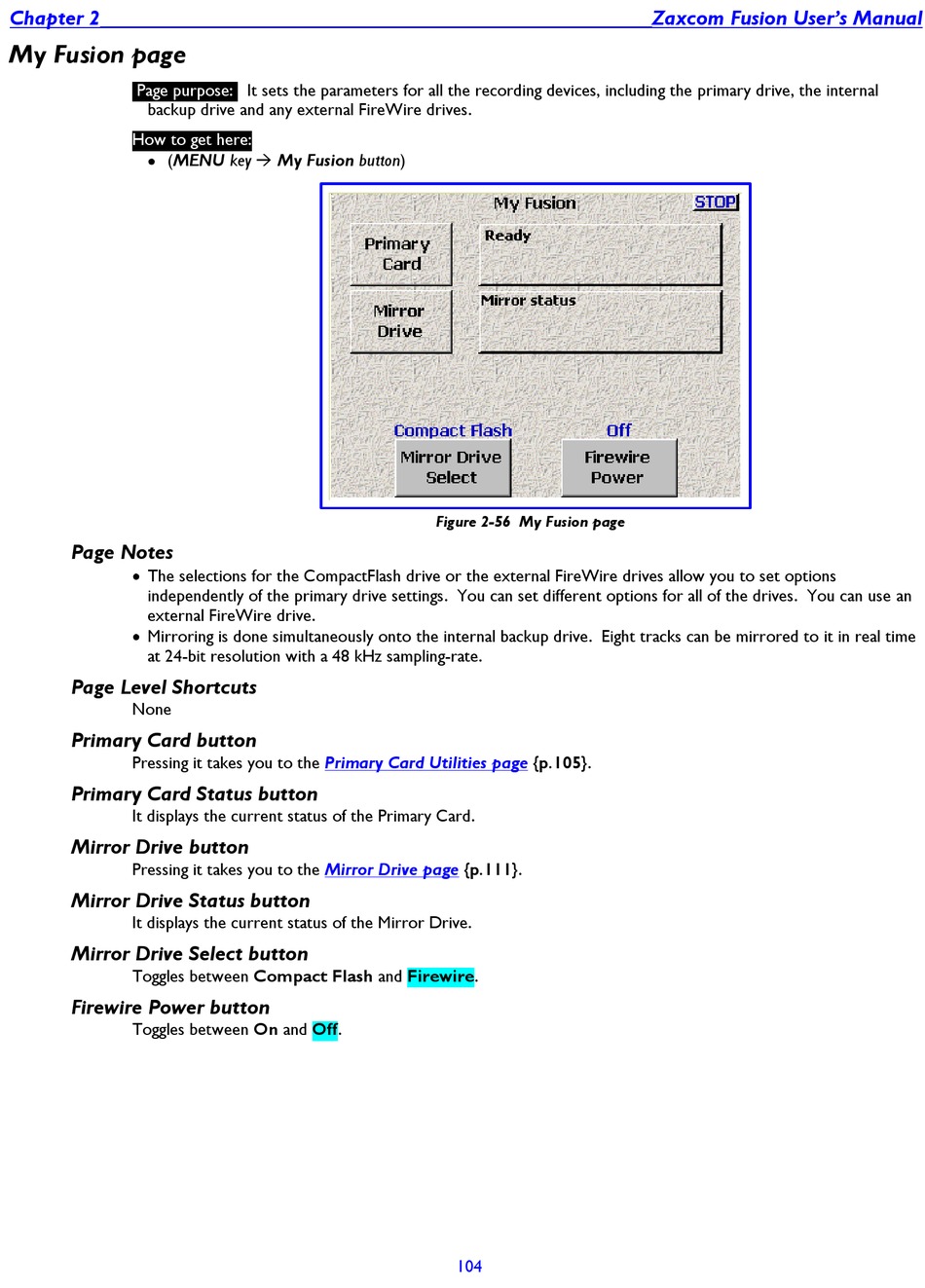

Figure 2-56 M Yfusion Page; My Fusion - Zaxcom Fusion 12 User Manual

Chapter 2______________________________________________________Zaxcom Fusion User's Manual
My Fusion page
Page purpose:
backup drive and any external FireWire drives.
How to get here:
(MENU key  My Fusion button)
Page Notes
The selections for the CompactFlash drive or the external FireWire drives allow you to set options
independently of the primary drive settings. You can set different options for all of the drives. You can use an
external FireWire drive.
Mirroring is done simultaneously onto the internal backup drive. Eight tracks can be mirrored to it in real time
at 24-bit resolution with a 48 kHz sampling-rate.
Page Level Shortcuts
None
Primary Card button
Pressing it takes you to the
Primary Card Status button
It displays the current status of the Primary Card.
Mirror Drive button
Pressing it takes you to the
Mirror Drive Status button
It displays the current status of the Mirror Drive.
Mirror Drive Select button
Toggles between Compact Flash and Firewire.
Firewire Power button
Toggles between On and Off.
It sets the parameters for all the recording devices, including the primary drive, the internal
Primary Card Utilities page
Mirror Drive page
Figure 2-56 My Fusion page
{p.105}.
{p.111}.
104
