Zaxcom Fusion User's Manual______________________________________________________Chapter 2

Mirror Drive page

Page purpose:
the FireWire port or the internal BACKUP CF drive.
How to get here:
(SHIFT + MIRROR keys)
(MENU key  My Fusion button  Mirror Drive button)

Page Notes

None

Page Level Shortcuts

Typing a number opens a Segment Number field (see Start Seg button). Type the remainder of the number and
press the ENTER key. Once entered, the system enters it as the Start Seg button‟s data.
Typing a second number opens a second Segment Number field (see End Seg button). Type the remainder of
the number and press the ENTER key. Once entered, the system enters it as the End Seg button‟s data.

File Type button

Pressing it takes you to the

File Resolution button

24 Bits – the mirror copy is 24 bits.
16 Bits – the mirror copy is 16 bits.

Format Drive button

Pressing it takes you to the

Tracks to Mirror button

Pressing it takes you to the

Folder to Mirror button

Pressing it takes you to the

Start Seg button

Allows you to select the first segment to mirror. This setting is automatically updated when a disc is inserted. If
the Fusion sees segment 5 is already on the disc the Start Seg is set to 6.

Start Seg field Shortcuts

See: Common Data Entry Field Shortcuts List
NOTE: A quick method to ensure your disc is readable is to eject and re-insert your mirrored disc after you are
finished mirroring. Then check that the Fusion recognizes the format and the Start Seg field is set to 1 past
the last recorded segment.
This page sets the options for mirroring data from the primary drive onto other media through

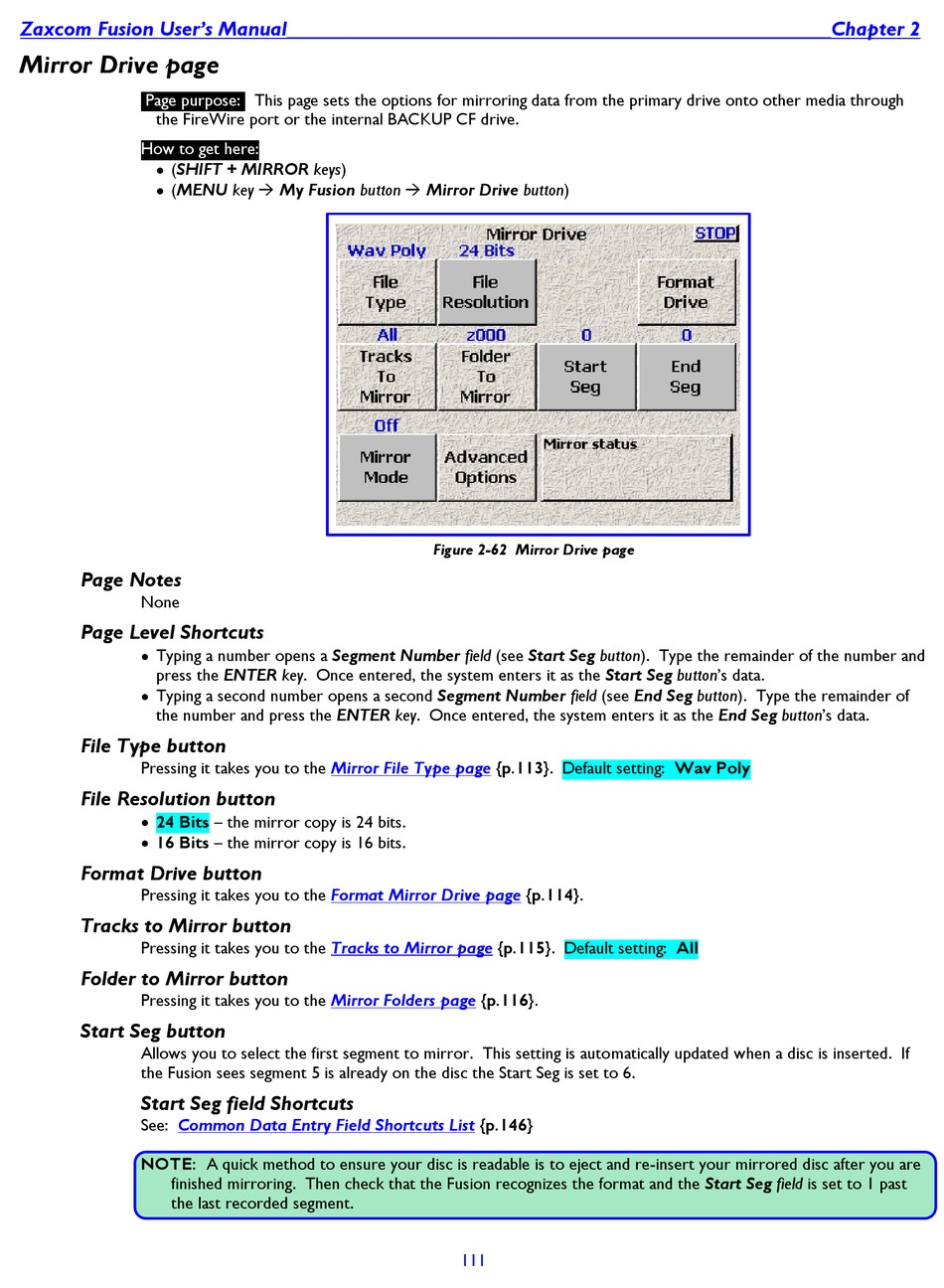

Figure 2-62 Mirror Drive page

Mirror File Type page
Format Mirror Drive page
Tracks to Mirror page
Mirror Folders page
{p.113}. Default setting: Wav Poly
{p.114}.
{p.115}. Default setting: All
{p.116}.
{p.146}
111
