8. Reference 1 connector
Reserved for the future.
9. Wordclock Output connector
Connect an external device requiring Wordclock output here.
10. Serial / RS-422 connector
Connect an external control device, such as the Mix-12 mixer here.
11. Timecode connector
Connect a standard 5-pin LEMO connector here. (See
12. USB port
Connect a Zaxcom approved USB keyboard here.

Right Side Description

1. Analog Outputs 1- 8 (Fusion-12) / Analog Outputs 1 - 6 (Fusion-10)
25-pin connector outputs 8 (or 6) channels of line-level audio. You can select the channels assigned to these
outputs from the
2. Headphone Output
1/4" stereo jack, optimal 100 ohm impedance.
3. Line Inputs 9-12 Connector (Fusion-12) / Camera connector (Fusion-10)
This is a standard 10-pin Hirose connector. (See
Line Input / Camera Connector,
NOTE: For the Fusion-10, the two return monitor feeds are summed to mono.
4. Mic / Line Inputs 1 through 8
Each balanced input is internally padded to handle either mic-level or line-level signals. The signal level is
selected using the
NOTE: Lower headphone impedance results in a higher headphone output level.
5. Battery Ejection Pin
This pin ejects the NP-1 battery from its compartment.
1. 2. 3.
Fusion-12 Right Side

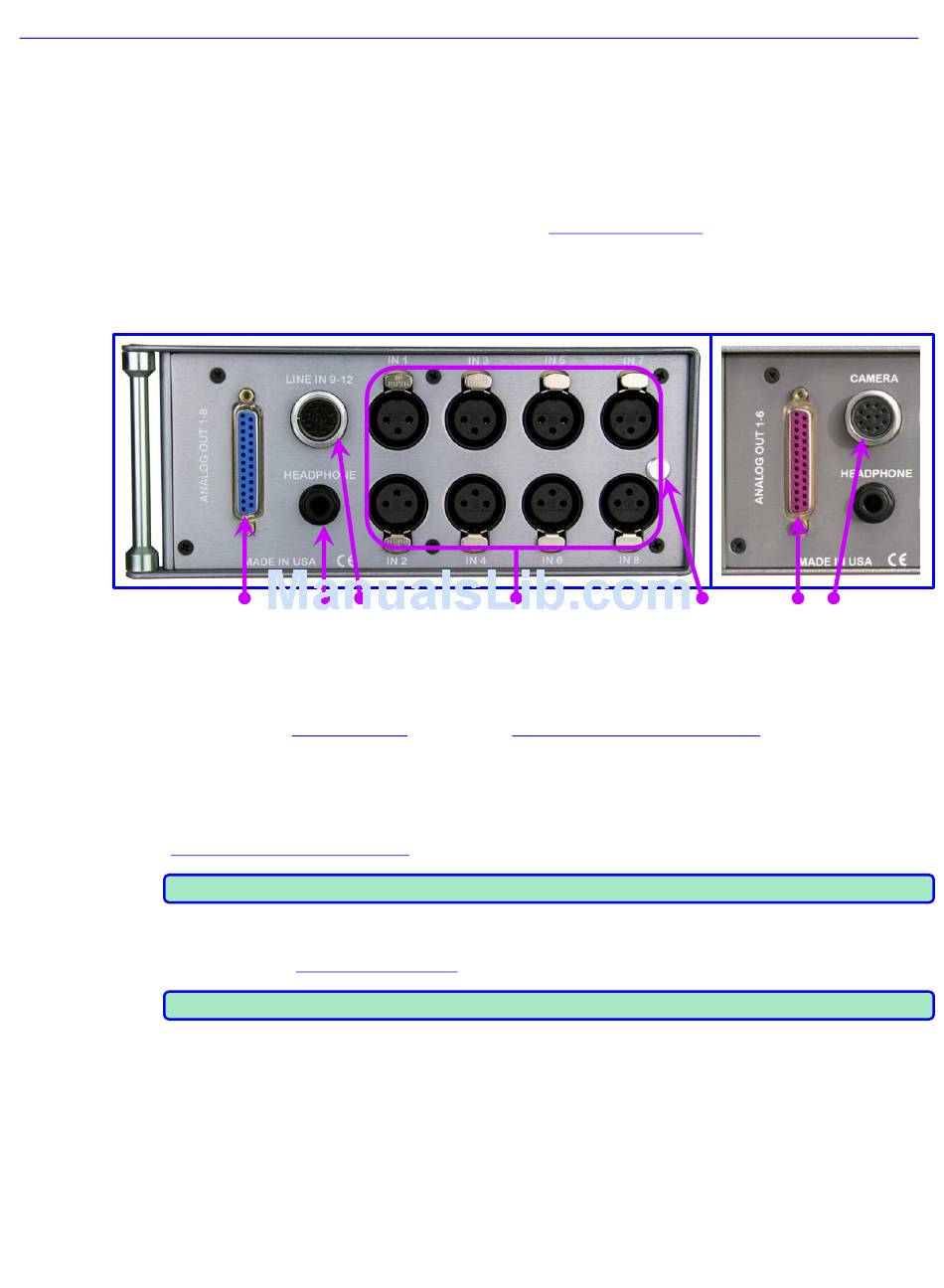

Figure 1-3 Fusion-12 & Fusion-10 Right Sides
My Fusion page {p.104}. (See
Hirose-10, {p.158}.)
Analog Input (#) page
Timecode Connector, {p.159})
4.
Analog Output Connector,
{p.82}.
27
5. 1. 3.
Fusion-10 Right Side Differences
DB-25, {p.158})
