Zaxcom Fusion User's Manual______________________________________________________Chapter 2
Analog/Digital Input Delay page
Page purpose:
How to get here:
Analog
(INPUT key  Adjust Delay button)
(MENU key  Input Configure button  Adjust Delay button)
Digital
(INPUT key  Analog Inputs Toggle button {=Digital}  Adjust Delay button)
(MENU key  Input Configure button  Analog Inputs Toggle button {=Digital}  Adjust Delay button)
Page Notes
See – Effects Package and More
** Coming Soon **
Page Level Shortcuts
0 – 9 keys – opens the data entry field for the currently selected (highlighted) button (see Enter Delay button
Channel buttons
Unit = msec
Unit = samples – Valid range based on Sampling-rate
More Delay button
Increments the selected parameter by its step value.
Less Delay button
Decrements the selected parameter by its step value.
Enter Delay button
Directly enter the value and press the ENTER key.
Enter Delay button Shortcuts
See: Common Data Entry Field Shortcuts List
This page allows you to set a digital delay for any of the analog or digital inputs.

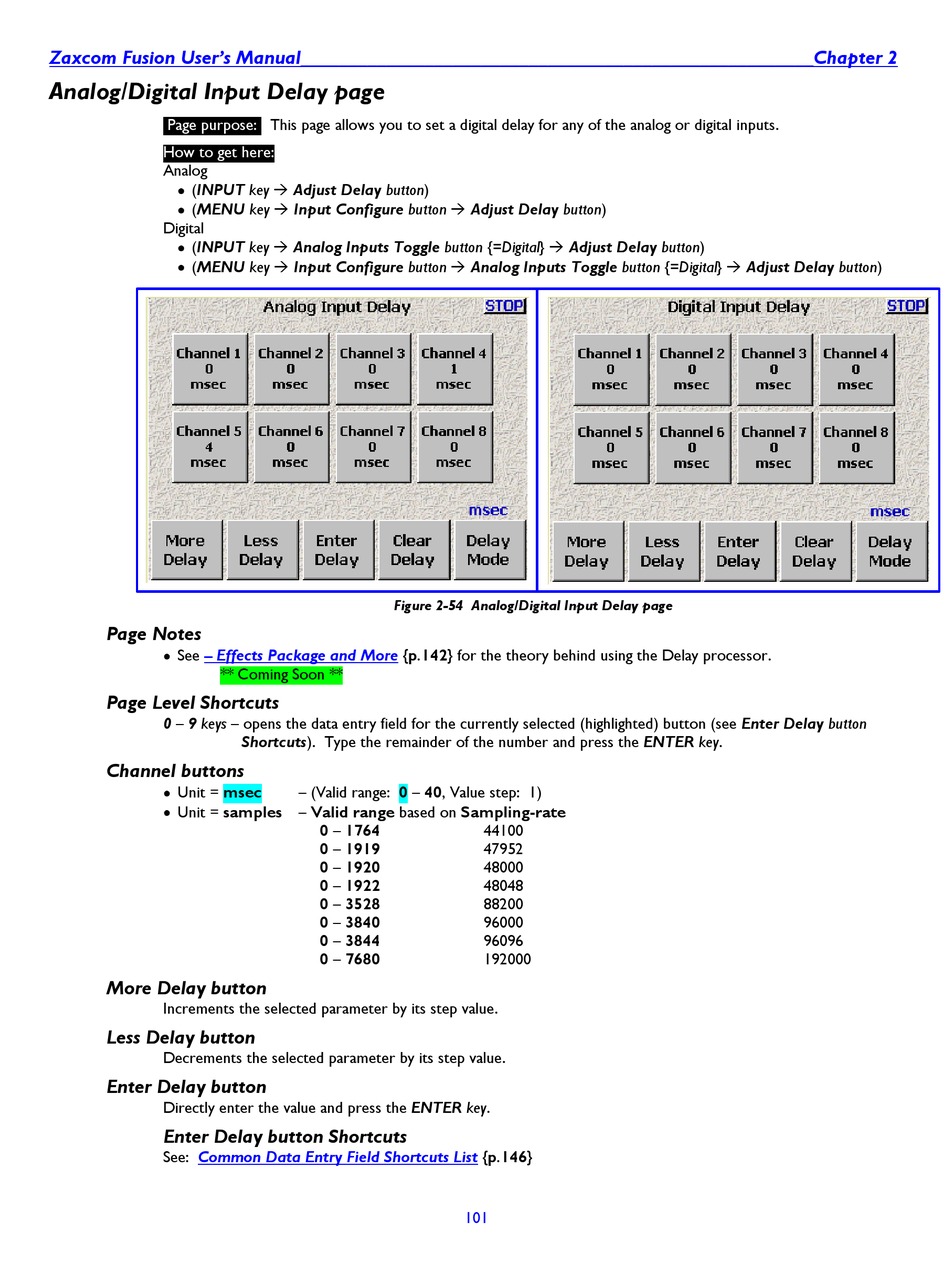

Figure 2-54 Analog/Digital Input Delay page
{p.142} for the theory behind using the Delay processor.
Shortcuts). Type the remainder of the number and press the ENTER key.
– (Valid range: 0 – 40, Value step: 1)
0 – 1764
0 – 1919
0 – 1920
0 – 1922
0 – 3528
0 – 3840
0 – 3844
0 – 7680
44100
47952
48000
48048
88200
96000
96096
192000
{p.146}
101
