Analog Input (#) page

Page purpose:
How to get here:
(INPUT key  Channel button)
(MENU key  Input Configure button  Channel button)

Page Notes

See – Effects Package and More

Page Level Shortcuts

1 – 8 keys – the same as clicking on analog channel buttons 1 – 8.
D key
E key
B key

Mic/Line Level button

Toggles this channel‟s level between LINE LEVEL and
48V Off/On button
Phantom power works in cooperation with the Mic/Line Level settings. If you have a channel set to Line-Level,
you can‟t turn On that channel‟s phantom power.
NOTE: If you change a channel from microphone input (Mic) to line input (Line), the phantom power for that
channel is turned „OFF‟ and the
Setting Phantom Power
To turn „ON‟ 48V phantom power, select the '48V Off‟ button. When phantom power is enabled,'48V Off‟
changes to
Delay button
Enter a value for the amount of delay for this input.
Unit = msec
Unit = samples – (Valid range: 0 – 1920, Value step: 1)
Delay button Shortcuts
See: Common Data Entry Field Shortcuts List
This page maintains several parameters for each analog input channel.
** Coming Soon **
– goes to the Analog Input (#) – Dynamics page
– goes to the Analog Input (#) – EQ page
as the EQ key on the Mix-12.
– goes to the Analog Input (#) – BUS page
same as the BUS key on the Mix-12.
„48V On„.
– (Valid range: 0 – 40, Value step: 1)

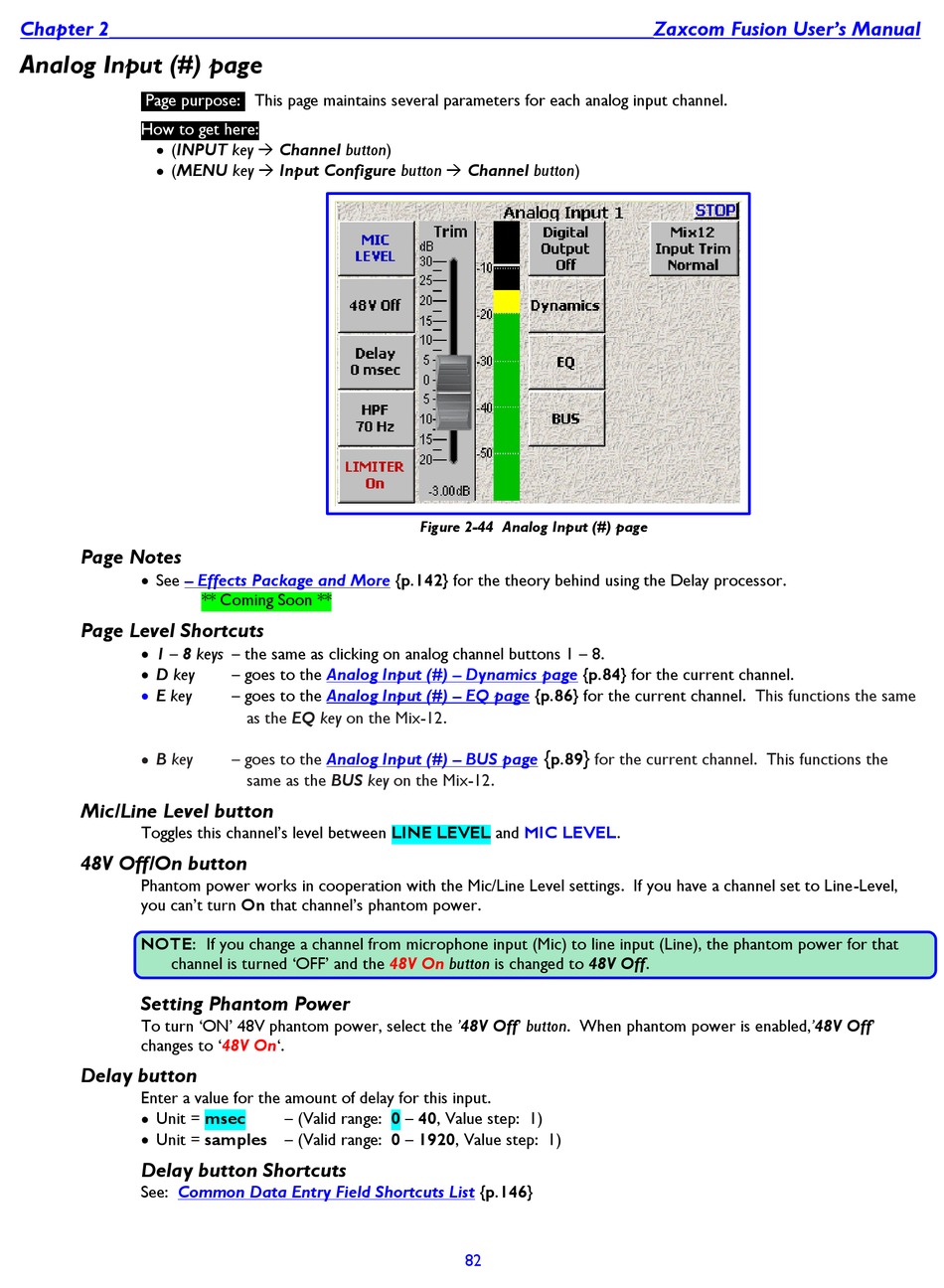

Figure 2-44 Analog Input (#) page

{p.142} for the theory behind using the Delay processor.
{p.86} for the current channel.
{
p.89
MIC LEVEL.
48V On button is changed to 48V Off.
{p.146}
82
{p.84} for the current channel.
This functions the same
}
for the current channel. This functions the
