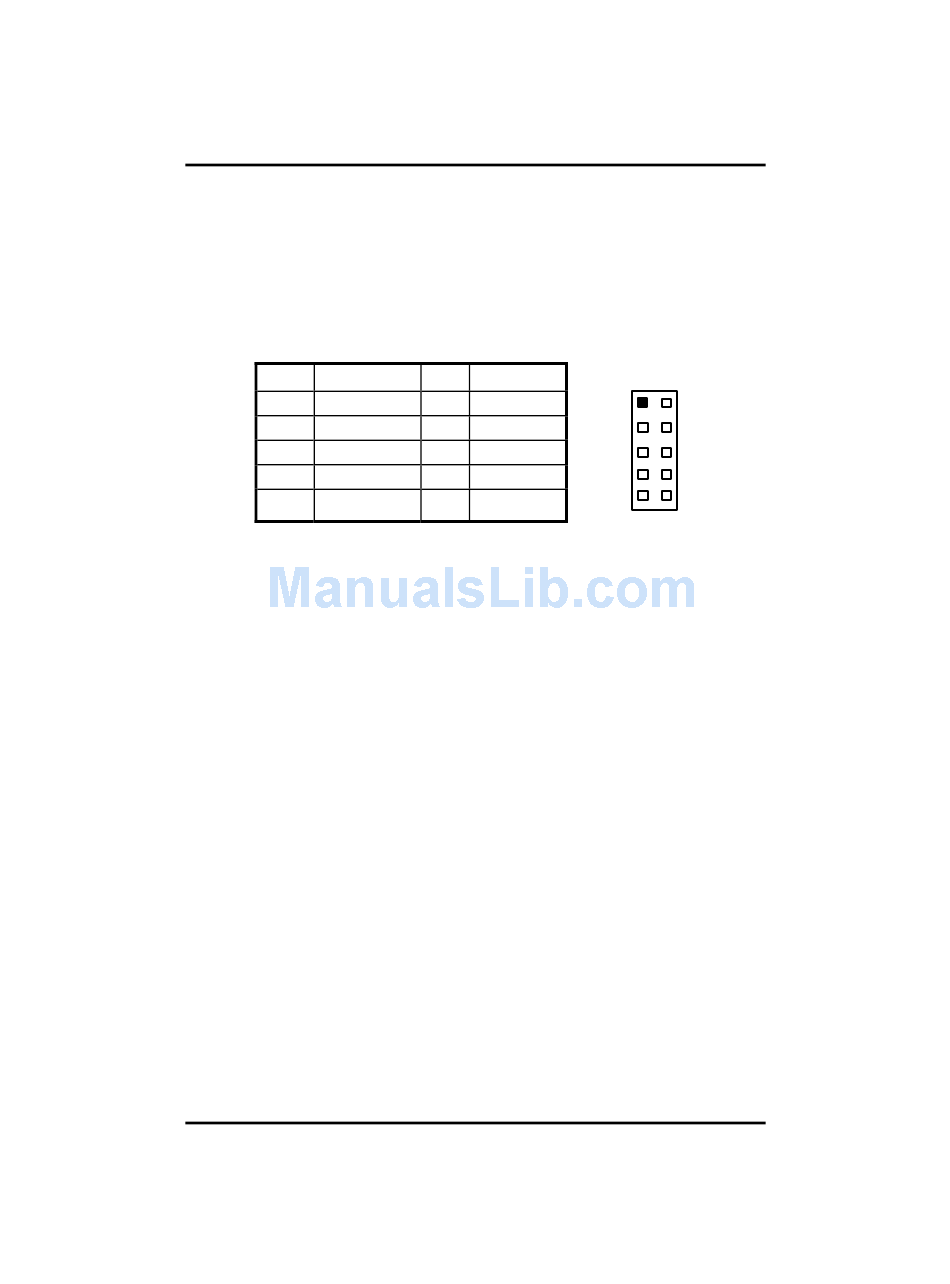

3.14 Audio Connector

The SBC82810 supports audio interface. CN3 is a 10pin-
header connector commonly used for the audio.
Pin Signal
MIC-IN
1
3 Line In L
Line In R
5
7 Audio Out L
Audio Out R
9
3.15 Compact Flash™ Socket (CN26)
The SBC82810 Series is equipped with a Compact Flash disk
type-II socket on the solder side and it supports the IDE
interface Compact Flash disk card with DMA mode supported.
The socket itself is especially designed to prevent any
incorrect installation of the Compact Flash disk card.
When installing or removing the Compact Flash disk card,
please make sure that the system power is off.
The Compact Flash disk card is defaulted as the C: or D: disk
drive in your PC system.
Hardware Description
®
M All-in-One Half-Size Board User's Manual
Pin Signal
GND
2
4 GND
GND
6
8 GND
GND
10
2
1
3 4
6
5
8
7
9 10
