SBC82810 Pentium M All-in-One Half-Size Board User's Manual

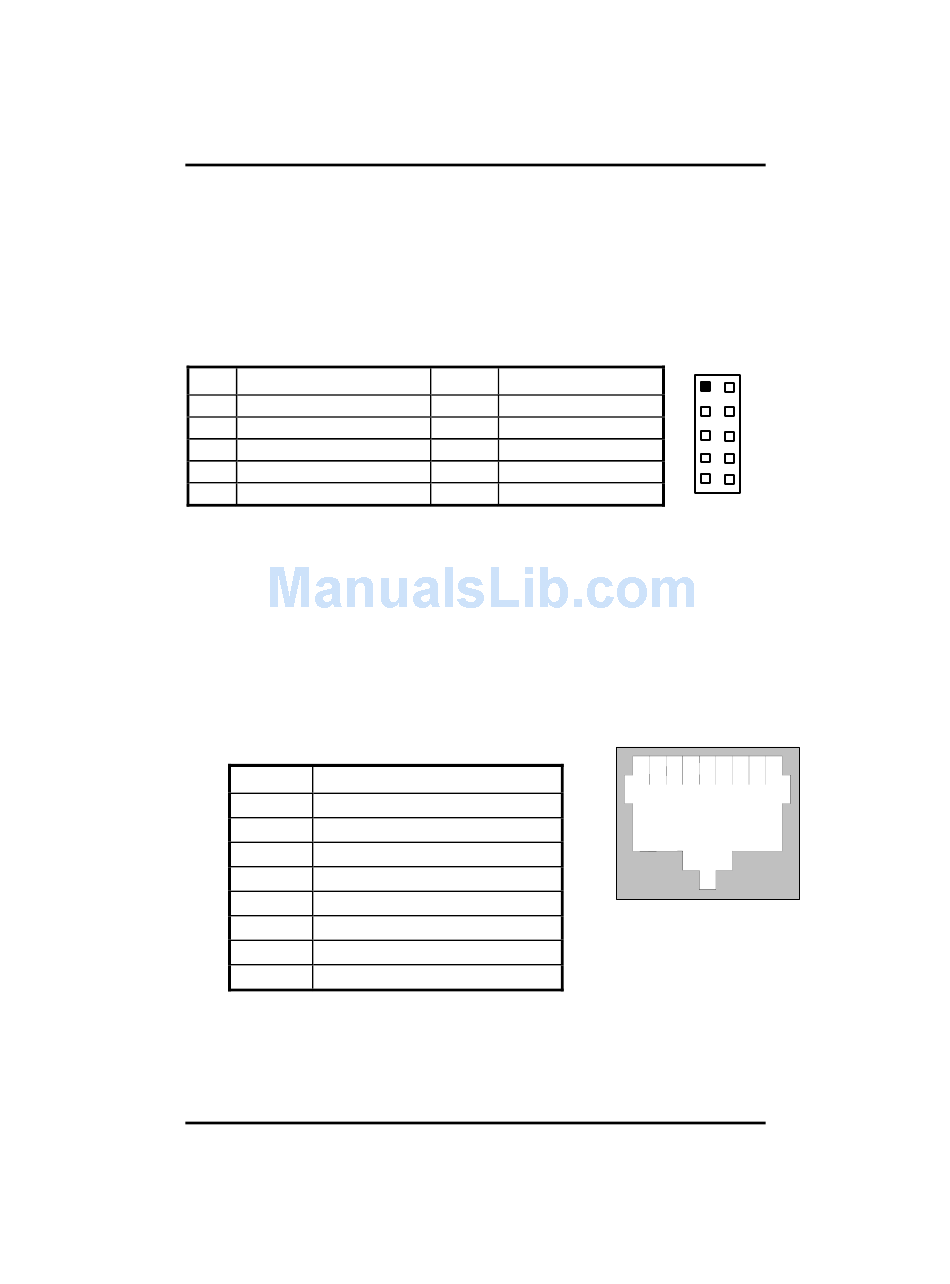

3.12 USB Connector

The SBC82810 Series features four Universal Serial Bus (USB)
connectors as USB 2.0 compliant (480Mbps) that can adapt
any USB peripherals, such as monitor, keyboard and mouse
etc. The SBC82810 Series has two box-header connectors
(CN19/21).
CN19/CN21: USB Connector Pin Assignment
Pin Description
1
VCC
3 D0-
5 D0+
7 Ground (GND)
9 Ground (GND)

3.13 Ethernet RJ-45 Connector

The RJ-45 connector is used for Ethernet. To connect the
SBC82810 to a 100/10 Base-T hub, just plug one end of the
cable into the CN7, CN10 and connect the other end of the
cable to a 1000/100/10-Base-T hub.
CN7/CN10: RJ-45 Connector Pin
Assignment
Pin
TX+ (Data transmission positive
1
2 TX- (Data transmission negative)
Rx+(Data reception positive)
3
4 RJ45 termination
RJ45 termination
5
6 Rx- (Data reception negative)
RJ45 termination
7
8 RJ45 termination
24
Pin Description
2
VCC
4 D1-
6 D1+
8 Ground (GND)
10 Ground (GND)
Signal
Hardware Description
2
1
3 4
6
5
8
7
9
10
1 2 3 4 5 6 7 8
RJ-45
