SBC82810 Pentium M All-in-One Half-Size Board User's Manual

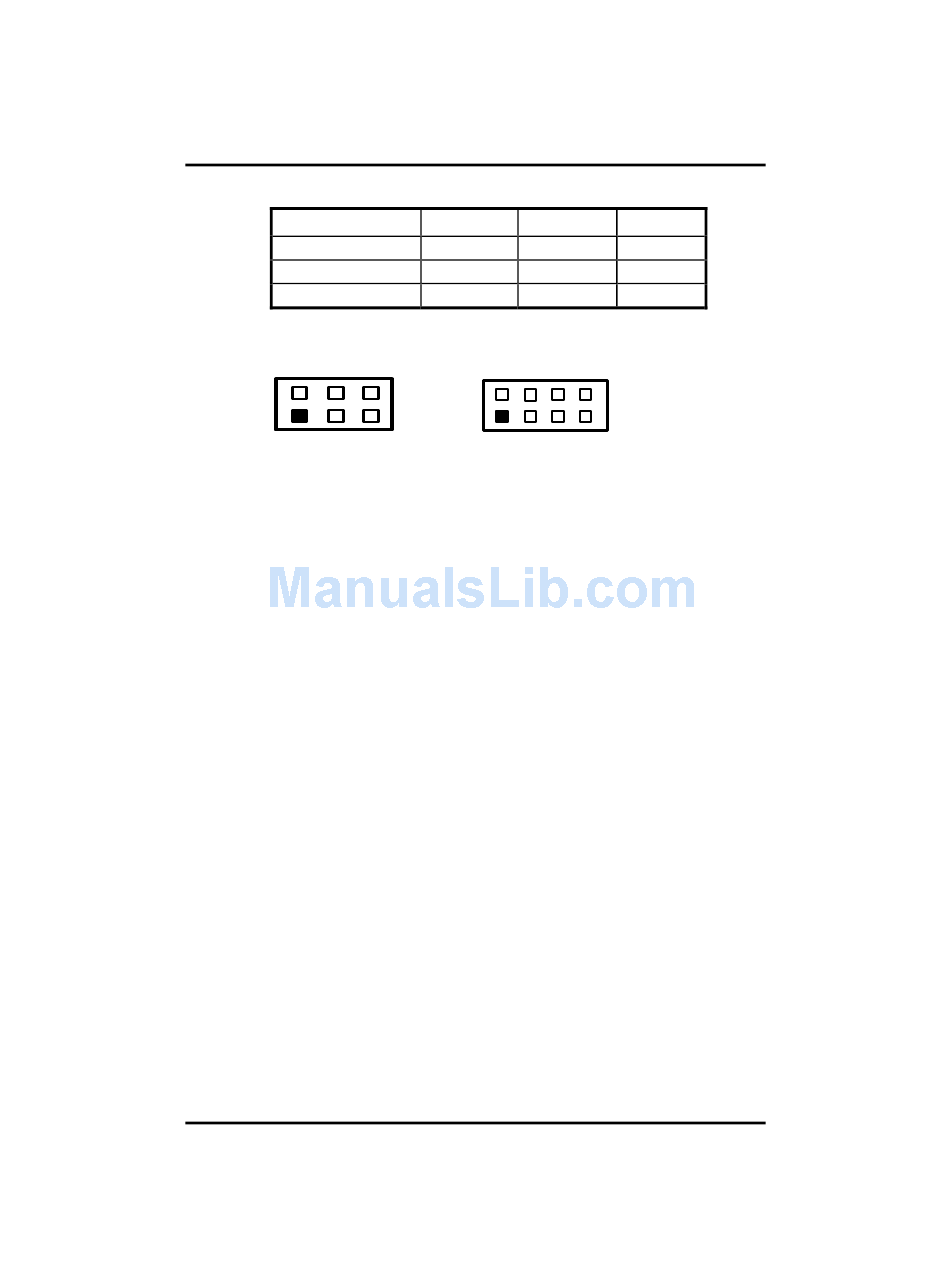

2.3.6 COM2 Mode Select for Type: JP6; JP7; JP8

COM2
RS-232 (default)
RS-422
RS-485
JP6/JP7
2 4 6
1 3 5
10
JP6 JP7
3-5, 4-6 3-5, 4-6
1-3, 2-4 1-3, 2-4
1-3, 2-4 1-3, 2-4
JP8
2 4 6 8
1 3 5 7
Jumpers and Connectors
JP8
1-2
3-4,7-8
5-6, 7-8
