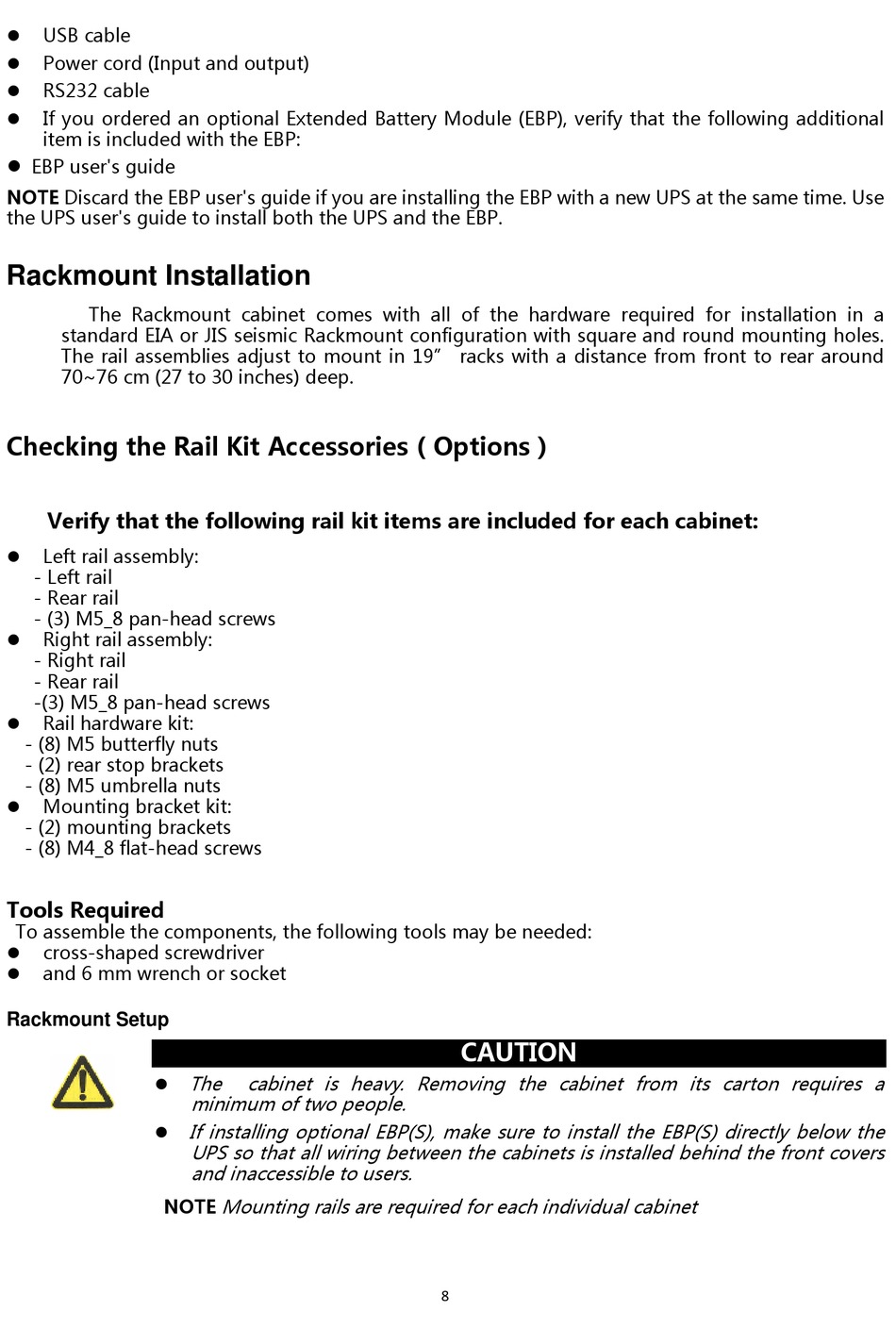

USB cable

Power cord (Input and output)

RS232 cable

If you ordered an optional Extended Battery Module (EBP), verify that the following additional

item is included with the EBP:
●
EBP user's guide
NOTE Discard the EBP user's guide if you are installing the EBP with a new UPS at the same time. Use
the UPS user's guide to install both the UPS and the EBP.
R ackmount Installation
0 T
The Rackmount cabinet comes with all of the hardware required for installation in a
standard EIA or JIS seismic Rackmount configuration with square and round mounting holes.
The rail assemblies adjust to mount in 19" racks with a distance from front to rear around
70~76 cm (27 to 30 inches) deep.
Checking the Rail Kit Accessories（Options）
Verify that the following rail kit items are included for each cabinet:
Left rail assembly:

- Left rail
- Rear rail
- (3) M5_8 pan-head screws
Right rail assembly:

- Right rail
- Rear rail
-(3) M5_8 pan-head screws
Rail hardware kit:

- (8) M5 butterfly nuts
- (2) rear stop brackets
- (8) M5 umbrella nuts
Mounting bracket kit:

- (2) mounting brackets
- (8) M4_8 flat-head screws

Tools Required

To assemble the components, the following tools may be needed:
cross-shaped screwdriver

and 6 mm wrench or socket


Rackmount Setup



NOTE
The cabinet is heavy. Removing the cabinet from its carton requires a
minimum of two people.
If installing optional EBP(S), make sure to install the EBP(S) directly below the
UPS so that all wiring between the cabinets is installed behind the front covers
and inaccessible to users.
Mounting rails are required for each individual cabinet
CAUTION
8
