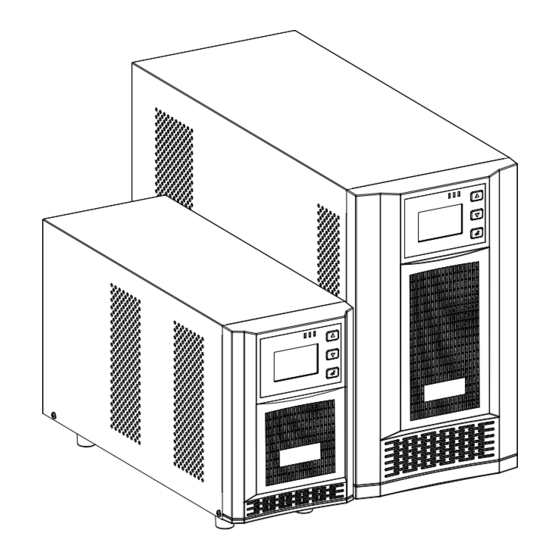

- Page 1 User Manual Line Interactive Sinewave-UPS 1K/2K/3K VA Uninterruptible Power Supply System ...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ....................- 2 - Important Safety Warning ................ - 3 - 1-1. Transportation ....................... - 3 - 1-2. Preparation ......................- 3 - 1-3. Installation ......................- 3 - ... -
Page 3: Important Safety Warning
Important Safety Warning Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully 1-1. - Page 4 wiring outlet), components inside the UPS system are still connected to the battery and electrically live and dangerous. Before carrying out any kind of service and/or maintenance, disconnect the batteries and • verify that no current is present and no hazardous voltage exists in the terminals of high capability capacitor such as BUS-capacitors.
-
Page 5: Installation And Setup
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. 2-1. Rear Panel Vie 1K IEC Type 2/3K IEC Type RS232,USB RS232... -
Page 6: Setup The Ups
Battery connection Step 1 Step 2 Step 3 1k 2/3k Remove front panel. Re-connect battery wires. Fix front panel 2-3. Setup The UPS Step 1: UPS input connection Plug the UPS into a two-pole, three-wire, grounded receptacle only. -
Page 7: Battery Replacement
Step 3: Communication connection Communication ports: USB port RS-232port Intelligent slot To allow for unattended UPS shutdown/start-up and status monitoring, connect the communication cable one end to the USB/RS-232 port and the other to the communication port of your PC. - Page 8 Step 4 Step 5 Step 6 Remove the top cover of After replacing the batteries, put Put the front panel back to battery box and replace the the battery box back to original the unit. inside batteries. location Re-connect the battery wires, and screw the front panel tightly.
-
Page 9: Battery Kit Assembly (Option)
Step 4 Step 5 Step 6 After replacing the batteries, Put the front panel back to Remove the cover of battery put the battery box back to the unit. box and replace the inside original location Re-connect the batteries battery wires,and screw it tightly. - Page 10 4/6-battery kit Step 1: Unscrew the battery bracket Step 2: Connect all battery terminals and and prepare new batteries put batteries into the bracket by following below chart. Tapes ‐ 10 ‐ ...
-
Page 11: Operations
Operations 3-1. Button Operation Function Button Inquiry Button ON/OFF Button Button Function description ON/OFF Button Press and hold this key for more than 2 seconds to turn on the UPS or to turn off the UPS. Press and hold this key for more than 2 seconds in Line mode or Function Button ... -
Page 12: Lcd Panel
On UPS is f fault. Ove erload over r time , in verter faul lt , over temperatu fault etc. NOTE Wh hen power on or start tup , these e indicators s will turn o on and off s sequentiall NOTE On... - Page 13 Display the numerical value of the active power(WATT) and apparent power(VA) of the load. For example, as the following graphics shown: the WATT of Load the load is 1.1kw, VA is 1.9kVA (when disconnect load, it is a normal phenomenon to show a small numerical value of WATT and VA).
-
Page 14: Operating Modes
3-5. Operating modes When input AC mains is within Line Normal input range, UPS will work in line mode, charge the battery and Mode protect the load. When AC is low , the UPS works in Line Boost line boost mode, charge the battery and protect the load.There mode are two boost stages. - Page 15 When input AC mains is high , Line buck the UPS works in line buck mode, charge the battery and protect the mode load. When input AC mains is output of line range, the UPS works on battery mode. The green LED is on The yellow warning LED blink once Battery 4 seconds and buzzer beep and if...
- Page 16 When input AC mains is high , Line buck the UPS works in line buck mode, charge the battery and protect the mode load. When input AC mains is output of line range, the UPS works on battery mode. The green LED is on Battery The yellow warning LED blink once Mode...
-
Page 17: Faults Reference Code
When UPS is plugged into line and not turn on , the UPS will work in Standby standby mode to charge the Mode battery. No indicator displays on this mode. 3-6. Faults Reference Code Fault occurring mode – line Fault occurring mode – battery Fault events mode mode... -
Page 18: Troubleshooting
Troubleshooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy Check if input power cord The AC input power is not firmly connected to the connected well. No indication and alarm even mains. -
Page 19: Storage And Maintenance
Storage and Maintenance Operation The UPS system contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer. » Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material. -
Page 20: Specifications
Specifications MODEL 1 K 2K 3K CAPACITY 1000VA/ 800 W 2000 VA/ 1600W 3000 VA/ 2400 W INPUT Acceptable Voltage Range 161-276 VAC Frequency Range 50/60Hz (auto sensing) OUTPUT Voltage Regulation (AC Mode) 208/220/230/240 VAC Voltage Regulation (Batt. Mode) ±3%(before battery alarm) Frequency Range (Batt.
