Summary of Contents for KStar YDC9300-B

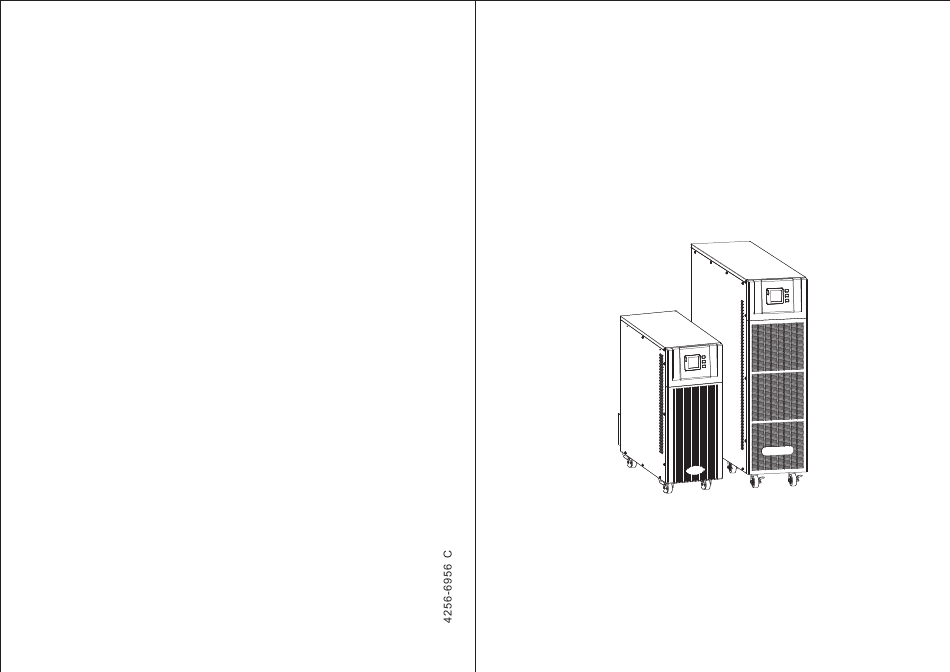

  • Page 1 Uninterruptible Power Systems 10/15/20kVA Operation Manual...
  • Page 2 All rights reserved. The information in this document is subject to change without notice. Publish statement Thank you for purchasing this series UPS. This series UPS is an intelligent, three phase in single phase out, high frequency online UPS designed by our R&D team who is with years of designing experiences on UPS. With excellent electrical performance, perfect intelligent monitoring and network functions, smart appearance, complying with EMC and safety standards, The UPS meets the world’s advanced level.

  • Page 3: Table Of Contents

    Contents 1．Safety ................................2 1.1 Safety notes ............................2 1.2 Symbols used in this guide ......................2 2．Main Features ............................. 3 2.1 Summarization ........................... 3 2.2 Functions and Features ........................3 3．Installation ..............................4 3.1 Unpack checking ..........................4 3.2 Cabinet Outlook ..........................4 3.3 LCD control panel ..........................

  • Page 4: 1．Safety

    1．Safety Important safety instructions - Save these instructions There exists dangerous voltage and high temperature inside the UPS. During the installation, operation and maintenance, please abide the local safety instructions and relative laws, otherwise it will result in personnel injury or equipment damage. Safety instructions in this manual act as a supplementary for the local safety instructions.

  • Page 5: 2．Main Features

    2．Main Features 2.1 Summarization This series UPS is a kind of three-in- single -out high frequency online UPS. The UPS can solve most of the power supply problems, such as blackout, over-voltage, under-voltage, voltage sudden drop, oscillating of decreasing extent, high voltage pulse, voltage fluctuation, surge, inrush current, harmonic distortion (THD), noise interference, frequency fluctuation, etc..

  • Page 6: 3．Installation

    3．Installation 3.1 Unpack checking 1. Don’t lean the UPS when moving it out from the packaging 2. Check the appearance to see if the UPS is damaged or not during the transportation, do not switch on the UPS if any damage found. Please contact the dealer right away. 3.
  • Page 7 10-20kVA Rear View (Dual input, terminal block without cover) (1) LCD panel (2) RS232 port (3) Input Switch (4) USB port (6) External maintenance switch signal / (5) Dry contact port Maintenance switch cover plate (7) Maintenance switch (8) Output Switch (9) Terminal block for Input, output, battery &...
  • Page 8 10kVA Rear View 15-20kVA Rear View (terminal block without cover) (terminal block without cover) 10kVA Rear View 15-20kVA Rear View (Dual input, terminal block without cover) (Dual input, terminal block without cover) (1) LCD panel (2) RS232 port (3) Input Switch (4) USB port (6) External maintenance switch signal / (5) Dry contact port...

  • Page 9: Lcd Control Panel

    (11) Parallel port 1 (12) Parallel port 2 (13) Intelligent Slot 1 (SNMP card) (14) Intelligent Slot 2 (SNMP card/ Relay card) (15) RS485 port (16) REPO port (17) Power Switch (18) Bypass Switch (Dual input) 3.3 LCD control panel LCD control panel introduction （1）LED（from top to bottom: “alarm”, “bypass”, “battery”, “inverter”）...

  • Page 10: External Protective Devices

    ◆The highest altitude that UPS may work normally with full load is 1500 meters. The load capacity should be reduced when this UPS is installed in place whose altitude is higher than 1500 meters, shown as the following table: (Load coefficient equals max load in high altitude place divided by nominal power of the UPS) Altitude(m) 1500 2000...

  • Page 11: Power Cable Connect

    CAUTION! Protective earth cable: Connect each cabinet to the main ground system. For Grounding connection, follow the shortest route possible. WARNING! Failure to follow adequate earthing procedures may result in electromagnetic interference or in hazards involving electric shock and fire 3.7 Power cable connect Once the equipment has been finally positioned and secured, connect the power cables as described in the following procedure.

  • Page 12: Battery Connection

    Warning！ In the case of “Dual input” operation, make sure the copper wire between each input lines have been removed. The AC input and the AC bypass supplies must be referenced to the same neutral point. Choose appropriate power cable. (Refer to the table above) and pay attention to the diameter of the connection terminal of the cable that should be greater than or equal to that of the connection poles;...
  • Page 13 External battery connections for long-run units. Note： The BAT+ of the UPS connect poles is connected to the anode of the positive battery, the BAT-N is connected to the cathode of the positive battery and the anode of the negative battery, the BAT- is connected to the cathode of the negative battery. Factory setting of the long-run unit is battery quantity---16pcs, battery capacity---12V40AH (charger current 6A).

  • Page 14: Ups Parallel Installation

    Note： The BAT+ of the UPS connect poles is connected to the anode of the positive battery, the BAT-N is connected to the cathode of the positive battery and the anode of the negative battery, the BAT- is connected to the cathode of the negative battery. Factory setting of the long-run unit is battery quantity---32pcs, battery capacity---12V40AH (charger current 6A).

  • Page 15: Computer Access

    3.9.2 Parallel cable installation Shielded and double insulated control cables available must be interconnected in a ring configuration between UPS units as shown below. The ring configuration ensures high reliability of the control. 3.9.3 Requirement for the parallel system A group of paralleled UPS behaves as one large UPS system but with the advantage of presenting higher reliability.
  • Page 16 ◆A window of “Software Parameter Setting” comes out as below, COM choose according to the UPS , baud rate choose 9600, protocol choose “HIP”, then save this setting. ◆On the main page of Muser4000, click the button of “Append”, then goes to a window of “Append equipment”.

  • Page 17: 4．Operation

    4．Operation 4.1 Operation Modes The UPS is a double-conversion on-line UPS that may operate in the following alternative modes： ◆Normal mode The rectifier/charger derives power from the AC Mains and supplies DC power to the inverter while floating and boosting charge the battery simultaneously. Then, the inverter converts the DC power to AC and supplies to the load.

  • Page 18: Turn On/Off Ups

    ◆ECO Mode When the UPS is at AC Mode and the requirement to the load is not critical, the UPS can be set at ECO mode in order to increase the efficiency of the power supplied. At ECO mode, the UPS works at Line-interactive mode, so the UPS will transfer to bypass supply.
  • Page 19 ◆ Turn ON Bypass breaker(D ual input version ). ◆ Turn ON Input breaker. If the Rectifier input is within voltage range, the rectifier will start up in 30 seconds then the inverter will start up after then. ◆ Turn ON UPS output switch If the rectifier fails at startup, the bypass LED will light up.
  • Page 20 ◆ Switch OFF BATTERY breaker; ◆ Switch OFF MAINS breaker; ◆ Switch OFF BYPASS breaker(D ual input version ); ◆ Switch OFF OUTPUT breaker; At this time the bypass source will supply to the load through the MAINTENANCE breaker . Switch to normal operation (from mechanical bypass) CAUTION! Never attempt to switch the UPS back to normal operation until you...
  • Page 21 When battery normal, rectifier starts operation, 30s later, inverter starts and operates and battery LED on CAUTION! Please press the close start button after 30 seconds until closing the battery switch. 4.2.5 Shut down procedure CAUTION! This procedure should be followed to completely shut down the UPS and the LOAD.
  • Page 22 4.2.6 Parallel setting ◆Connect the UPS with computer. Power on the UPS. ◆ Open Muser4000 software, after connecting with the UPS successfully, click “System”->“User Set” ◆Click “Set” at “User Set” window; ◆At the window of “Data Set”, click “Work Mode”,, choose “Parallel” for the value, then click “Set”...
  • Page 23 ◆At the window of “Data Set”, click “Ups ID”, write a value for the parallel UPS ID at the right side, such as “1”, then click “Set” as shown in below picture. If the UPS sounds a “beep”, that means the setting is correct. CAUTION! After changing the parallel system ID, the connection between Muser4000 and equipment might be interrupted.

  • Page 24: The Lcd Display

    CAUTION! Parallel cable cannot be connected when setting the parallel parameters. ◆After setting the UPS needed to be paralleled, power off all the UPS. Connect all the UPS according to “parallel cable installation”, and then power on the UPS . 4.3 The LCD Display Overview of the operating panel of the UPS (1)LED indicator (2)LCD display (3)Scroll button: enter to next item (4)Off button (5)On button...
  • Page 25 1) When the UPS is connecting with the Utility or Battery at cold start mode, it shows as drawing below: Module ID Status Operational Status and mode (When the UPS at single mode, it shows “NOR” or “ECO”, but If the UPS at parallel mode, it shows “PAL”...
  • Page 26 6. Bat - (Negative) 7. Backup time 8. Output Voltage/Frequency 9. Load Capacity 11. Software version & model 10. Temperature (battery/Internal and ambient temperature)

  • Page 27: Parameters Setting

    12. Alarm Code If has battery charging, above 2-13 interface windows will also display the charging status at the same time as below: Charging Status Boost Floating 3) Pressing “scroll” button, you may circulate all messages from the first one to the last one then returns back to the first one and vice versa.
  • Page 28 4.4.1 Mode setting Mode setting (Note: Inside the broken-line is the flashing part.) After entering the setting menu, its mode setting defaulted, and the mode setting line flashing as in above picture. ①Use button “” to choose different mode. There are 3 different modes for setting: ECO, PAL, NOR.
  • Page 29 4.4.3 Frequency setting Frequency setting (Note: Inside the broken-line is the flashing part.) In the output voltage setting press “ON” or in battery capacity setting press “OFF”, it goes to the frequency setting. The frequency line flashes as in above picture. ①Use button “” to choose the different frequency.
  • Page 30 4.4.5 Battery quantity setting Battery quantity setting (Note: Inside the broken-line is the flashing part.) In the battery capacity setting press “ON” or in bypass voltage upper limit setting press “OFF”, it goes to the battery quantity setting. The battery quantity line flashes as in above picture. ①Use button “”...
  • Page 31 4.4.7 Bypass voltage lower limit setting Bypass voltage lower limit setting (Note: Inside the broken-line is the flashing part.) In the bypass voltage upper limit setting press “ON” or in parallel ID setting press “OFF”, it goes to the bypass lower limit setting. The bypass lower limit line flashes as in above picture. (“-” for negative, positive does not have any symbol.) ①Use button “”...
  • Page 32 4.4.9 Periodical battery self-test Setting Periodical battery self-test setting (note: the part in dashed box flashes) In the buzzer setting press “ON” or in parallel ID setting press “OFF”, it goes to the battery self-test setting. In the meantime the setting state flashes as above picture shows (Note: ON 1- the battery self-test function is enabled, UPS will do self-test 10 seconds every 30 days;...
  • Page 33 4.4.11 Device address setting Device address setting(Note: the information in the red box will be flashing) Press “ON” under the battery temperature compensation sensor switch setting or press “OFF” under parallel ID set- ting, goes to the device address setting. The setting state flashes as above picture shows (Note: device address is1~15, it is the MODBUS device address at RS232 &...
  • Page 34 4.4.13 Parallel quantity setting Parallel quantity setting (Note: Inside the broken-line is the flashing part.) When under the parallel ID setting press “ON” or when under parallel redundancy quantity setting press “OFF”, it goes to the parallel quantity setting. The parallel quantity flashes as in above picture.

  • Page 35: Parallel System Commissioning

    4.5 Parallel system commissioning Parallel system should be commissioning when the stand-alone are all intact. Take 4 units in parallel for example. 1) Confirm the input/output wires connection and input phase sequence are correct; switch off the battery breaker, and measure the +/- bat voltage of all battery group are normal. 2) Connect the parallel cable, it should be formed loop connection.

  • Page 36: Display Messages/Troubleshooting

    4.6 Display Messages/Troubleshooting This section lists the event and alarm messages that the UPS might display. The messages are listed in alphabetical order. This section is listed with each alarm message to help you troubleshoot problems. Display messages Operational Status and Mode(s) Code Information (ST)

  • Page 37: Options

    DC Bus over voltage Beep continuously Fault LED lit DC Bus below voltage Beep continuously Fault LED lit DC bus unbalance Beep continuously Fault LED lit Soft start failed Beep continuously Fault LED lit Rectifier Over Temperature Twice per second Fault LED lit Inverter Over temperature Twice per second...
  • Page 38 NetAgent II-3Ports supports the Modem Dial-in (PPP) function to enable the remote control via the internet when the network is unavailable. In addition to the features of a standard NetAgent Mini, NetAgent II has the option to add NetFeeler Lite to detect temperature, humidity, smoke and security sensors. Thus, making NetAgent II a versatile management tool.

  • Page 39: Appendix 1 Specifications

    Appendix 1 Specifications Model 10k (S/H) 15k (S/H) 20k (S/H) 10kVA 15kVA 20kVA Capacity 10kW 15kW 20kW 380/400/415Vac,(3Ph+N+PE) Phase 220/230/240Vac,(L+N+PE) 380/400/415Vac Rated Voltage 220/230/240Vac 208~478Vac Voltage Range 120~276Vac Frequency Range 40-70Hz Power Factor ≥0.99 Input Current THDi ≤3%(100% non linear load) Max.

  • Page 40: Appendix 2 Problems And Solution

    Self-diagnostics Upon Power On and Software Control EPO(optional) Shut down UPS immediately Battery Advanced Battery Management Noise Suppression Complies with EN62040-2 Alarms Audible & Visual Line Failure, Battery Low, Overload, System Fault Line Mode, Bypass Mode, Battery Low, Battery Bad, Status LED &...

  • Page 41: Appendix 3 Usb Communication Port Definition

    Buzzer beeps every 0.5 seconds and LCD Overload Remove some load display “output overload” Buzzer long beeps, LCD The UPS output is in short Make sure the load is not in short display “29”fault code circuit circuit, and then restart the UPS. The UPS is set to ECO Set the UPS working mode to UPS The UPS only works on...

  • Page 42: Appendix 4 Rs232 Communication Port Definition

    Appendix 4 RS232 communication port definition Definition of Male port ： Connection between PC RS232 port and UPS RS232 port PC RS232 port UPS RS232 port Pin 2 Pin 2 UPS send, PC receive Pin 3 Pin 3 PC send, UPS receive Pin 5 Pin 5 ground...

  • Page 43: Appendix 5 Rs485 Communication Port Definition

    Appendix 5 RS485 communication port definition Definition of port ： Connection between the Device’s RS485 port and UPS RS485 port. device(RJ45) UPS(RJ45) Description Pin 1/5 Pin 1/5 485+ “A” Pin 2/4 Pin 2/4 485 - “B” Pin7 Pin7 +12Vdc Pin8 Pin8 Available function of RS485 ◆...

  • Page 44: Appendix 6 Bat_T Communication Port Definition

    Appendix 6 BAT_T communication port definition Definition of port ： Connection between the Temperature senator RJ45 port and UPS RJ45 port. device(RJ45) UPS(RJ45) Description Pin 1/5 Pin 1/5 485+ “A” Pin 2/4 Pin 2/4 485 - “B” Pin7 Pin7 +12Vdc Pin8 Pin8 Available function of BAT_T...

  • Page 45: Appendix 8 Repo Instruction

    Appendix 8 REPO instruction Definition of port ： Connection diagram： Connection between the button and UPS REPO port. Button UPS REPO Description Pin 1 Pin 1 Pin 2 Pin 2 ◆A remote emergency stop switch (Dry contact signal and “normally open” - not provided) can be installed in a remote location and connection through simple wires to the REPO connector.
