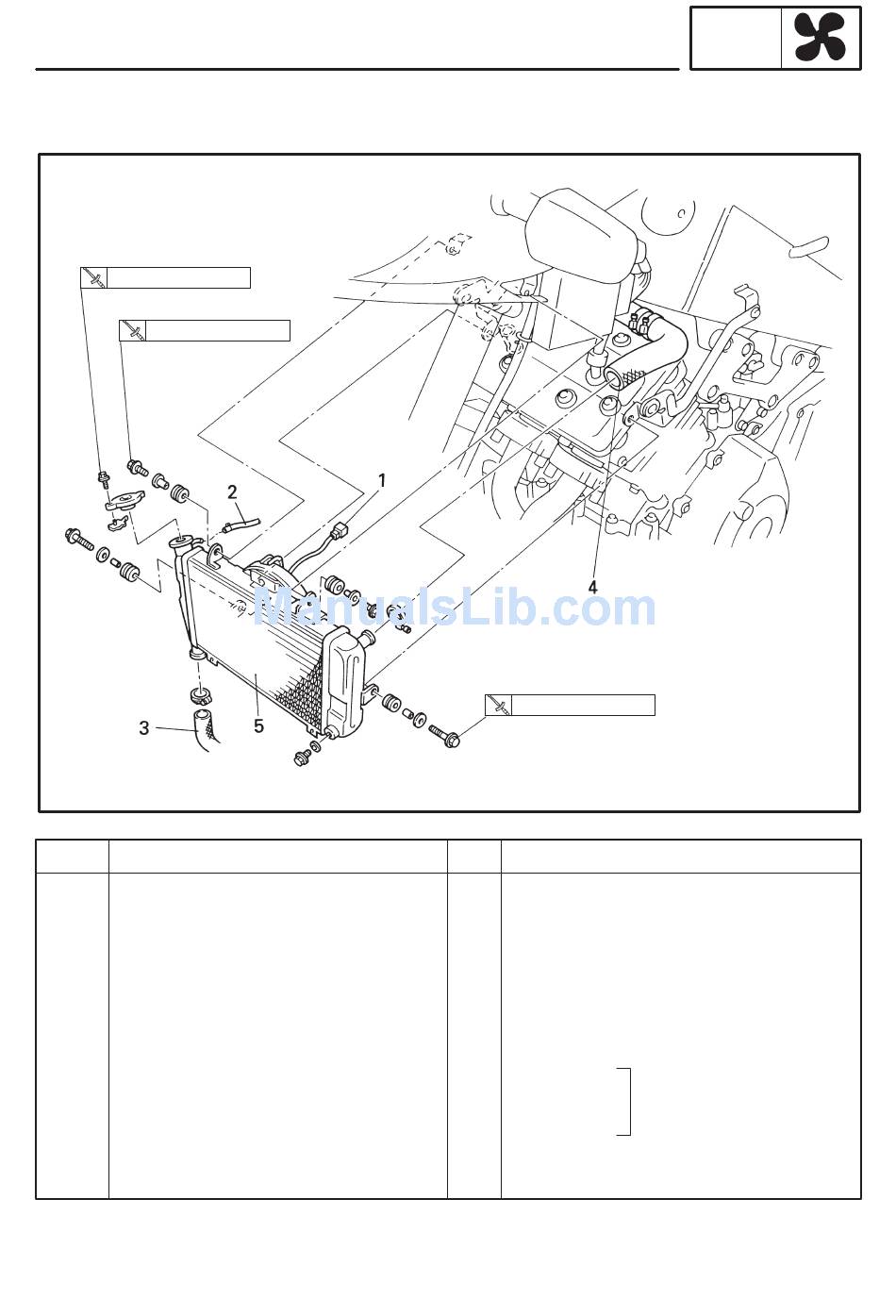

RADIATOR

5 Nm (0.5 mSkg)
7 Nm (0.7 mSkg)
Order
Job name/Part name
Radiator removal
Coolant
Side cowling, seat, side cover and
fuel tank
Air filter case
1 Fan motor lead
2 Coolant reservoir hose
3 Coolant hose 3
4 Coolant hose 2
5 Radiator assembly
COOLING SYSTEM
Q'ty
1
1
1
1
1
5-1
RADIATOR
7 Nm (0.7 mSkg)
Remarks
Remove the parts in the order below.
Refer to "COOLANT REPLACEMENT" in
CHAPTER 3.
Refer to "COWLINGS, SEAT, TAIL COVER
AND FUEL TANK" in CHAPTER 3.
Refer to "AIR FILTER CASE" in
CHAPTER 3.
Disconnect
Disconnect
Refer to "INSTALLA-
TION".
For installation, reverse the removal
procedure.
COOL
