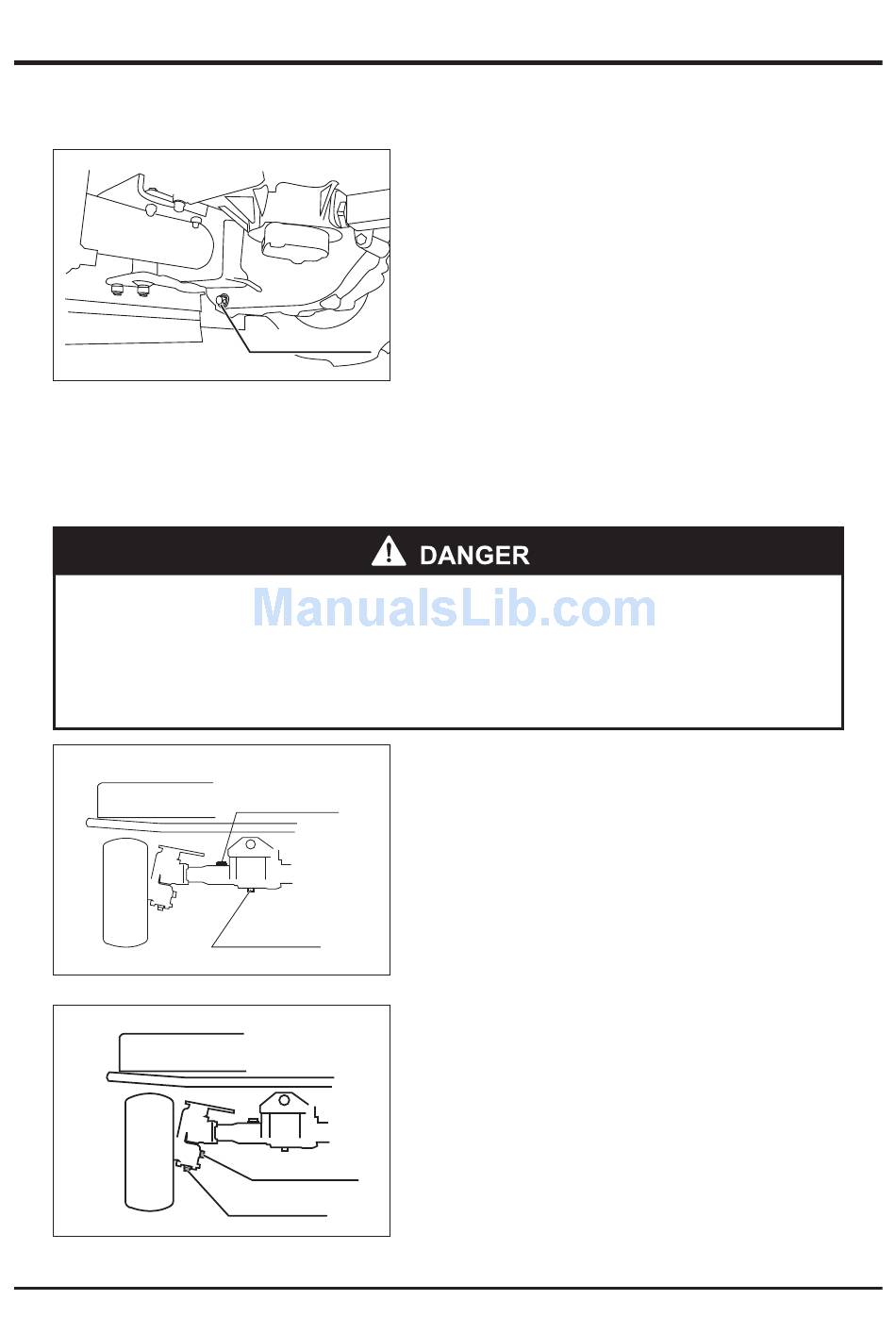

Replacing Differential Oil and Knuckle Oil

* Allow oil and parts to cool before performing maintenance to reduce risk of
burns.
* Properly dispose of waste oil after removing from machine.
Differential oil
5310M-0704-050E
Knuckle oil
5310M-0704-060E
Maintenance
Drain plug
Lubricating plug
Drain plug
Lubricating plug
Drain plug
Replacing Oil
1. Position a vessel suitable for receiving the
drained oil under the drain plug.
2. Remove the drain plug and drain the present
oil from the draining port.
3. Attach the drain plug to the draining port.
4. Remove the plug from the oil filler port.
5. Add the specified transmission oil to the oil
filler port.
6. Securely attach the plug to the oil filler port.
Replacing Oil
1. Position a vessel suitable for receiving the
drained oil under drain plug.
2. Remove the drain plug and drain the oil from
the drain port.
3. Attach the plug to the drain port.
4. Remove the lubricating plug.
5. Add the specified oil to the lubricating port.
6. Securely attach the plug to the lubricating port.
