7
Adjustment nut "G"
Blade pulley
Spring "F"
When shifting the blade clutch lever to
When shifting the blade clutch lever to
5314M-0708-050-E
Maintenance
the "OFF" position
the "ON" position
Adjustment nut "E"

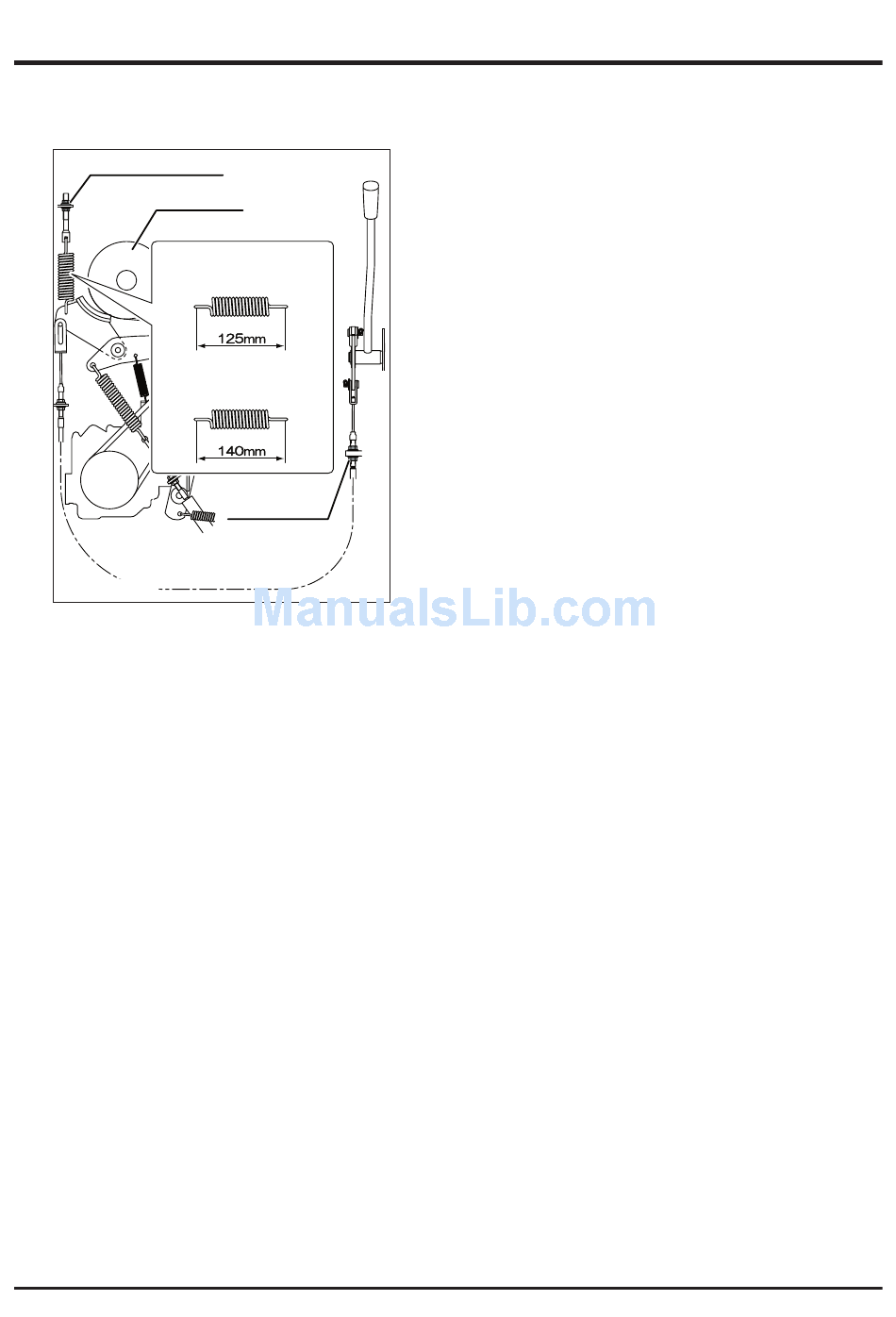

Adjusting Rotary Cutter Brake
When the rotary cutter does not stop within about
4 seconds after shifting the cutting blade clutch
lever to "OFF", and when the rotary stopper is
replaced, adjust the rotary cutter brake according
to the following procedure.
1. Confirm that the engine stops.
2. Adjust the length of the spring "F" to 125 mm
with adjusting nut "G" when shifting the blade
clutch lever to "OFF".
3. Adjust the length of the spring "F" to 140 mm
with adjusting nut "E" when shifting the blade
clutch lever to "ON".
-72-
