Rear Panel - Optiview VRHT Quick Start Up Manual

Record light
Power indication
light
HDD abnormal
indication light
Network abnormal
indication light
IR Receiver

1.6 Rear Panel

Please note the following introduction is based on the general 1U series only. For detailed
information, please refer to our resource CD included in your package for electronic
version of the User's Manual.

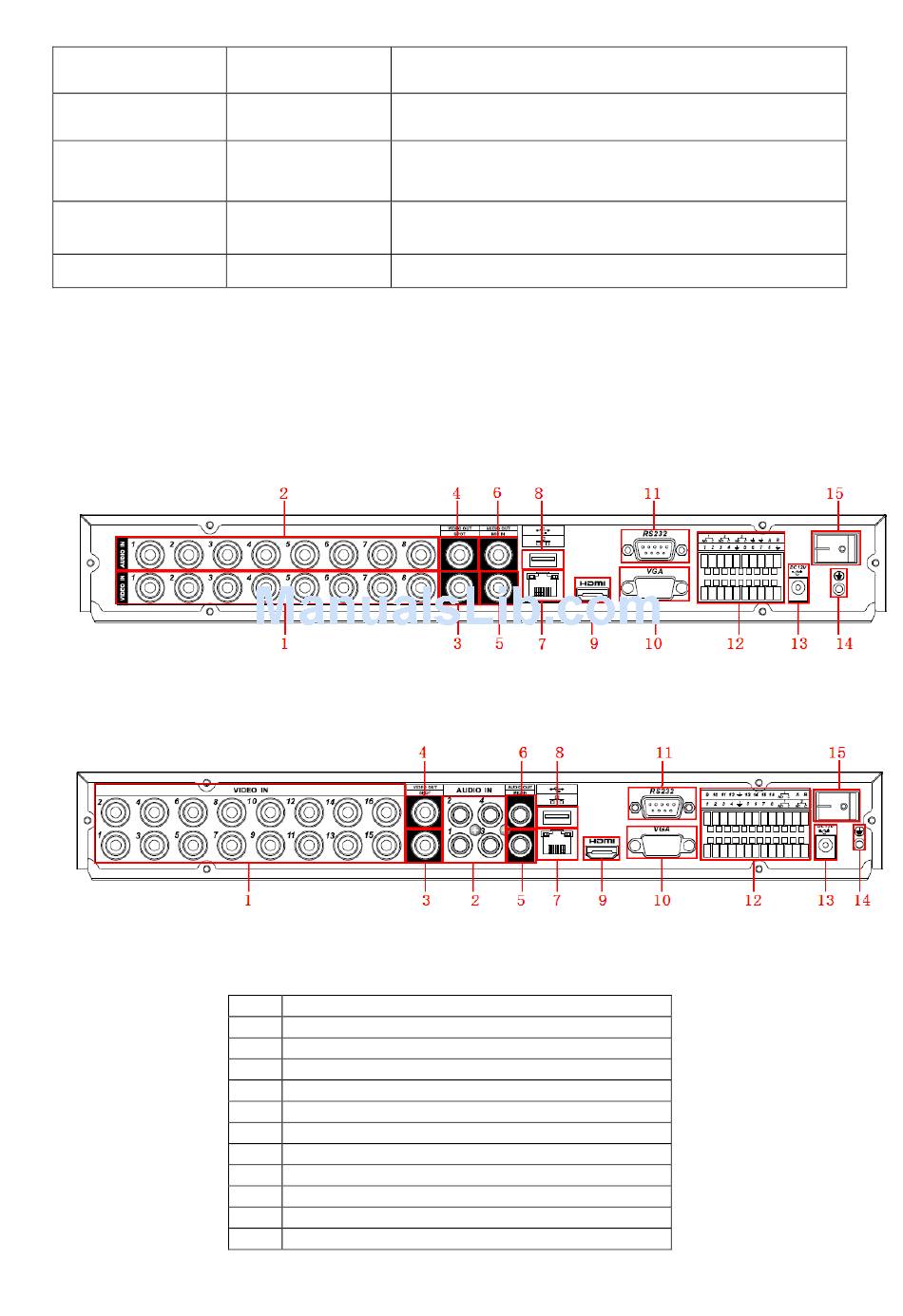

The 4/8-channel series DVR rear panel is shown as below. See Figure 1-2.
The 16-channel series DVR rear panel is shown as below. See Figure 1-3.
Please refer to the following sheet for detailed information.
1-16 For 4/8/16 channel device: indication light on means
that the channel is in recording.
Power Power indication light.
HDD HDD error occurs or HDD capacity is below specified
threshold value, the light becomes red to alert you.
Net
Network error occurs or there is no network connection,
the light becomes red to alert you.
IR It is to receive the signal from the remote control.
Figure 1-2
Figure 1-3
1 Video input
2 Audio input
3 Video spot output
4 Video CVBS output
5 Bidirectional talk input
6 Audio output
7 Network port
8 USB port
9 HDMI port
10 Video VGA output
11 RS232 port
12 Alarm input/alarm output/RS485 port
