When connect the Ethernet port, please use crossover cable to connect the PC and use the
straight cable to connect to the switcher or router.

1.7 Connection Sample

Please note the following introduction is based on the general 1U series only. For detailed
information, please refer to our resource CD included in your package for electronic
version of the User's Manual.

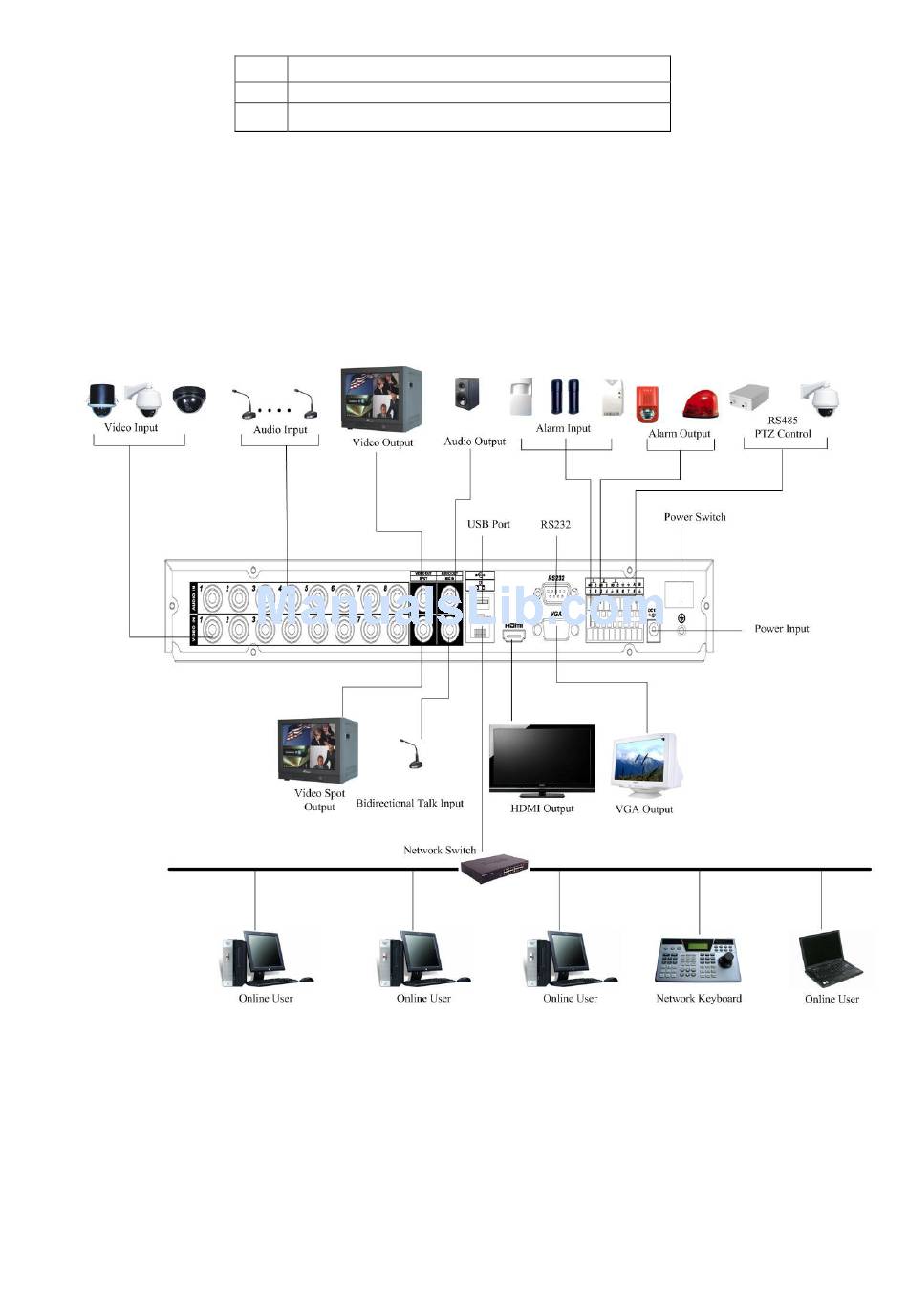

Please refer to Figure 1-4 for connection sample.
The following figure is based on the 8-channel series product.

1.8 Alarm Input and Output Connection

Important
Please refer to the specifications for the alarm input and output channel amount. Do not
merely count the alarm input and out channel amount according to the ports on the rear
panel.
Power socket
GND port
On/off button
Figure 1-4
5
