1.8.3 Alarm Output Port

z
Provide external power to external alarm device.
z
To avoid overloading, please read relay parameters sheet in the User's Manual carefully.
z
RS485 A/B cable is for the A/B cable of the PTZ decoder.

2 Overview of Navigation and Controls

Before operation, please make sure:
z
You have properly installed HDD and all the cable connections.
z
The provided input power and the device power are matched.
z
The external power shall be DC 12 V.
z
Always use the stable current, if necessary UPS is a best alternative measure.
2.1 Login, Logout & Main Menu

2.1.1 Login

After system booted up, system pops up the startup wizard.
Click the Cancel button; you can go to the system login interface.
Click the Next Step button; you can go to the startup wizard interface. Here you can set
the system basic information. See Figure 2-1.

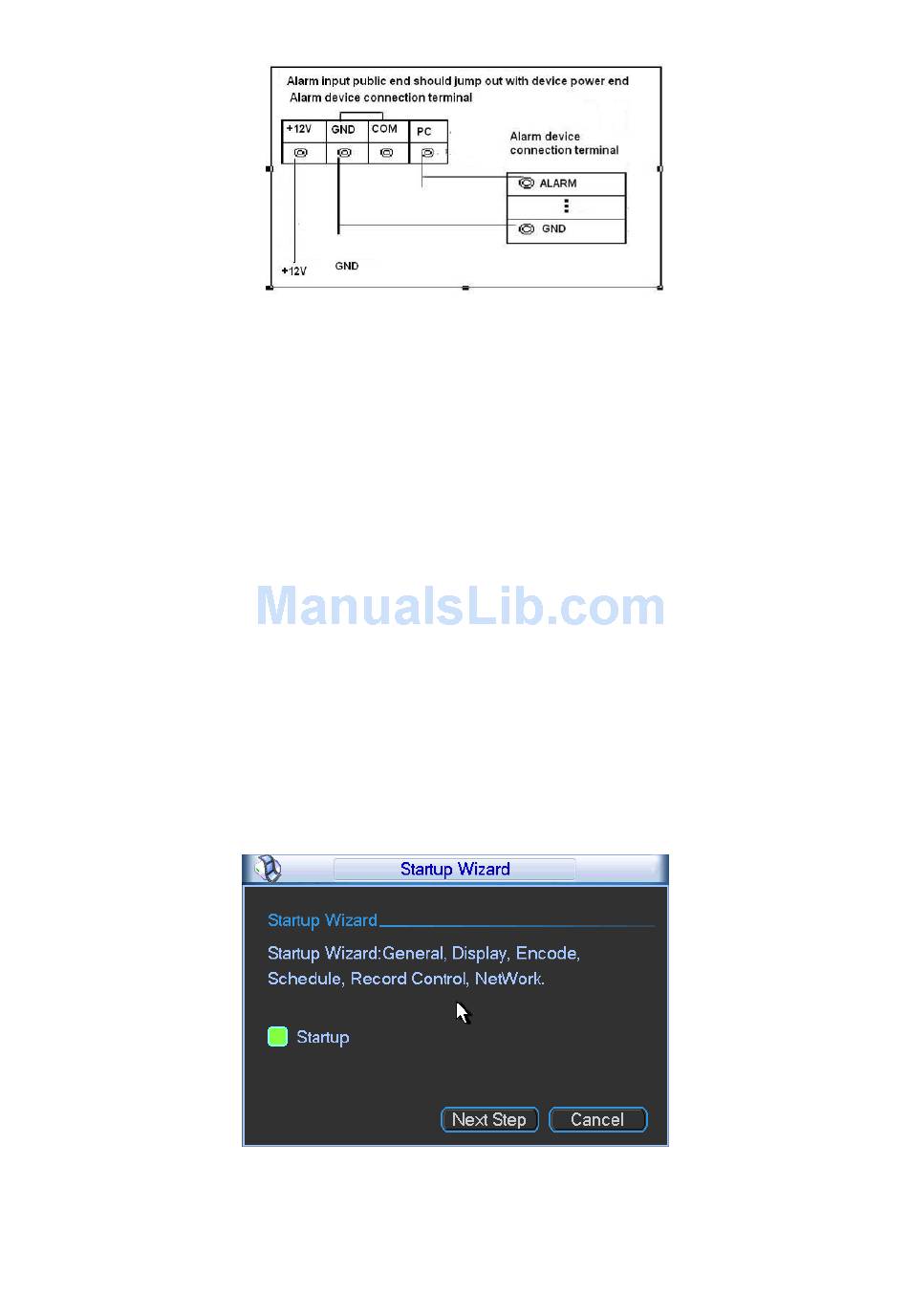

Figure 1-6
Figure 2-1
7
