SnapServer GuardianOS 7.2 Administrator's Guide

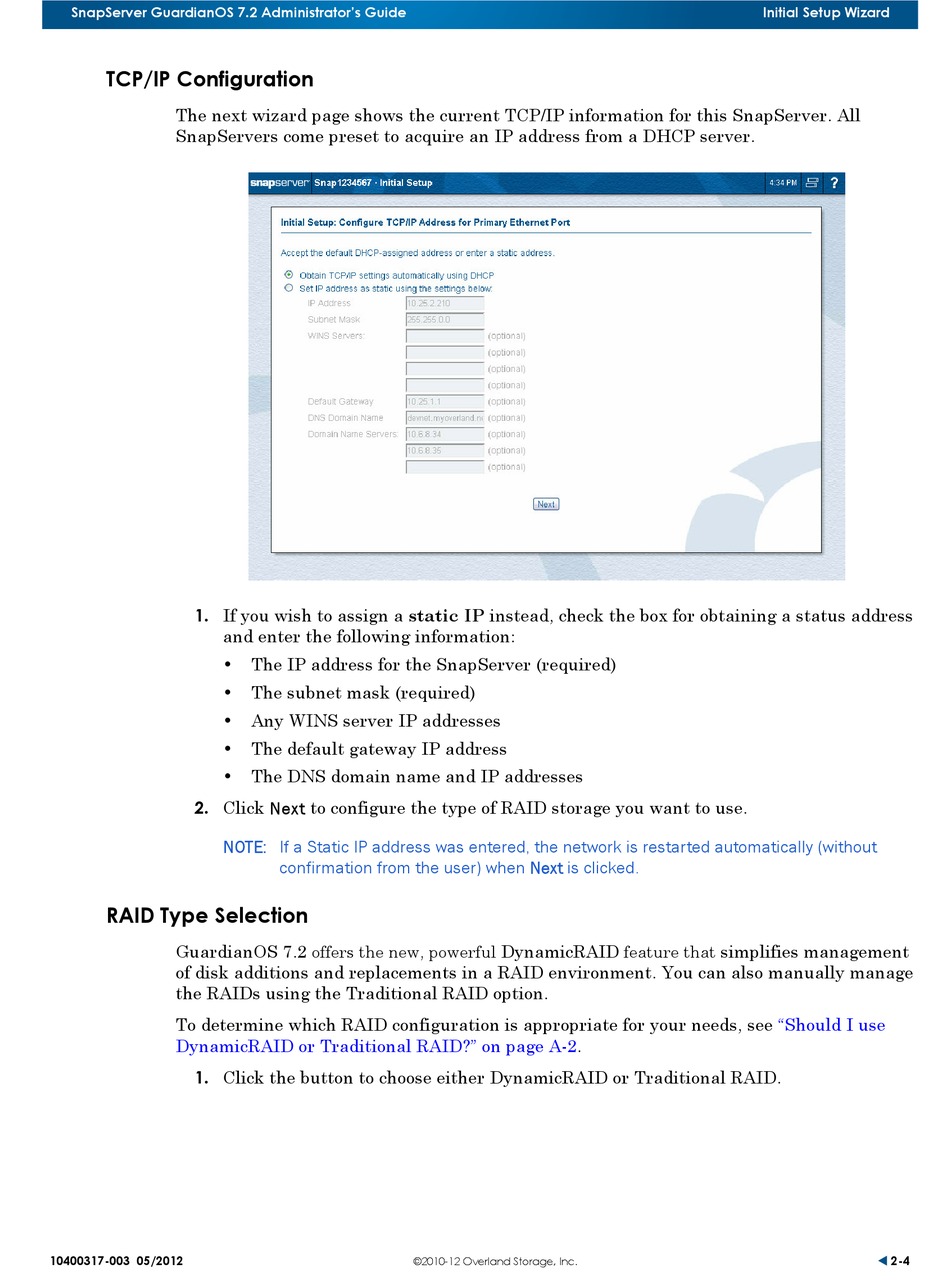

TCP/IP Configuration
The next wizard page shows the current TCP/IP information for this SnapServer. All
SnapServers come preset to acquire an IP address from a DHCP server.
1. If you wish to assign a static IP instead, check the box for obtaining a status address
and enter the following information:
• The IP address for the SnapServer (required)
• The subnet mask (required)
• Any WINS server IP addresses
• The default gateway IP address
• The DNS domain name and IP addresses
2. Click Next to configure the type of RAID storage you want to use.
NOTE: If a Static IP address was entered, the network is restarted automatically (without

RAID Type Selection

GuardianOS 7.2 offers the new, powerful DynamicRAID feature that simplifies management
of disk additions and replacements in a RAID environment. You can also manually manage
the RAIDs using the Traditional RAID option.
To determine which RAID configuration is appropriate for your needs, see
DynamicRAID or Traditional RAID?" on page
1. Click the button to choose either DynamicRAID or Traditional RAID.
10400317-003 05/2012
confirmation from the user) when Next is clicked.
©2010-12 Overland Storage, Inc.
A-2.
Initial Setup Wizard
"Should I use
 2-4
