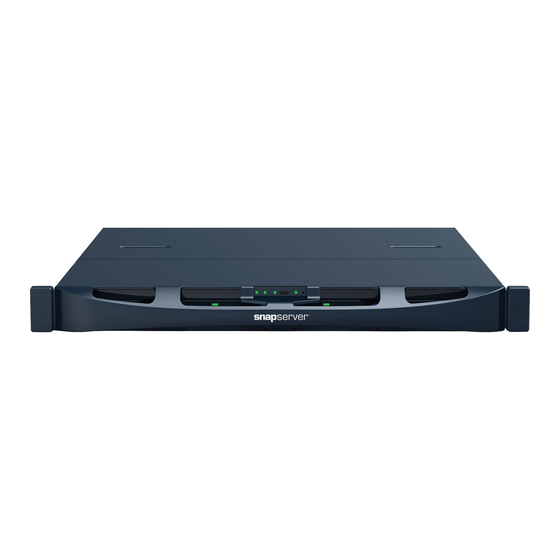

Overland Storage SnapServer DX1 Instructions Manual

Add-on/Spare PCIe Card Instructions

This document describes how to add a PCIe card to or remove
and replace an existing PCIe card in a SnapServer DX1 or DX2
from Overland Storage.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working
with the unit.
WARNUNG:
Um das Risiko eines elektrischen Schlags oder
Schäden am Gerät zu vermeiden, ziehen Sie stets den
Netzstecker, bevor Sie an der Einheit arbeiten.
AVERTISSEMENT:
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION: While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.

Register the Add-on Card

NOTE: If you are only replacing an existing card, skip to the next
section, "Prepare the Unit."
When adding an additional PCIe card to your server, you must
first register it to activate the warranty. Technical and
warranty support are not available until this is done:
1. Go to the Overland Storage website
(http://www.overlandstorage.com/).
Selec
2. t Service & Support > My Products.
3. At the Site Login, enter your e-mail address and
password, and click
4. Click the Manage Products
5. From the Product Selector drop-down list, select the DX1
or DX2 in which you are installing the extra card.
Add a Component
6. Click
7. Enter the PCIe card information.
8. Click Save & Exit .
IMPORTANT: You'll receive a confirmation e-mail from
Overland with instructions on how to complete the registration
process.
10400610-001
Pour réduire le risque de choc électrique
GO .
button.
.
©2011-14 Overland Storage, Inc.
SnapServer DX1/DX2
®
Enter
Enter
