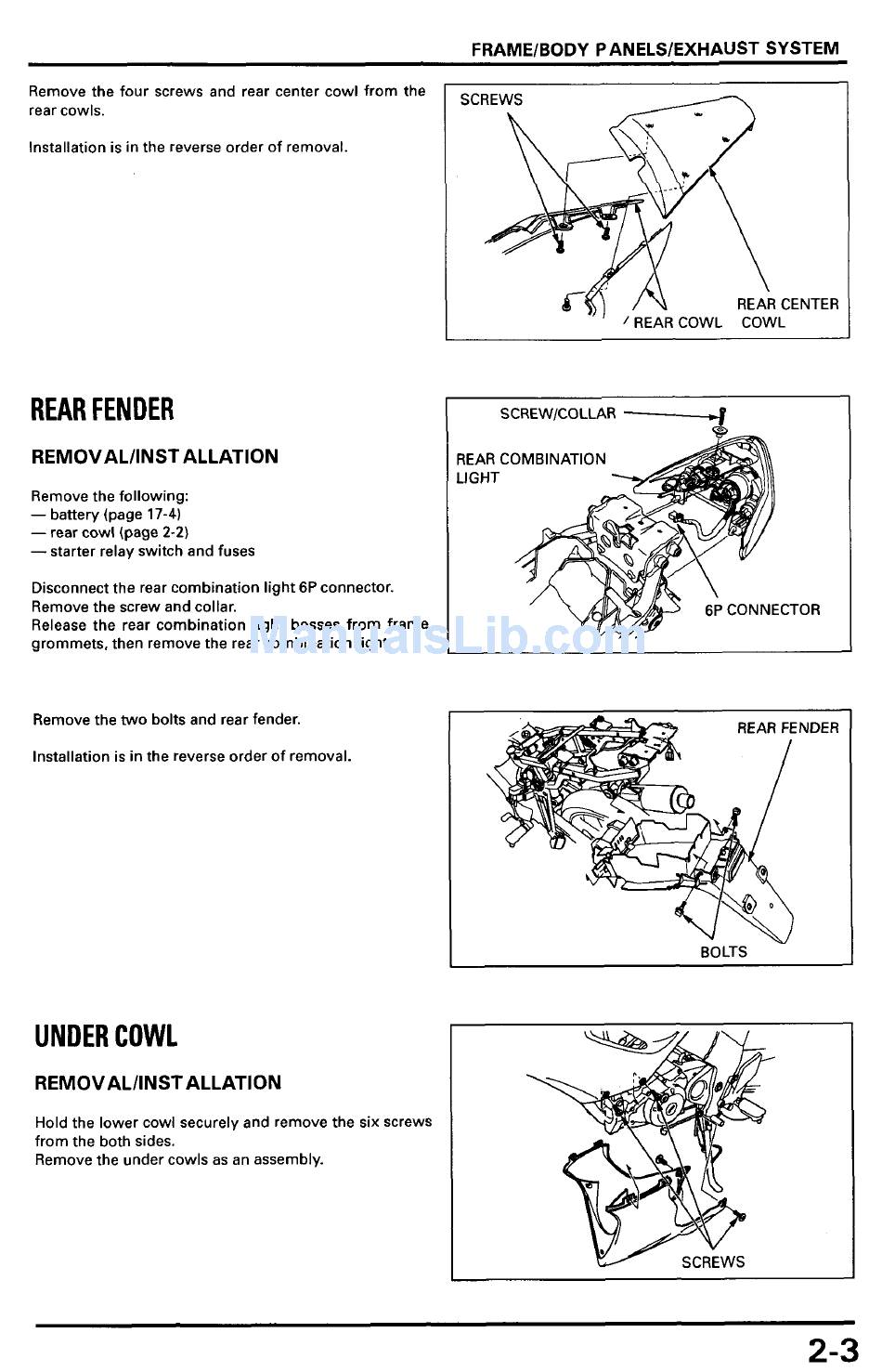

Remove the four screws and rear center cowl from the
rear cowls.
Installation is i n the reverse order of removal.
REAR FENDER
REMOVALANST ALLATION
Remove the following:
-battery (page 17-41
-
rear cowl (page 2-2)
-starter relay switch and fuses
Disconnect the rear combination light 6P connector.
Remove the screw and collar.
Release the rear combination light bosses from frame
grommets, then remove the rear combination light.
Remove the two bolts and rear fender.
Installation is in the reverse order of removal.
UNDER COWL
REMOVALllNST ALLATION
Hold the lower cowl securely and remove the six screws
from the both sides.
Remove the under cowls as an assembly.
-
REAR
LIGHl
-
SCREW/COLLAR
COMBINATION
I
BOLTS
2-3
