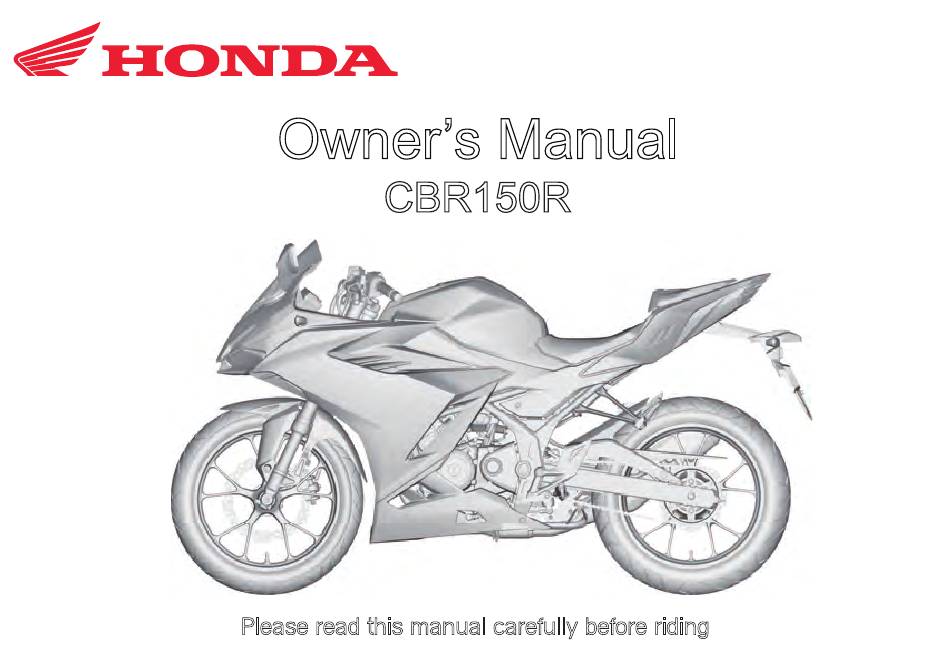

Owner's Manual
CBR150R
Please read this manual carefully before riding
CBR150RAM

Advertisement

Table of Contents
loading

Related Manuals for Honda CBR150R

Summary of Contents for Honda CBR150R

  • Page 1 Owner’s Manual CBR150R Please read this manual carefully before riding CBR150RAM...
  • Page 2 How can you contact to CR Section? Customer can contact to CR by the following: : 010 922 922 E-mail : cr@ncxhonda.com.kh Working Hours : 08:00AM-05:00PM Working Days : Every Monday to Saturday (except National Holidays and cr@ncxhonda.com.kh Company Holiday) Honda Cambodia – NCX www.ncxhonda.com.kh...
  • Page 3 This publication includes the latest production information available before printing. Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without incurring any obligation.
  • Page 5 Congratulations on your purchase of a new The following codes in this manual ● Honda vehicle. Your selection of a Honda indicate each country. makes you part of a worldwide family of The illustrations here in are based on the ●...
  • Page 6 A Few Words About Safety DANGER Your safety, and the safety of others, is very important. Operating this vehicle safely is an You WILL be KILLED or SERIOUSLY important responsibility. HURT if you don’t follow instructions. To help you make informed decisions about safety, we have provided operating WARNING procedures and other information on safety...

  • Page 7: Table Of Contents

    Contents Vehicle Safety P. 2 Operation Guide P. 12 Maintenance P. 33 Troubleshooting P. 66 Information P. 76 Specifications P. 88...

  • Page 8: Vehicle Safety

    Vehicle Safety This section contains important information for safe riding of your vehicle. Please read this section carefully. Safety Guidelines ..........P. 3 Safety Precautions..........P. 6 Riding Precautions ..........P. 7 Accessories & Modifications......P. 10 Loading ..............P. 11...

  • Page 9: Safety Guidelines

    Safety Guidelines Safety Guidelines Before Riding Make sure that you are physically fit, mentally Follow these guidelines to enhance your safety: focused and free of alcohol and drugs. Check Perform all routine and regular inspections ● that you and your passenger are both wearing specified in this manual.
  • Page 10 Make yourself more visible, especially at night, by wearing bright reflective clothing, positioning Keep Your Honda in Safe Condition yourself so other drivers can see you, signaling before turning or changing lanes, and using It's important to keep your vehicle properly your horn when necessary.
  • Page 11 Safety Guidelines If You are Involved in a Crash Carbon Monoxide Hazard Exhaust contains poisonous carbon monoxide, a Personal safety is your first priority. If you or colourless, odorless gas. Breathing carbon anyone else has been injured, take time to monoxide can cause loss of consciousness and assess the severity of the injuries and whether it may lead to death.

  • Page 12: Safety Precautions

    Safety Precautions Safety Precautions Face shield with unobstructed field of vision ● or other approved eye protection Ride cautiously and keep your hands on the ● WARNING handlebars and feet on the footpegs. Keep passenger's hands onto the seat strap Not wearing a helmet increases the ●...

  • Page 13: Riding Precautions

    Riding Precautions Riding Precautions Brakes Observe the following guidelines: Running-in Period Avoid excessively hard braking and ● downshifting. During the first 500 km (300 miles) of running, Sudden braking can reduce the vehicle's follow these guidelines to ensure your vehicle's stability.
  • Page 14 Riding Precautions Anti-lock Brake System (ABS) Wet or Rainy Conditions Road surfaces are slippery when wet, and wet CBR150RA This model is equipped with an Anti-lock Brake brakes further reduce braking efficiency. System (ABS) designed to help prevent the Exercise extra caution when braking in wet brakes from locking up during hard braking.
  • Page 15 Riding Precautions Slowly lean the vehicle to the left until its Parking weight rests on the side stand. Park on a firm, level surface. ● Turn the handlebars fully to the left. If you must park on a slight incline or loose ●...

  • Page 16: Accessories & Modifications

    We strongly advise that you do not add any seriously hurt or killed. accessories that were not specifically designed for your vehicle by Honda or make Follow all instructions in this owner's modifications to your vehicle from its original manual regarding accessories and design.

  • Page 17: Loading

    Loading Loading WARNING Overloading or improper loading can Carrying extra weight affects your vehicle's ● cause a crash and you can be seriously handling, braking and stability. hurt or killed. Always ride at a safe speed for the load you are carrying.

  • Page 18: Operation Guide

    Parts Location Rear brake fluid reservoir (P.57) Fuse box (P.73) Battery (P.49) Front brake fluid reservoir (P.57) Throttle grip (P.65) Engine oil fill cap/dipstick (P.53) Coolant reserve tank (P.55)
  • Page 19 Clutch lever (P.62) Fuel fill cap (P.31) Hemet holder (P.32) Rear seat (P.52) Document bag (P.32) Tool kit (P.32) Front seat (P.51) Shift lever (P.28) Drive chain (P.61) Side stand (P.60)
  • Page 20 Instruments Tachometer NOTICE Do not operate the engine in the tachometer red zone. Excessive engine speed can adversely affect engine life. Tachometer red zone (excessive engine rpm range) SEL button SET button Display Check When the ignition switch is turned on, all the mode and digital segments will show.
  • Page 21 Odometer [TOTAL] & Tripmeter [TRIP A/B] & Current fuel mileage & Average fuel mileage [AVG A/B] (P.16) Clock (12-hour display) To set the clock: (P.19) Fuel gauge Remaining fuel when only 1st (E) segment starts flashing: approximately 1.94 L (0.513 US gal, 0.427 Imp gal) If the fuel gauge indicator flashes in a repeat pattern or turns off: (P.70)
  • Page 22 Instruments (Continued) Odometer [TOTAL] & Tripmeter [TRIP A/B] & Current fuel mileage & Average fuel mileage [AVG A/B] The SEL button switches between the odometer, tripmeter A, tripmeter B, current fuel mileage, average fuel mileage A and average fuel mileage B. Odometer Tripmeter A Tripmeter B...
  • Page 23 Odometer [TOTAL] Average fuel mileage [AVG A/B] Total distance ridden. When “------” is The average fuel mileage A will be based on displayed, go to your dealer for service. tripmeter A. The average fuel mileage A since tripmeter A was reset. The average fuel mileage B will be based on Tripmeter [TRIP A/B] tripmeter B.
  • Page 24 Instruments (Continued) To reset the tripmeter B and average fuel To reset the tripmeter [TRIP A/B] and mileage B together, press and hold the SET average fuel mileage [AVG A/B] button while the tripmeter B or average fuel To reset the tripmeter A and average fuel mileage B is displayed.
  • Page 25 To set the clock Press the SEL button until the desired minute is displayed. Turn the ignition switch to the (On) Press and hold the SEL button to position. advance the minute fast. Press and hold the SEL and the SET buttons until the hour digits start flashing.
  • Page 26 Indicators If one of these indicators does not come on when it should, have your dealer check for problems. PGM-FI (Programmed Fuel Injection) ABS (Anti-lock Brake System) malfunction indicator lamp (MIL) indicator CBR150RA Comes on when the ignition switch is Comes on briefly when the ignition switch is turned to the (On) position.
  • Page 27 Left turn signal indicator High coolant temperature indicator Comes on briefly when the ignition switch is turned to the (On) position. High beam indicator If it comes on while riding: (P.68) Right turn signal indicator Neutral indicator Comes on when the transmission is in Neutral.
  • Page 28 Switches Headlight dimmer switch • : High beam • : Low beam Horn button Start button LO / MM type Turn signal switch Pressing the switch turns Passing light control switch the turn signal off. Flashes the high beam headlight.
  • Page 29 Ignition switch (On) Switches the electrical system on/off, Turns electrical system locks the steering. on for starting/riding. Key can be removed when in the (Off) or (Lock) position. (Off) Turns engine off. (Lock) Locks steering. CA type Headlight switch • Headlight, position light, taillight and license plate light on.
  • Page 30 Switches (Continued) Steering Lock Locking Turn the handlebars all the way to the left. Lock the steering when parking to help Push the key down, and turn the ignition prevent theft. switch to the (Lock) position. A U-shaped wheel lock or similar device is Jiggle the handlebars if the lock is also recommended.
  • Page 31 Shutter Close Remove the ignition key from the ignition The ignition switch for this vehicle is switch. equipped with a shutter. After parking the Align the projection of the shutter key with vehicle, close the shutter for theft prevention. the slot of the shutter, and turn the shutter key counterclockwise.
  • Page 32 Starting the Engine Start your engine using the following procedure, regardless of whether the engine Turn the ignition switch to the (On) position. is cold or warm. Shift the transmission to Neutral indicator to come on). With the throttle closed, press the start button.
  • Page 33 If the engine does not start: Open the throttle fully and press the start button for 5 seconds. Repeat the normal starting procedure. If the engine starts, open the throttle slightly if idling is unstable. If the engine does not start, wait 10 seconds before trying step a &...
  • Page 34 Shifting Gears Your vehicle transmission has 6 forward gears in a one-down, five-up shift pattern.
  • Page 35 Emergency Stop Signal The emergency stop signal stops operating CBR150RA Emergency stop signal activates when the when: system detects hard braking about 56 km/h You release the brakes. ● (34 mph) or above to alert drivers behind The ABS is deactivated. ●...
  • Page 36 Emergency Stop Signal (Continued) The emergency stop signal is not a system that can prevent a possible rear-end collision caused by your hard braking. It is always recommended to avoid hard braking unless it is absolutely necessary.
  • Page 37 Refuelling Ignition key Refuelling and Fuel Guidelines (P.9) Fuel filler Lock cover opening Opening the Fuel Fill Cap Open the lock cover, insert the ignition key, and turn it clockwise to open the fuel fill cap. Closing the Fuel Fill Cap After refuelling, push the fuel fill cap closed until it locks.
  • Page 38 Storage Equipment The helmet holder, helmet set wire (in the Document bag tool kit), tool kit, and document bag are located under the rear seat. Helmet set wire Helmet holder Helmet D-ring Rubber strap Tool kit Helmet set wire WARNING Riding with a helmet attached to the holder can interfere with the rear wheel or suspension and could cause a crash...

  • Page 39: Maintenance

    Maintenance Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully before attempting any maintenance. Refer to “Specifications” for service data. Importance of Maintenance ......P. 34 Throttle ..............P. 65 Maintenance Schedule........P. 35 Maintenance Fundamentals ......P. 38 Tool ............... P. 48 Removing &...

  • Page 40: Importance Of Maintenance

    Importance of Maintenance Importance of Maintenance Maintenance Safety Keeping your vehicle well-maintained is Always read the maintenance instructions absolutely essential to your safety and to before you begin each task and make sure that protect your investment, obtain maximum you have the tools, parts, and skills required. performance, avoid breakdowns, and reduce air We cannot warn you of every conceivable pollution.

  • Page 41: Maintenance Schedule

    Maintenance work should be performed in new owner. accordance with Honda's standards and specifications by properly trained and equipped Honda recommends that your dealer should technicians. Your dealer meets all of these road test your vehicle after each periodic requirements. Keep an accurate record of maintenance is carried out.
  • Page 42 Inspect (clean, adjust, lubricate, or replace, if necessary) dealer, unless you have the necessary tools and are Clean mechanically skilled. Lubricate Procedures are provided in an official Honda Shop Manual. Replace : Technical. In the interest of safety, have your vehicle serviced by your dealer.
  • Page 43 Maintenance Schedule Frequency Pre-ride Annual Regular Refer to Items Check × 1,000 km Check Replace page P. 38 × 1,000 mi Drive Chain Every 500 km (300 mi): Brake Fluid 2 Years Brake Pads Wear Brake System Brakelight Switch Headlight Aim –...

  • Page 44: Maintenance Fundamentals

    Maintenance Fundamentals Drive chain - Check condition and slack, Pre-ride Inspection ● adjust and lubricate if necessary P. 61 To ensure safety, it is your responsibility to Brakes - Check operation; ● perform a pre-ride inspection and make sure Front and Rear: check brake fluid level and that any problem you find is corrected.
  • Page 45 Maintenance Fundamentals Replacing Parts Battery Always use Honda Genuine Parts or their Your vehicle has a maintenance-free type equivalents to ensure reliability and safety. battery. You do not have to check the battery electrolyte level or add distilled water. Clean the...
  • Page 46 Maintenance Fundamentals WARNING What to do in an emergency If any of the following occur, immediately see The battery gives off explosive your doctor. hydrogen gas during normal operation. Electrolyte splashes into your eyes: ● Wash your eyes repeatedly with cool water for at least 15 minutes.
  • Page 47 Always replace the battery with another maintenance-free battery of the same type. NOTICE Installing non-Honda electrical accessories can NOTICE overload the electrical system, discharging the Replacing a fuse with one that has a higher battery and possibly damaging the system.
  • Page 48 “Resource Conserving” on the circular API For recommended engine oil, see service symbol. “Specifications.” P. 89 If you use non-Honda engine oil, check the label to make sure that the oil satisfies all of the following standards: JASO T 903 standard : MA ●...
  • Page 49 NOTICE Brake fluid can damage plastic and painted surfaces. Wipe up spills immediately and wash thoroughly. Recommended brake fluid: Honda DOT 3 or DOT 4 Brake Fluid or Normal Worn Damaged equivalent (GOOD)
  • Page 50 After cleaning, wipe dry and lubricate with the recommended lubricant. Recommended Coolant Recommended lubricant: Drive chain lubricant Use only genuine HONDA PRE-MIX COOLANT If not available, use SAE 80 or 90 gear without diluting with water. Genuine HONDA oil. PRE-MIX COOLANT is excellent at preventing corrosion and overheating.
  • Page 51 Maintenance Fundamentals Inspecting for Damage Crankcase Breather Inspect the tyres for Service more frequently when riding in rain, at cuts, slits, or cracks that full throttle, or after the vehicle is washed or expose fabric or cords, overturned. Service if the deposit level can be or nails or other seen in the transparent section of the drain foreign objects...
  • Page 52 Maintenance Fundamentals WARNING Inspecting Tread Depth Inspect the tread wear indicators. If they Riding on tyres that are excessively become visible, replace the tyres immediately. worn or improperly inflated can cause a For safe riding, you should replace the tyres crash in which you can be seriously hurt when the minimum tread depth is reached.
  • Page 53 Always use the size and type of tyres Have the wheel balanced with Honda ● Genuine balance weights or equivalent after recommended in this owner's manual. the tyre is installed.

  • Page 54: Tool

    Tool The tool kit is stored under the rear seat. P. 32 You can perform some roadside repairs, minor adjustments and parts replacement with the provided tools. 10 × 14 mm Open end wrench ● Spark plug wrench ● 5 mm Hex wrench ●...

  • Page 55: Removing & Installing Body Components

    Removing & Installing Body Components Battery Negative terminal Terminal nut Positive terminal Inlet duct Screws Bolt Battery Terminal nut Battery band Removal Make sure the ignition switch is in the (Off) position. Remove the front seat. P. 51 Remove the screws, and then pull the inlet duct back.
  • Page 56 Removing & Installing Body Components Battery Installation Remove the bolt. Disconnect the negative - terminal from Install the parts in the reverse order of removal. the battery. Always connect the positive + terminal first. Disconnect the positive + terminal from Make sure that bolts and nuts are tight.

  • Page 57: Front Seat

    Removing & Installing Body Components Front Seat Front Seat Removal Pull the rear corners of the front seat up, Mounting bolts then remove the mounting bolts and collars. Collar Pull the front seat back and up. Front seat Installation Collar Install the front seat while inserting the tab into the recess.

  • Page 58: Rear Seat

    Removing & Installing Body Components Rear Seat Rear Seat Removal Insert the ignition key into the seat lock. Turn it clockwise, then pull the rear seat Rear prong forward and up. Front prongs Installation Insert the front and rear prongs into the Rear seat front and rear stays on the frame.

  • Page 59: Engine Oil

    Engine Oil Checking the Engine Oil Oil fill cap/dipstick Upper level If the engine is cold, idle the engine for 3 to 5 minutes. Turn the ignition switch to the (Off) position and wait for 2 to 3 minutes. Place your vehicle in an upright position on a firm, level surface.
  • Page 60 Engine Oil Adding Engine Oil Adding Engine Oil Securely reinstall the oil fill cap/dipstick. NOTICE If the engine oil is below or near the lower Overfilling with oil or operating with insufficient level mark, add the recommended engine oil. oil can cause damage to your engine. Do not mix P.

  • Page 61: Coolant

    Coolant Checking the Coolant UPPER level Check the coolant level in the reserve tank while the engine is cold. Place your vehicle on a firm, level surface. Hold your vehicle in an upright position. Check that the coolant level is between the UPPER level and LOWER level marks on the reserve tank.
  • Page 62 Coolant Adding Coolant Reserve tank cap Remove the reserve tank cap and add fluid while monitoring the coolant level. Do not overfill above the UPPER level mark. Make sure no foreign objects enter the reserve tank opening. Securely reinstall the reserve tank cap. WARNING Reserve tank Removing the radiator cap while the...

  • Page 63: Brakes

    Brakes Checking Brake Fluid If the brake fluid level in either reservoir is below the LWR mark or LOWER level mark or the brake lever and pedal freeplay becomes Place your vehicle in an upright position excessive, inspect the brake pads for wear. on a firm, level surface.
  • Page 64 Brakes Inspecting the Brake Pads Inspecting the Brake Pads Front Rear Brake Pads Check the condition of the brake pad wear Disc indicators. The pads need to be replaced if a Front brake pad is worn to the bottom of the indicator.
  • Page 65 Brakes Adjusting the Brakelight Switch Adjusting the Brakelight Switch Brakelight switch Check the operation of the brakelight switch. Hold the brakelight switch and turn the adjusting nut in the direction A if the switch operates too late, or turn the nut in the direction B if the switch operates too soon.

  • Page 66: Side Stand

    Side Stand Checking the Side Stand Side stand spring Check that the side stand operates smoothly. If the side stand is stiff or squeaky, clean the pivot area and lubricate the pivot bolt with clean grease. Check the spring for damage or loss of tension.

  • Page 67: Drive Chain

    Drive Chain Inspecting the Drive Chain Slack Check the drive chain slack at several points along the chain. If the slack is not constant at all points, some links may be kinked and binding. Have the chain inspected by your dealer. Shift the transmission to Neutral.

  • Page 68: Clutch

    Clutch Checking the Clutch Check the clutch cable for kinks or signs of wear. If necessary have it replaced by your Checking the Clutch Lever Freeplay dealer. Lubricate the clutch cable with a Check the clutch lever freeplay. commercially available cable lubricant to Freeplay at the clutch lever: prevent premature wear and corrosion.
  • Page 69 Clutch Adjusting the Clutch Lever Freeplay Adjusting the Clutch Lever Upper clutch cable adjuster – Upper lock nut Freeplay Upper Adjustment Attempt adjustment with the upper clutch cable adjuster first. Pull back the rubber dust cover. Rubber dust cover Loosen the upper lock nut. Turn the upper clutch cable adjuster until the freeplay is 10 - 20 mm (0.4 - 0.8 in).
  • Page 70 Clutch Adjusting the Clutch Lever Freeplay Lower Adjustment Lower adjusting nut If the upper clutch cable adjuster is threaded out near its limit, or the correct freeplay cannot be obtained, attempt adjustment with the lower clutch cable adjusting nut. Loosen the upper lock nut and turn the –...
  • Page 71 Throttle Checking the Throttle With the engine off, check that the throttle rotates smoothly from fully closed to fully open in all steering positions and throttle freeplay is correct. If the throttle does not move smoothly, close automatically, or if the cable is damaged, have the vehicle inspected by your dealer.

  • Page 72: Troubleshooting

    Troubleshooting Engine Will Not Start........P. 67 Unstable Engine Operation Occurs Overheating (High coolant temperature Intermittently ........... P. 75 indicator is on) ..........P. 68 Warning Indicators On or Flashing....P. 69 PGM-FI (Programmed Fuel Injection) Malfunction Indicator Lamp (MIL)....P. 69 ABS (Anti-lock Brake System) Indicator ..

  • Page 73: Engine Will Not Start

    Engine Will Not Start Starter Motor Operates But Starter Motor Does Not Engine Does Not Start Operate Check the following items: Check the following items: Check the correct engine starting Check the correct engine starting ● ● sequence. P. 26 sequence.

  • Page 74: Overheating

    Overheating (High coolant temperature indicator is on) The engine is overheating when the following Check that the radiator fan is operating, occurs: and then turn the ignition switch to the High coolant temperature indicator (Off) position. ● comes on. If the fan is not operating: Acceleration becomes sluggish.

  • Page 75: Warning Indicators On Or Flashing

    Warning Indicators On or Flashing PGM-FI (Programmed Fuel Indicator comes on or starts flashing while ● riding. Injection) Malfunction Indicator does not come on when the ● Indicator Lamp (MIL) ignition switch is in the (On) position. Indicator does not go off at speeds above ●...

  • Page 76: Other Warning Indications

    Other Warning Indications Fuel Gauge Failure Indication If the fuel system has an error, the fuel gauge indicators will be displayed as shown in the illustration. If this occurs, see your dealer as soon as possible.

  • Page 77: Tyre Puncture

    Tyre Puncture WARNING Repairing a puncture or removing a wheel requires special tools and technical expertise. Riding your vehicle with a temporary We recommend you have this type of service tyre repair can be risky. If the temporary performed by your dealer. repair fails, you can crash and be After an emergency repair, always have the seriously injured or killed.

  • Page 78: Electrical Trouble

    Electrical Trouble Battery Goes Dead Burned-out Light Bulb Charge the battery using a motorcycle All light bulbs on the vehicle are LEDs. If battery charger. there is an LED which is not turned on, see Remove the battery from the vehicle before your dealer for servicing.

  • Page 79: Blown Fuse

    Electrical Trouble Blown Fuse Blown Fuse Fuse box cover Before handling fuses, see “Inspecting and Replacing Fuses.” P. 41 Main fuse Fuse Box Fuses Spare Remove the front seat. P. 51 fuses Open the fuse box cover. Pull the fuses out one by one with the fuse puller in the tool kit and check for a blown fuse.
  • Page 80 Electrical Trouble Blown Fuse ABS Fuse Fuse case CBR150RA covers Remove the front seat. P. 51 ABS main Open the fuse case covers. fuse Pull the ABS fuses out one by one with ABS motor ABS sol fuse the fuse puller in the tool kit and check for fuse a blown fuse.
  • Page 81 Unstable Engine Operation Occurs Intermittently If the fuel pump filter is clogged, unstable engine operation will occur intermittently while riding. Even if this symptom occurs, you can continue to ride your vehicle. If unstable engine operation occurs even if sufficient fuel is available, have your vehicle inspected by your dealer as soon as possible.

  • Page 82: Information

    Information Keys............... P. 77 Instruments, Controls, & Other Features..P. 78 Caring for Your Vehicle........P. 79 Storing Your Vehicle......... P. 82 Transporting Your Vehicle ......P. 83 You & the Environment........P. 84 Serial Numbers........... P. 85 Fuels Containing Alcohol......... P. 86 Catalytic Converter ...........

  • Page 83: Keys

    Keys Keys Ignition Key Be sure to record the key number provided with the original keys. Store the spare key and key number in a safe location. To make a duplicate, take the spare key or the key number to your dealer. If you lose all ignition keys and the key number, the ignition switch assembly will probably have to be removed by your dealer to determine the...

  • Page 84: Instruments, Controls, & Other Features

    Instruments, Controls, & Other Features Instruments, Controls, & Ignition Cut-off System Other Features A banking (lean angle) sensor automatically stops the engine and fuel pump if the vehicle Ignition Switch falls over. To reset the sensor, you must turn the ignition switch to the (Off) position and back Leaving the ignition switch in the (On) position...

  • Page 85: Caring For Your Vehicle

    Frequent cleaning and polishing is important to After the vehicle dries, lubricate any moving ensure the life of your Honda. A clean vehicle parts. makes it easier to spot potential problems.
  • Page 86 Caring for Your Vehicle Washing Precautions Do not direct water at the air cleaner: ● Water in the air cleaner can prevent the Follow these guidelines when washing: engine from starting. Do not use high-pressure washers: ● Do not direct water near the headlight: High-pressure water cleaners can ●...
  • Page 87 Caring for Your Vehicle Aluminium Components Windscreen Aluminium will corrode from contact with dirt, Using plenty of water, clean the windscreen with mud, or road salt. Clean aluminium parts a soft cloth or sponge. (Avoid using detergents regularly and follow these guidelines to avoid or any kind of chemical cleaner on the scratches: windscreen.) Dry with a soft, clean cloth.

  • Page 88: Storing Your Vehicle

    Storing Your Vehicle Storing Your Vehicle Take care to keep battery electrolyte, brake fluid, or other chemical solvents off the If you store your vehicle outdoors, you should windscreen and screen garnish. They will consider using a full-body cover. damage the plastic. If you won't be riding for an extended period, follow these guidelines: Exhaust Pipe and Muffler...

  • Page 89: Transporting Your Vehicle

    Transporting Your Vehicle Transporting Your Vehicle After removing your vehicle from storage, inspect all maintenance items required by the If your vehicle needs to be transported, it Maintenance Schedule. should be carried on a motorcycle trailer or a flatbed truck or trailer that has a loading ramp or lifting platform, and motorcycle tie-down straps.

  • Page 90: You & The Environment

    You & the Environment You & the Environment Recycle Wastes Put oil and other toxic wastes in approved Owning and riding a vehicle can be enjoyable, containers and take them to a recycling centre. but you must do your part to protect the Call your local or state office of public works or environment.

  • Page 91: Serial Numbers

    Serial Numbers Serial Numbers The frame and engine serial numbers uniquely identify your vehicle and are required in order to register your vehicle. They may also be required when ordering replacement parts. You should record these numbers and keep them in a safe place. Frame number Engine number...

  • Page 92: Fuels Containing Alcohol

    Fuels Containing Alcohol Fuels Containing Alcohol The use of petrol containing more than 10% ethanol may: Some conventional fuels blended with alcohol Damage the painting of the fuel tank. ● are available in some locales to help reduce Damage the rubber tubes of the fuel line. ●...

  • Page 93: Catalytic Converter

    A defective catalytic converter contributes to air pollution and can impair your engine's performance. A replacement unit must be an original Honda part or equivalent.

  • Page 94: Specifications

    Specifications Main Components ■ Displacement 149.16 cm (9.099 cu-in) Overall length 1,983 mm (78.1 in) Bore x stroke 57.300 x 57.843 mm (2.2559 x 2.2773 in) Overall width 700 mm (27.6 in) Compression 11.3 : 1 ratio Overall height 1,090 mm (42.9 in) CA/LO Unleaded petrol Wheelbase...
  • Page 95 Specifications Service Data ■ Recommended Honda DOT 3 or DOT 4 Brake Fluid brake fluid Front 100/80-17M/C 52P Tyre size Cooling system Rear 130/70-17M/C 62P 0.58 L (0.61 US qt, 0.51 Imp qt) capacity Tyre type Bias-ply, tubeless Recommended Front...
  • Page 96 Specifications Bulbs ■ Headlight Brakelight/Taillight Front turn signal Rear turn signal Position light License plate light Fuses ■ Main fuse 20 A MM type 10 A Other fuse CA/LO type 20 A, 10 A Torque Specifications ■ Seat mounting bolt 10 N·m (1.0 kgf·m, 7 lbf·ft)
  • Page 98 Honda Cambodia – NCX www.ncxhonda.com.kh 4PK45E00 00X4P-K45-E000...
