COOLING SYSTEM

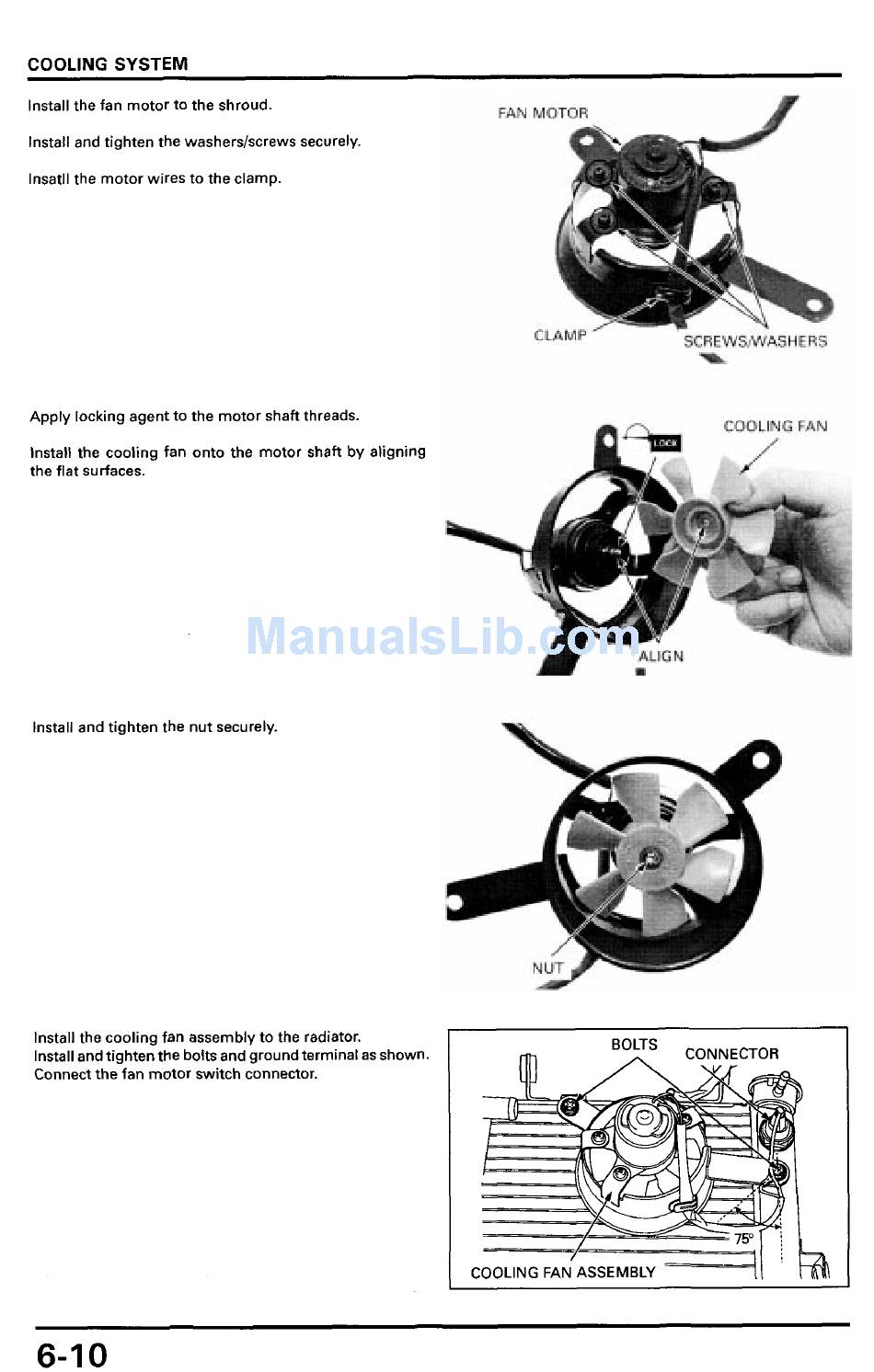

Install the fan motor to the shroud.
Install and tighten the washers/screws securely.
lnsatll the motor wires to the clamp.
Apply locking agent to the motor shaft threads.
Install the cooling fan onto the motor shaft by aligning
the flat surfaces.
Install and tighten the
nut
securely.
Install the cooling fan assembly to the radiator.
Install and tighten the bolts and ground terminal as shown.
Connect the fan motor switch connector.
I
rm
CONNECTOR
COOLING FAN
- 1
ASSEMBLY
