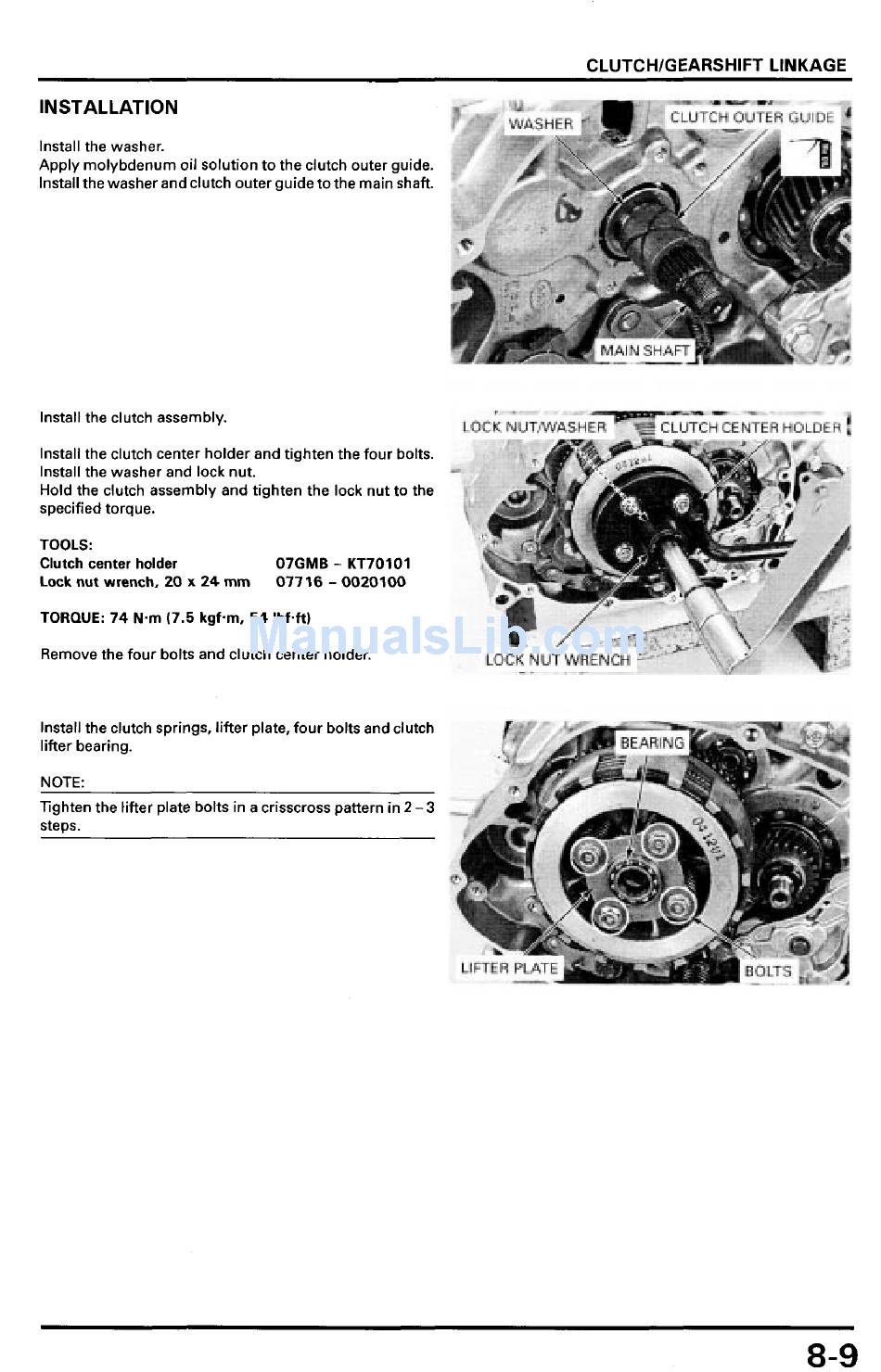

CLUTCHlGEARSHlFT LINKAGE
INSTALLATION
Install the washer.
Apply molybdenum oil solution to the clutch outer guide.
Install the washer and clutch outer guide to the main shaft.
Install the clutch assembly.
Install the clutch center holder and tighten the four bolts.
Install the washer and lock nut.
Hold the clutch assembly and tighten the lock nut to the
specified torque.
TOOLS:
Lock nut wrench, 20 x 24 mm
TORQUE: 74 N.m (7.5 k g f m , 54 I b f W
Remove the four bolts and clutch center holder.
Clutch center holder 07GMB
-
KT70101
07716
-
0020100
Install the clutch springs, lifter plate, four bolts and clutch
lifter bearing.
NOTE:
Tighten the lifter plate bolts in a crisscross pattern in 2 - 3
stens.
