CLUTCHlGEARSHlFT LINKAGE

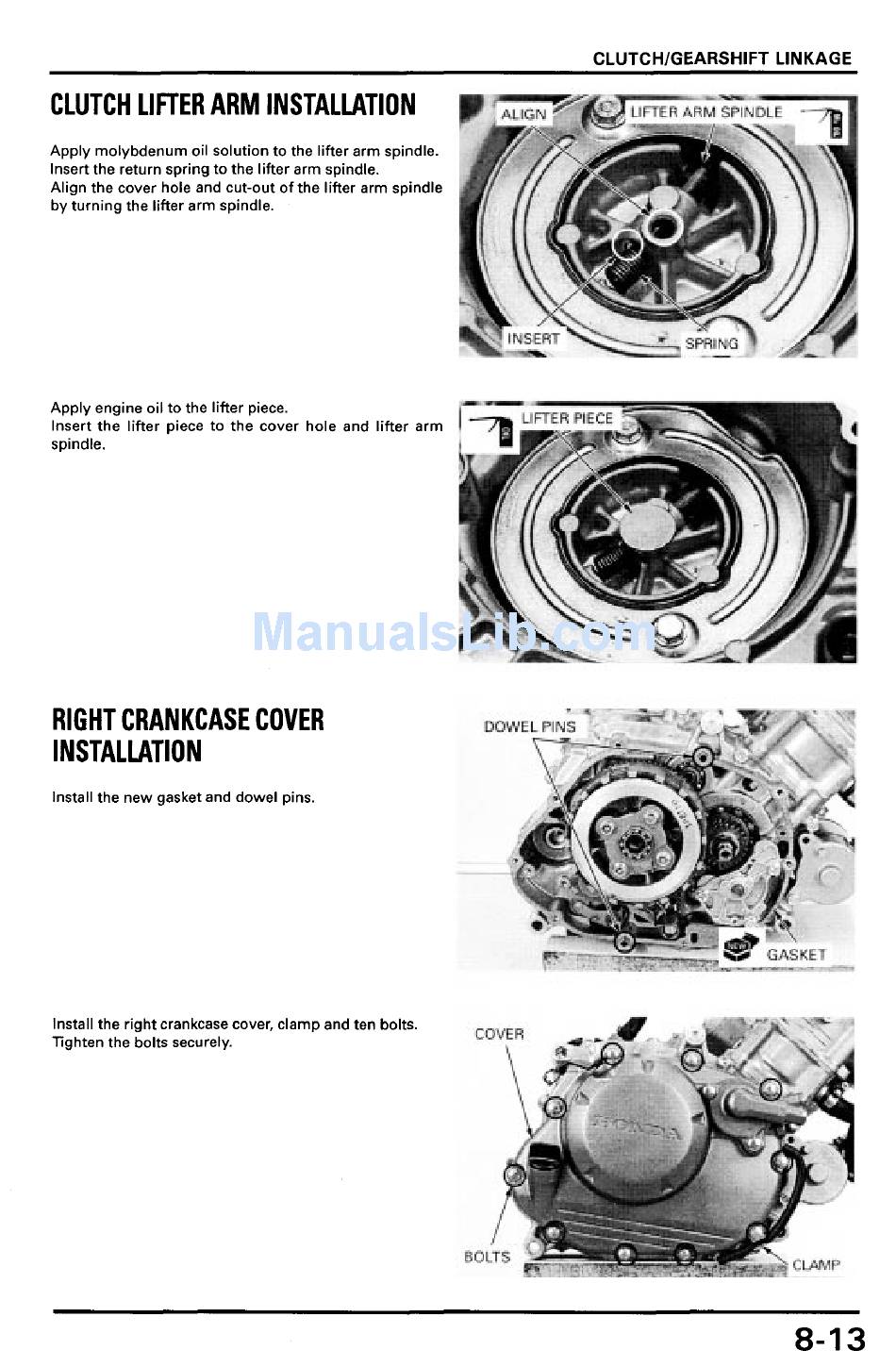

CLUTCH LIFTER ARM INSTALLATION
Apply molybdenum oil solution to the lifter arm spindle.
Insert the return spring to the lifter arm spindle.
Align the cover hole and cut-out of the lifter arm spindle
by turning the lifter arm spindle.
Apply engine oil to the lifter piece.
Insert the lifter piece to the cover hole and lifter arm
spindle.
RIGHT CRANKCASE COVER
INSTALLATION
Install the new gasket and dowel pins.
Install the right crankcase cover, clamp and ten bolts.
Tighten the bolts securely.
8-13
