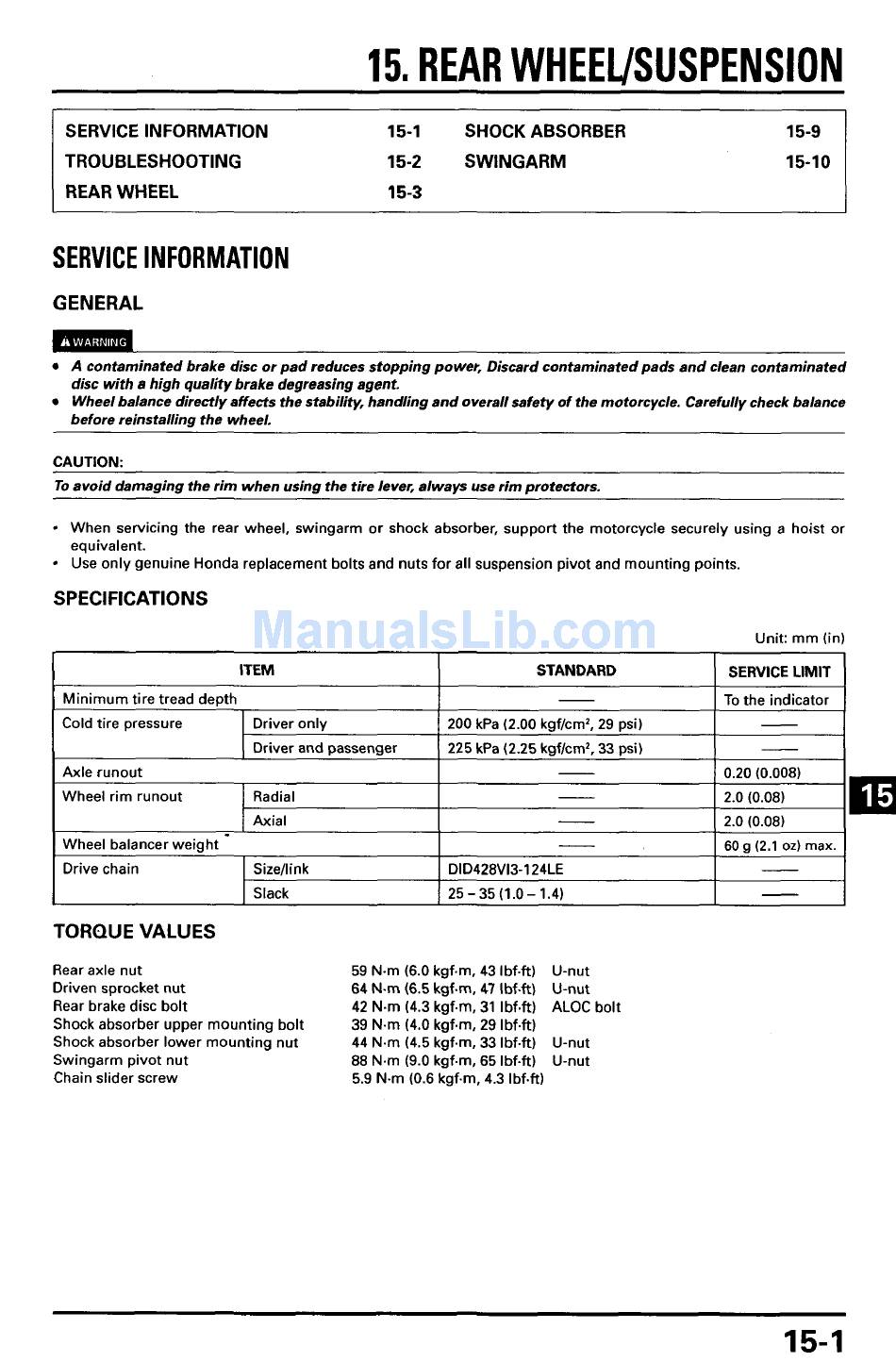

15. REAR WHEEUSUSPENSION
ITEM
Minimum tire tread depth
Cold tire pressure Driver only
Driver and passenger
Axle runout
Wheel rim runout Radial
Axial
Wheel balancer weight
Drive chain
I
Sizellink
SERVICE INFORMATION 15-1
SHOCK ABSORBER
15-9
TROUBLESHOOTING 15-2 SWINGARM 15-10
REAR WHEEL 15-3
STANDARD SERVICE LIMIT
To
the indicator
-
-
0.20 (0.008)
2.0 (0.08)
2.0 (0.08)
60
g
(2.1
0 2 )
max.
-
200 kPa (2.00 kgf/cm2, 29 psi)
225 kPa (2.25 kgf/cm2, 33 psi)
-
-
-
-
DID428V13-124LE
-
SERVICE INFORMATION
I
GENERAL
Slack I25-35(1.0-1.4)
-
1
A contaminated brake disc or pad reduces stopping power, Discard contaminated pads and clean contaminated
disc with a high quality brake degreasing agent.
Wheel balance directly affects the stability, handling and overall safety of the motorcycle. Carefully check balance
before reinstalling the wheel.
CAUTION:
To avoid damaging the rim when using the tire lever, always use rim protectors.
*
When servicing the rear wheel, swingarm or shock absorber, support the motorcycle securely using a hoist or
equivalent.
Use only genuine Honda replacement bolts and nuts for all suspension pivot and mounting points.
SPECIFICATIONS
Unit: m m (in)
TORQUE VALUES
Rear axle nut 59 N.m (6.0 kgfm, 43 Ibf.ft) U-nut
Driven sprocket nut 64 N.m (6.5 kgfm, 47 Ibf.ft) U-nut
Rear brake disc bolt
42 N.m (4.3 kgfm, 31 Ibf.ft)
ALOC
bolt
Shock absorber upper mounting bolt 39 N m (4.0 kgfm, 29 Ibf.ft)
Shock absorber lower mounting nut 44 N m (4.5 kgf.m, 33 Ibf.ft) U-nut
Swingarm pivot nut 88 N.m (9.0 kgf.m, 65 I b f W U-nut
Chain slider screw
5.9 N.m (0.6 kgf.m, 4.3 I b f W
15-1
