8. Shift the CR shaft to the right to remove the CR assembly from the platen gap lever and left
parallelism adjustment bushing. (See Figure 3-48.)
9. Take the CR shaft out from the CR assembly.
10. Remove the oil pad from the CR assembly.
Place the oil pad with the oiled side down onto the CR guide when mounting the oil pad
into the CR assembly.
Install the CR shaft with the edge whose side is cut in a "D" shape to the left.
When installing the platen gap sub lever onto the CR shaft, insert the side marked with
an " { " out, set the platen gap lever to 0, and engage the platen gap sub lever notch with
the platen gap lever by slipping it upward. (See Figure 3-49.)
When installing the CR assembly, make sure the timing belt has no torsion and is
correctly placed between the CR assembly and top frame.
Fit the groove on the upper edge of the CR assembly to the top edge of the top frame.
(See Figure 3-49.)
Fit the CR shaft into the U-cut of the slider. (See Figure 3-51.)
To turn the right parallelism adjustment bushing to the rear, support it by the bottom and
push the top edge outward.
When mounting the compression spring (19.9 g) onto the sub pulley holder, fit the spring
to the pin on the left end of the holder first.
3-38
Download Service Manual and Resetter Printer at http://printer1.blogspot.com

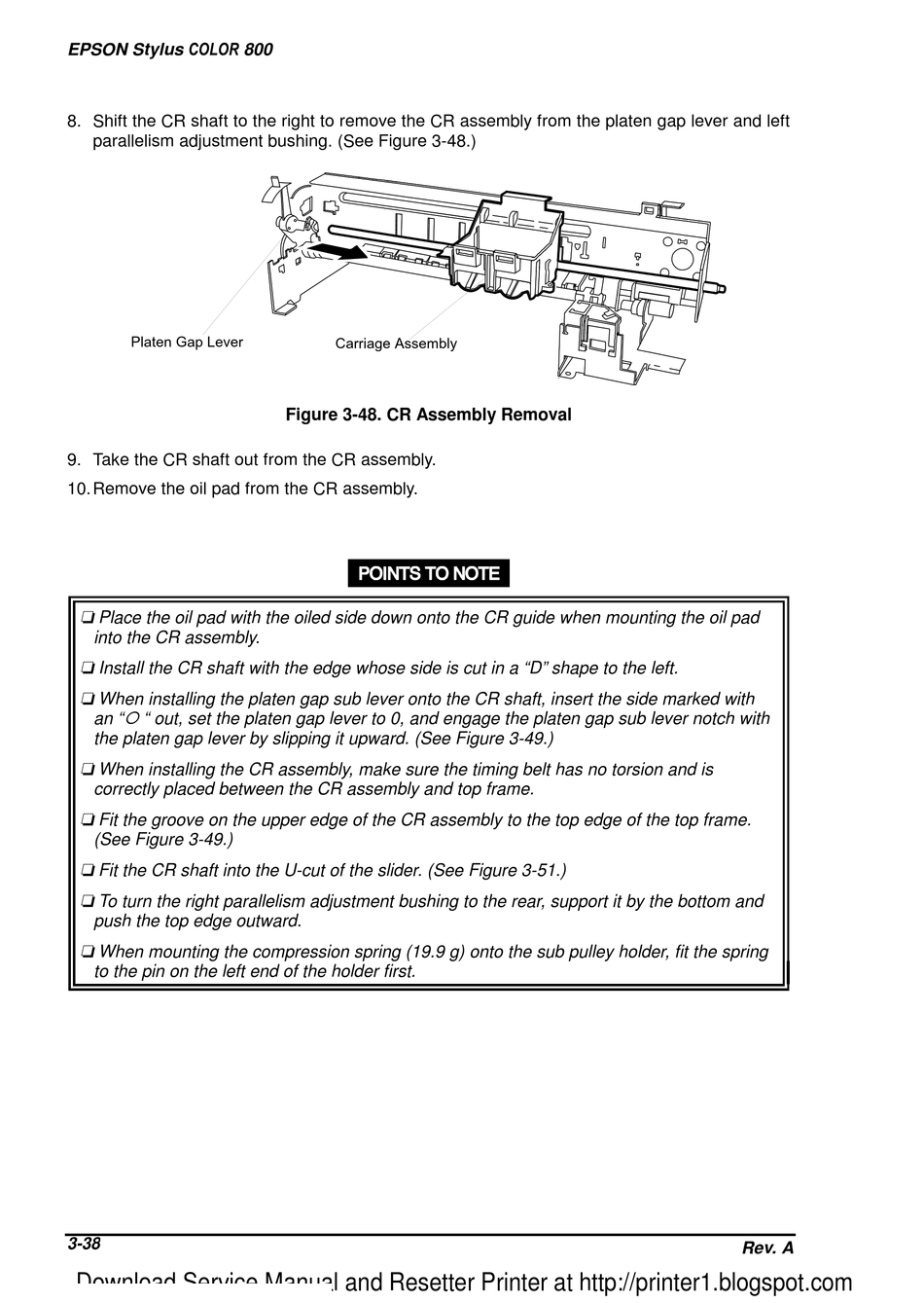

Figure 3-48. CR Assembly Removal
