Index Sensor Removal; Media Present Sensor Removal - Lexmark MS510 Service Manual

Index sensor removal

1
Remove the left cover. See
2
Remove the right cover. See
3
Remove the rear door and cover. See
4
Remove the power supply. See
5
Remove the power supply shield. See
6
Remove the duplex. See
7
Disconnect the cable JINDEX1 from the system board.
8

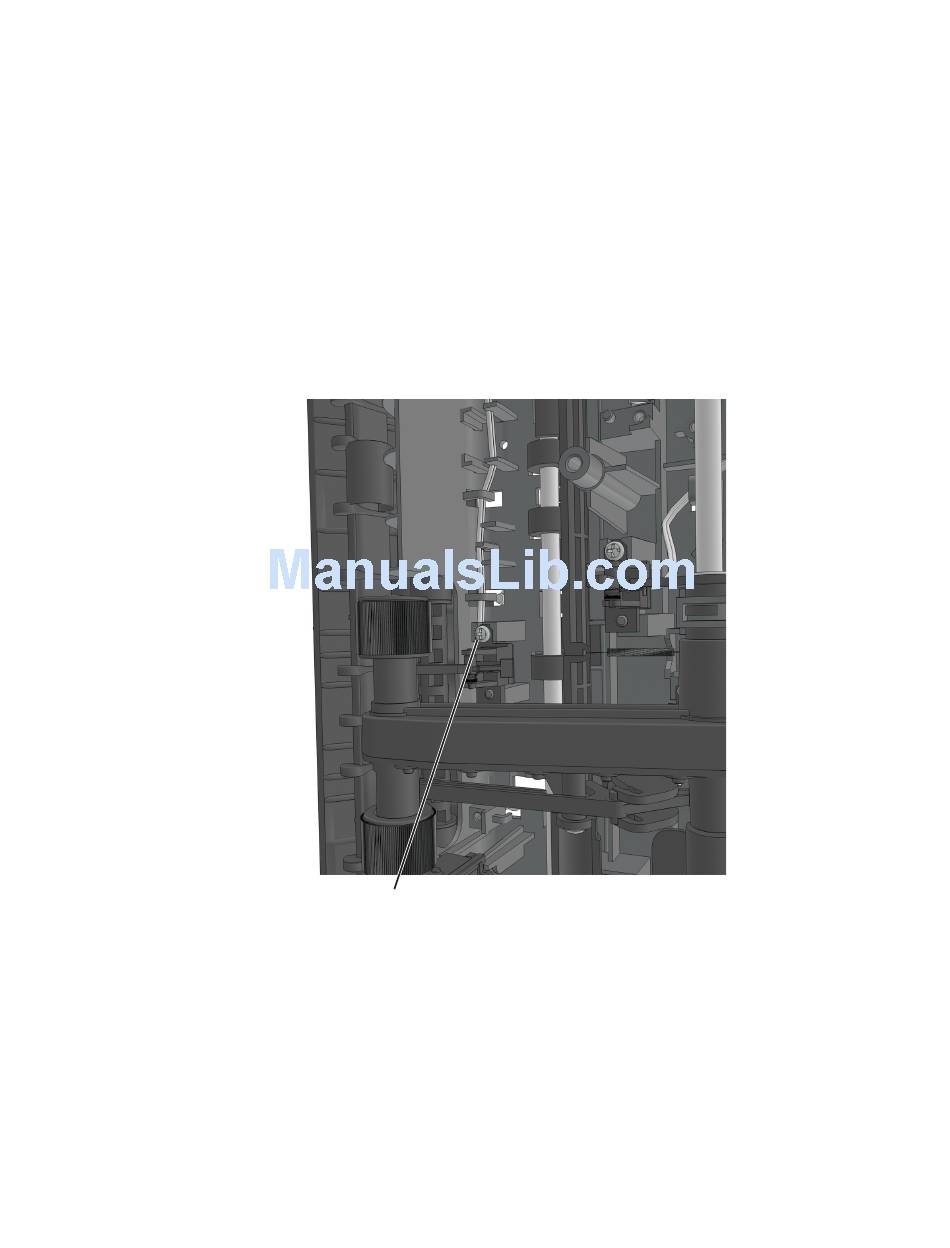

Remove the screw (A).
9
Route off the cable, and then remove the index sensor.

Media present sensor removal

1
Remove the left cover. See
2
Remove the rear door and cover. See
3
Remove the power supply. See
4
Remove the power supply shield. See
5
Remove the duplex. See
