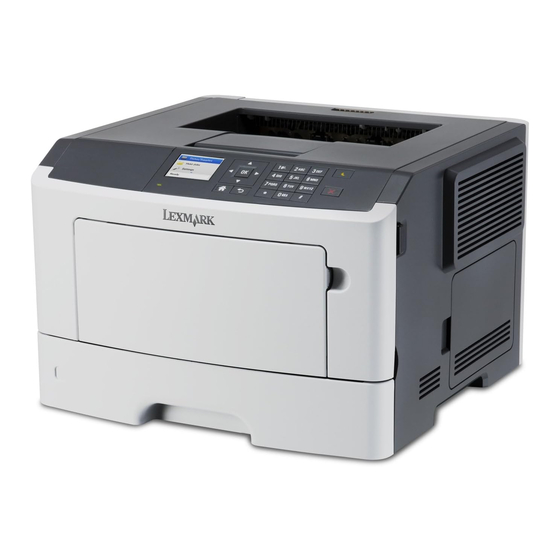

Lexmark MS510 Printing Manual
Printing guide
Hide thumbs
Also See for MS510:
- Service manual (344 pages) ,
- User manual (255 pages) ,
- Manual (20 pages)
Advertisement
Quick Links
Printing Guide
Loading trays
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all trays
closed until needed.
1
Pull the tray completely out.
Note: Do not remove trays while a job prints or while Busy appears on the printer display. Doing so may cause a jam.
2
Squeeze, and then slide the width guide tab to the correct position for the size of the paper you are loading.
1
2
Printing Guide
Page 1 of 5
Advertisement
Related Manuals for Lexmark MS510
Summary of Contents for Lexmark MS510
-
Page 1: Loading Trays
Printing Guide Page 1 of 5 Printing Guide Loading trays CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all trays closed until needed. Pull the tray completely out. Note: Do not remove trays while a job prints or while Busy appears on the printer display. Doing so may cause a jam. Squeeze, and then slide the width guide tab to the correct position for the size of the paper you are loading. - Page 2 Printing Guide Page 2 of 5 Unlock the length guide. Squeeze, and then slide the length guide tab to the correct position for the size of the paper you are loading. Notes: • For some paper sizes like letter, legal, and A4, squeeze and slide the length guide tab backward to accommodate their length.
- Page 3 Printing Guide Page 3 of 5 Flex the sheets back and forth to loosen them. Do not fold or crease the paper. Straighten the edges on a level surface. Load the paper stack. Notes: • Load with the printable side facedown when using recycled or preprinted paper. •...
- Page 4 Printing Guide Page 4 of 5 • Load letterhead facedown, with the top edge of the sheet toward the front of the tray. For two‑sided printing, load letterhead faceup with the bottom edge of the sheet toward the front of the tray. •...
-
Page 5: Setting The Paper Size And Type
Printing Guide Page 5 of 5 Setting the paper size and type From the printer control panel, navigate to: > Settings > > Paper Menu > > Paper Size/Type > Press the up or down arrow button to select the tray or feeder, and then press Press the up or down arrow button to select the paper size, and then press Press the up or down arrow button to select the paper type, and then press to change the settings.
