4514-630, -635, -636, -638, -639, -649

250/550-sheet option tray removals

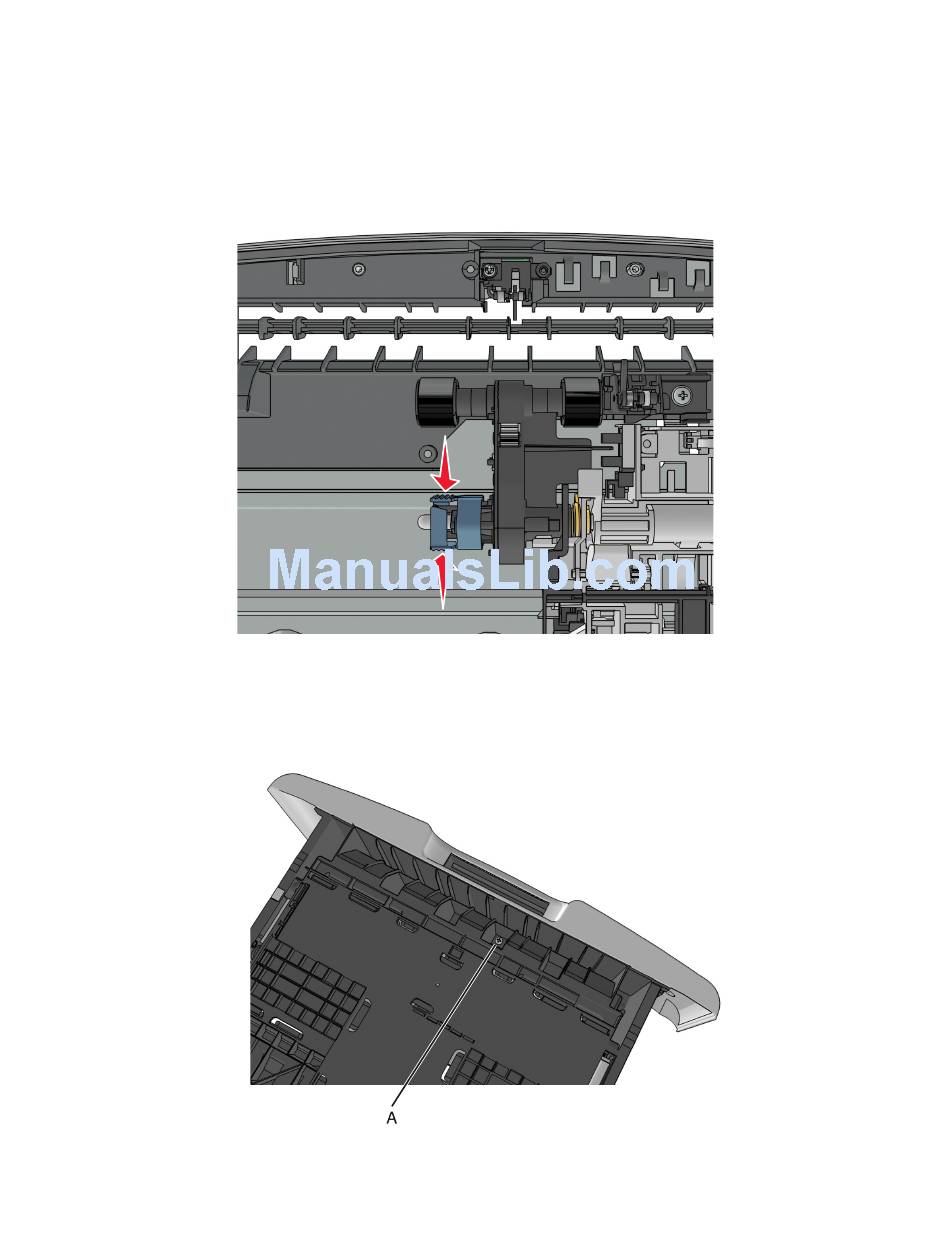

Pick roller removal

Press the latches, and then remove the pick roller.

Separator roll assembly removal

1
Remove the screw (A) from under the tray insert.
Repair information
250
