CN18: FDD Connector Pin Assignment
Pin Description
1 +5V
2 INDEX
3 +5V
4 DRIVE0
5 +5V
6 DSKCHG
7 No connector
8 READY
9 HDOUT
10 MOTOR ON
11 No connector
12 DIR
13 HDSEL

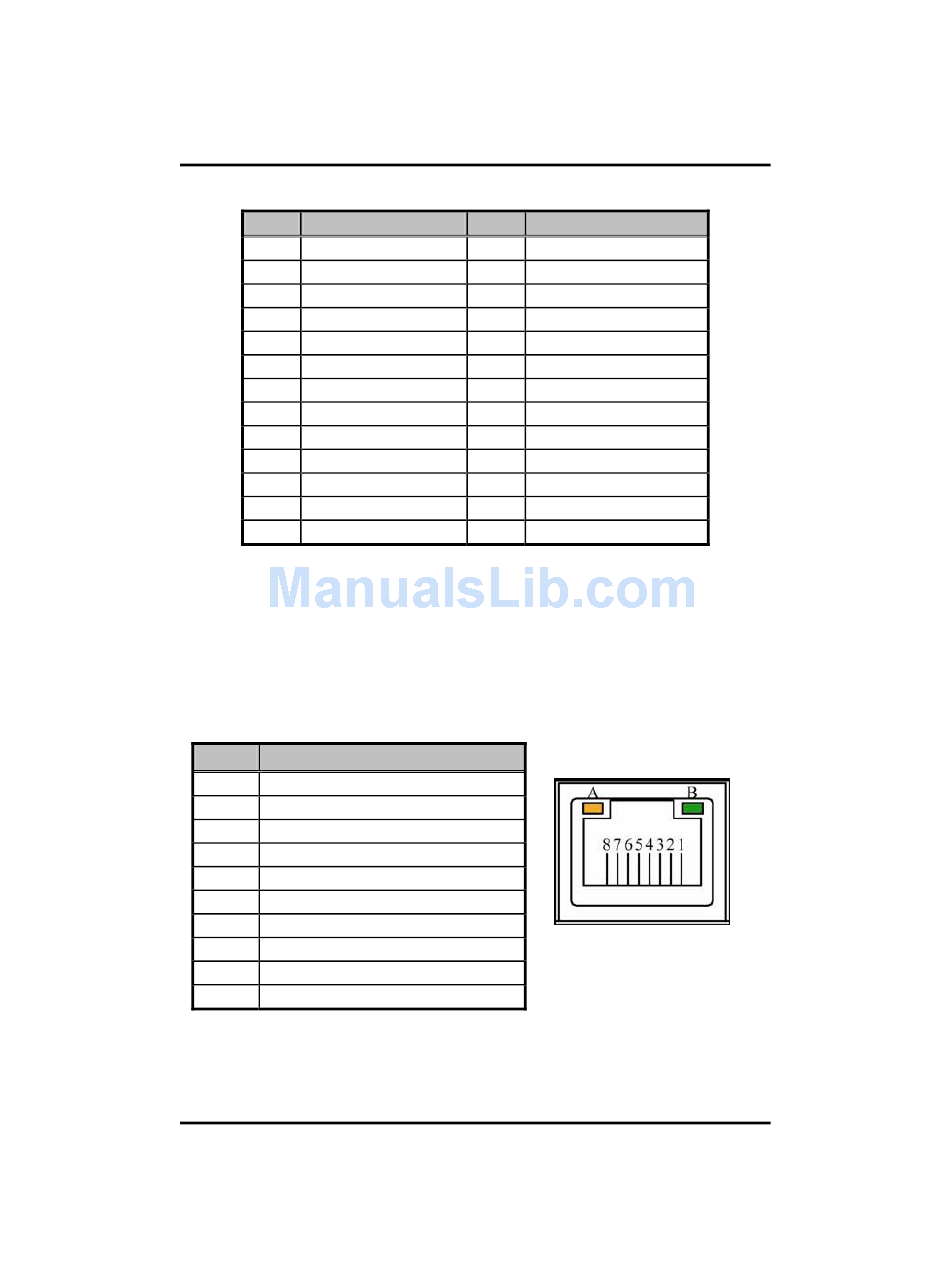

2.4.8 Ethernet RJ-45 Connector: CN15, CN16

The board is equipped with a RJ-45 Ethernet connector. To connect
the board to a 10-Base-T or 100-Base-T hub, just plug one end of the
cable into the CN15 and CN16 connectors, and connect the other end
(phone jack) to a 10-Base-T hub or 100-Base-T or 1000-Base-T hub.
CN15/CN16: RJ-45 connector Pin Assignment
Pin
1 TX+ (Data transmission positive)
2 TX- (Data transmission negative)
3
Rx+(Data reception positive)
4
RJ45 termination
5
RJ45 termination
6
Rx- (Data reception negative)
7
RJ45 termination
8
RJ45 termination
A Active LED
B 100/1000 LAN LED
Jumpers and Connectors
EP820 All-In-One EPIC Board User's Manual
Pin
14 STEP
15 GND
16 WDATA
17 GND
18 WGATE
19 GND
20 TRK0
21 GND
22 WPT
23 GND
24 RDATA
25 GND
26 SIDE0
Signal
Description
CN15/CN16
21
