EP820 All-In-One EPIC Board User's Manual

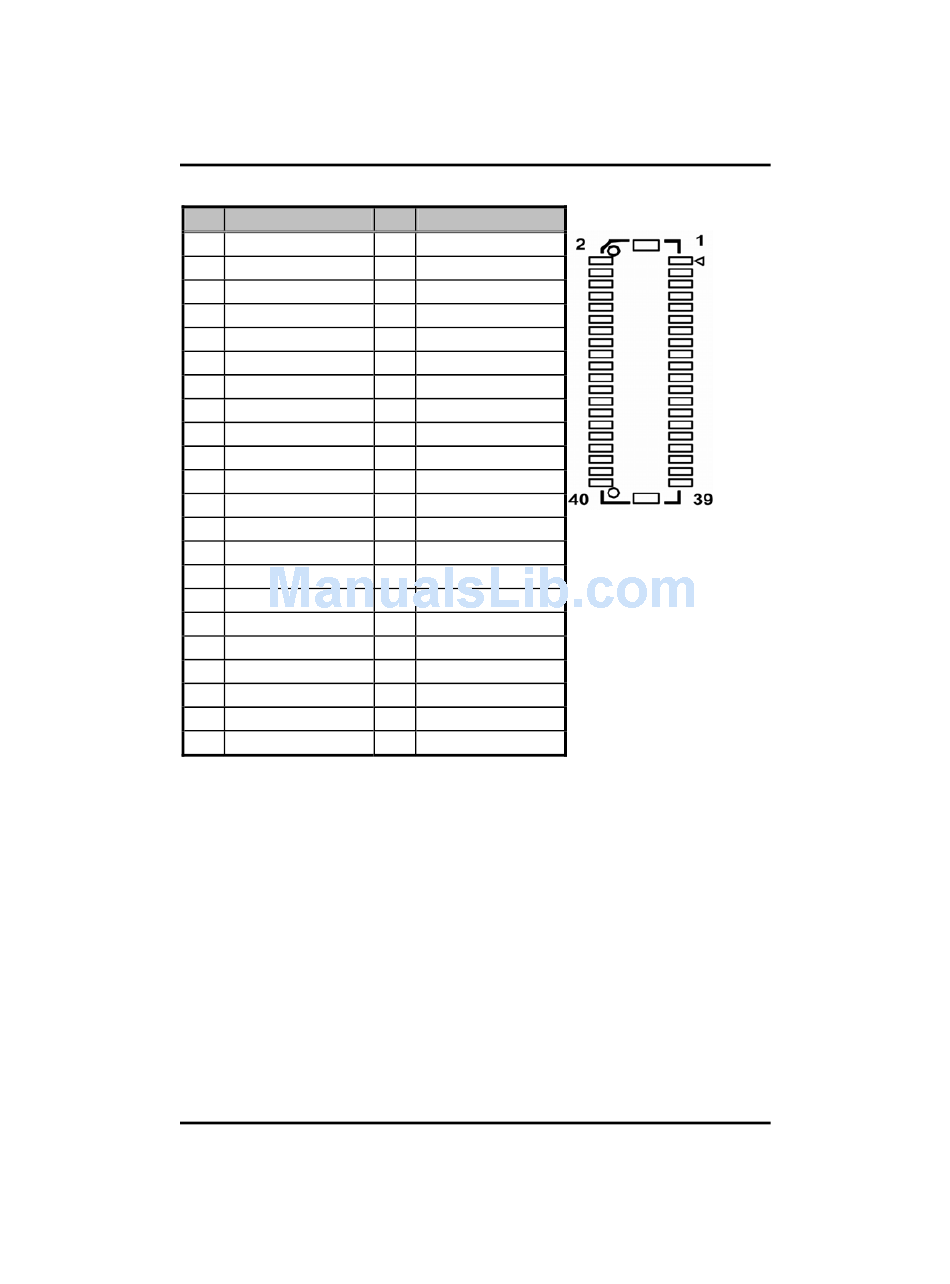

CN7: JSTConnector for LVDS Flat Panel
Pin Description
1 VCCM
3 VCCM
5 VCCM
7 N.C.
9 GND
11 Channel B D3-
13 Channel B D3+
15 GND
17 Channel B CLK-
19 Channel B CLK+
21 GND
23 Channel A D0-
25 Channel A D0+
27 GND
29 Channel A D1-
31 Channel A D1+
33 GND
35 Channel A D2-
37 Channel A D2+
39 GND
1 VCCM
3 VCCM

2.4.10 Parallel Port or Floppy Connector: CN13

The board has a 26-pin header connector CN13 to support one
onboard port. The onboard PRN of the board is a multi-mode parallel
port that supports the following modes:
1. Standard mode:
IBM PC/XT, PC/AT and PS/2™ compatible with bi-directional
parallel port
2. Enhanced mode:
Enhance parallel port (EPP) compatible with EPP 1.7 and EPP
1.9 (IEEE 1284 compliant)
24
Pin Description
2 VCCM
4 VCCM
6 VCCM
8 N.C.
10 GND
12 Channel B D0-
14 Channel B D0+
16 GND
18 Channel B D1-
20 Channel B D1+
22 GND
24 Channel B D2-
26 Channel B D2+
28 GND
30 Channel A D3-
32 Channel A D3+
34 GND
36 Channel A CLK-
38 Channel A CLK+
40 GND
2 VCCM
4 VCCM
CN7
Jumpers and Connectors
