2.4.10 Ethernet RJ-45 Connector: CN15, CN16

The EP812 Series is equipped with a high performance Plug
and Play Ethernet interface which is fully compliant with the
IEEE 802.3 standard, and consisting of a RJ-45 connector LAN
Pin Assignment

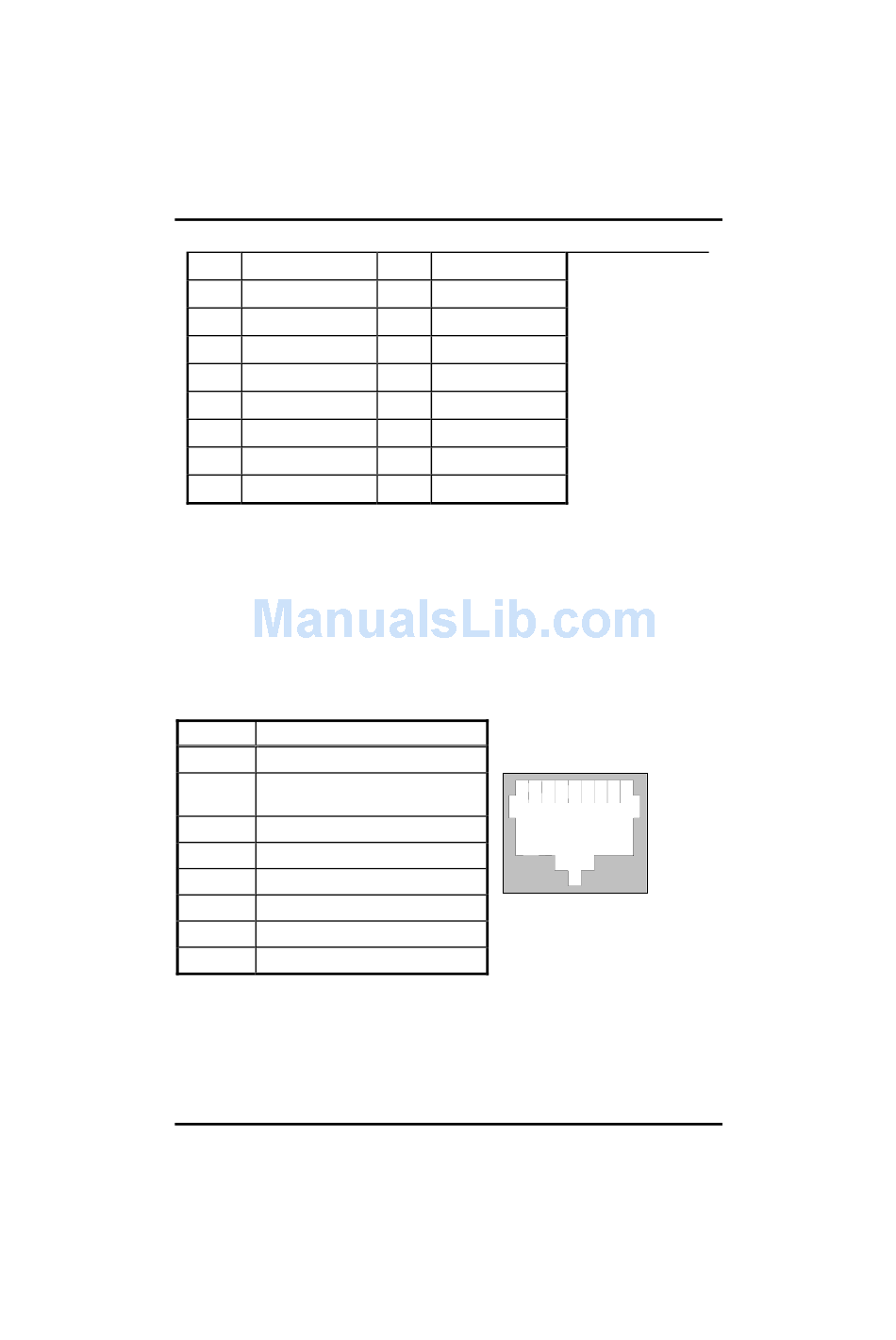

LAN1: RJ-45 Connector Pin Assignment
Pin
1 Tx+ (Data transmission positive
Tx- (Data
2
negative)
3 Rx+(Data reception positive)
4 RJ45 termination
5 RJ45 termination
6
Rx- (Data reception negative)
7 RJ45 termination
8 RJ45 termination
Feature
10Mb/s and 100Mb/s operations
Supports 10Mb/s and 100Mb/s N-Way auto negotiation
Full duplex capability
Hardware Description
®
M All-in-One Capa Board User's Manual
10 GND
12 GND
14
GND
16 GND
18 GND
20 GND
22 GND
24 GND
26
NC
Signal
transmission
1 2 3 4 5 6 7 8
RJ-45
