2.4.5

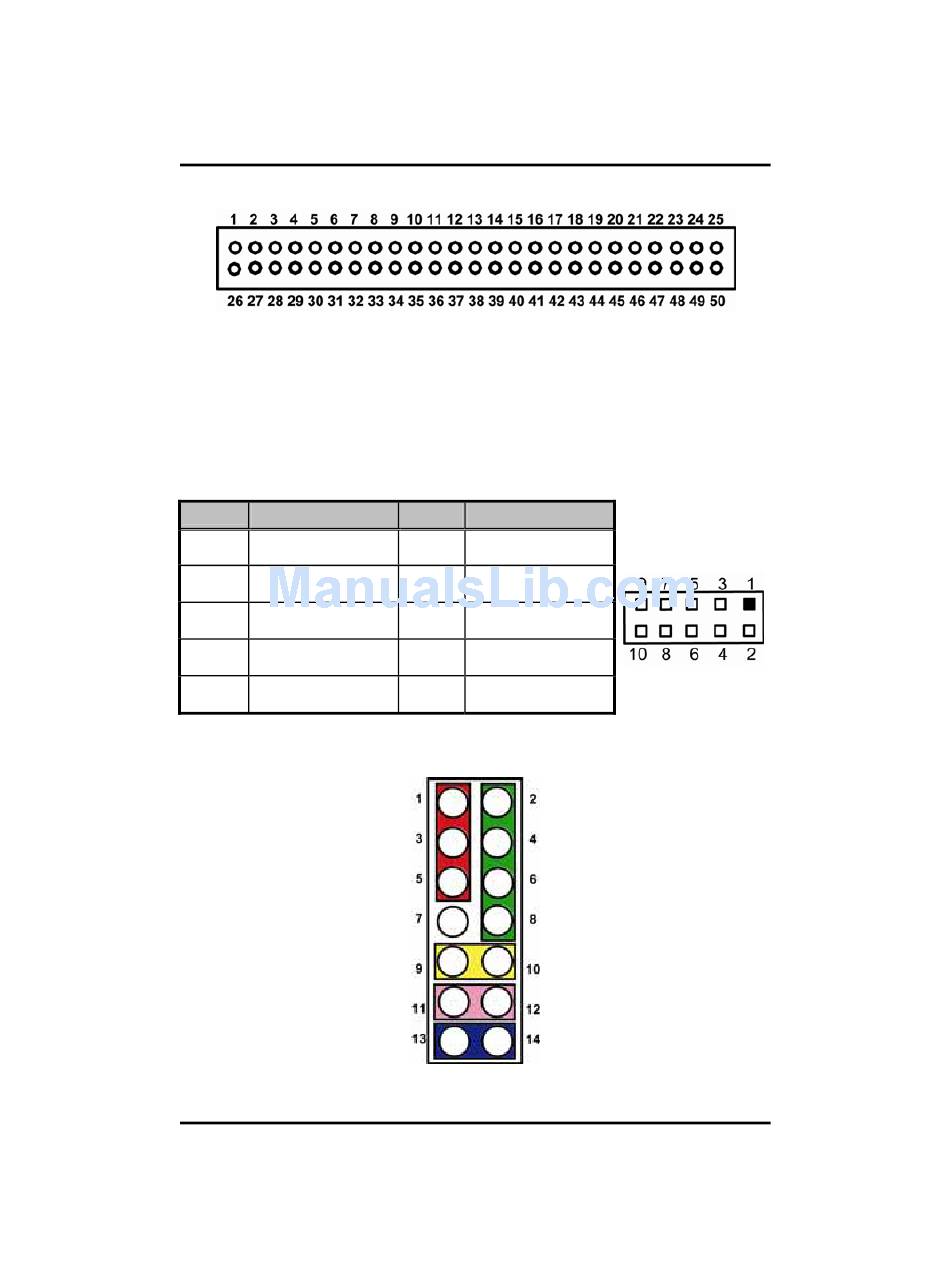

Digital I/O Port (DIO) Connector: CN10

The board is equipped an 8-channel digital I/O connector CN10 that
meets requirements for a system customary automation control. The
digital I/O can be configured to control cash drawers, sense warning
signals from an Uninterrupted Power System (UPS), or perform store
security control. The digital I/O is controlled via software programming.
Pin
Description
1 Digital Input 1
3 Digital Input 2
5 Digital Input 3
7 Digital Input 4
9 GND
2.4.6

Flat Panel Bezel Connector: CN11

Jumpers and Connectors
EP820 All-In-One EPIC Board User's Manual
Pin Description
2 Digital Output 1
4 Digital Output 2
6 Digital Output 3
8 Digital Output 4
10 GND
CN10
19
