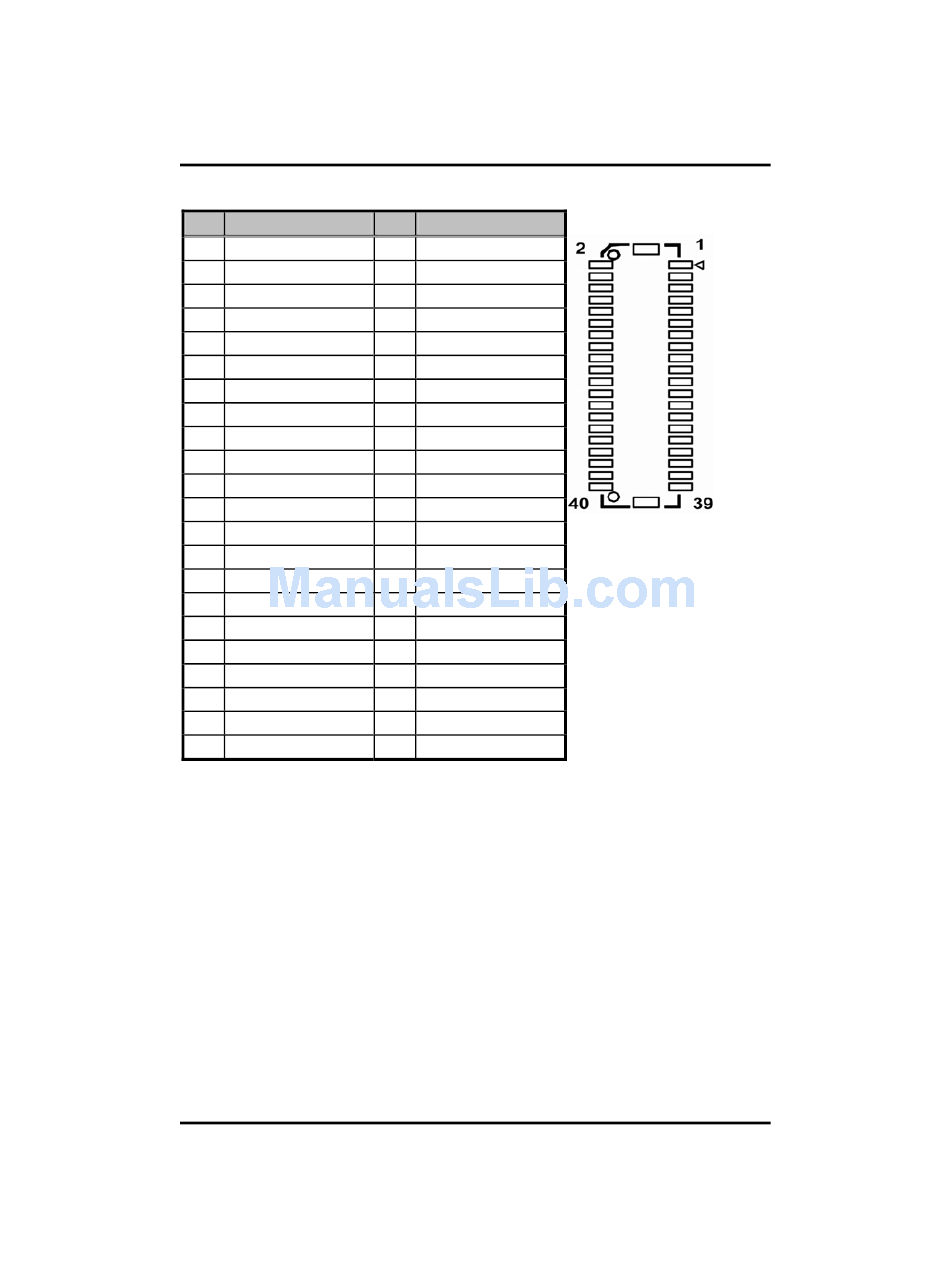

CN5: JSTConnector for LVDS Flat Panel
Pin Description
1 VCCM
3 VCCM
5 VCCM
7 N.C.
9 GND
11 N.C.
13 N.C.
15 GND
17 Channel B CLK-
19 Channel B CLK+
21 GND
23 Channel A D0-
25 Channel A D0+
27 GND
29 Channel A D1-
31 Channel A D1+
33 GND
35 Channel A D2-
37 Channel A D2+
39 GND
1 VCCM
3 VCCM
Jumpers and Connectors
EP820 All-In-One EPIC Board User's Manual
Pin Description
2 VCCM
4 VCCM
6 VCCM
8 N.C.
10 GND
12 Channel B D0-
14 Channel B D0+
16 GND
18 Channel B D1-
20 Channel B D1+
22 GND
24 Channel B D2-
26 Channel B D2+
28 GND
30 N.C.
32 N.C.
34 GND
36 Channel A CLK-
38 Channel A CLK+
40 GND
2 VCCM
4 VCCM
CN5
23
