3. High speed mode:
Microsoft and Hewlett Packard extended capabilities port (ECP)
IEEE 1284 compliant
The address selection of the onboard parallel port, LPT1 (378H) or
disabled, can be configured within the BIOS CMOS setup utility.

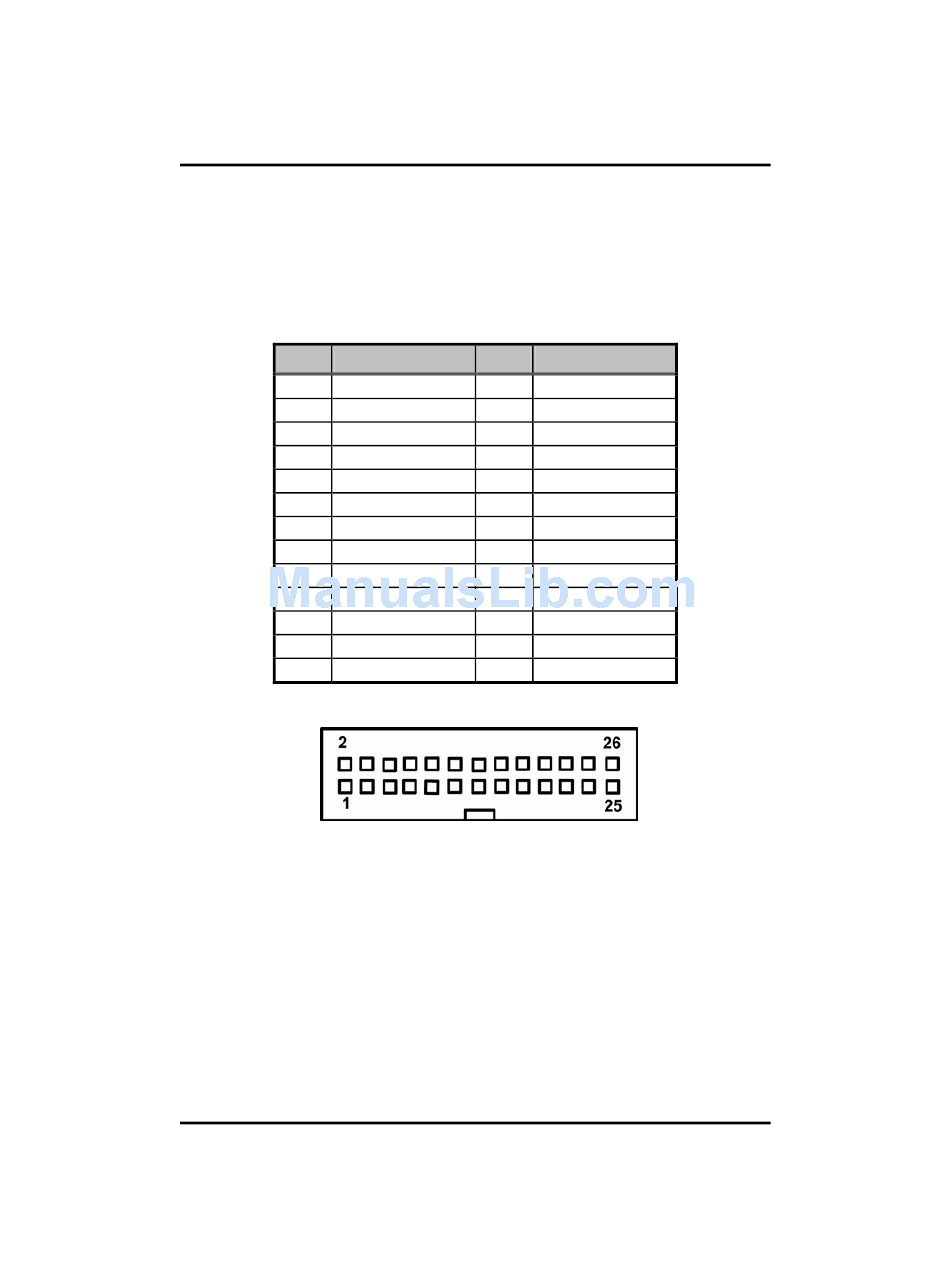

Pin Description
1 Auto Form Feed#
3 Error#
5 Initialize#
7 Printer Select In#
9 GND
11 GND
13 GND
15 GND
17 GND
19 GND
21 GND
23 GND
25 NC
CN13
Jumpers and Connectors
EP820 All-In-One EPIC Board User's Manual
Pin Description
2 Strobe#
4 Data 0
6 Data 1
8 Data 2
10 Data 3
12 Data 4
14 Data 5
16 Data 6
18 Data 7
20 Acknowledge#
22 Busy
24 Paper Empty#
26 Printer Select
