Carriage - GRAPHTEC Craft ROBO CC100-20 Service Manual

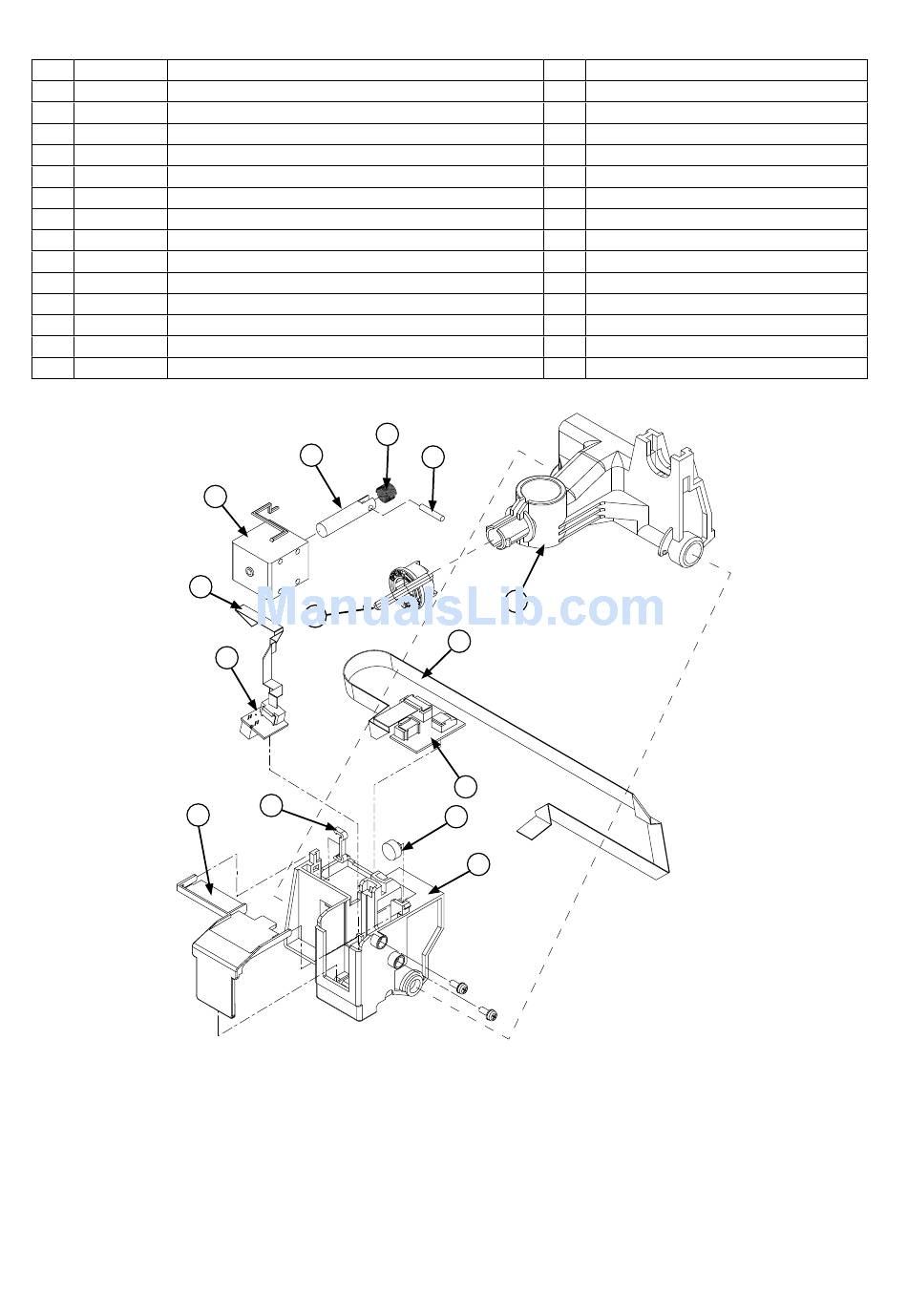

6.2 Carriage

No. Part No.
1 500051940 Solenoid
2 500051940 Solenoid
3 621243030 Reset Spring
4 380162100 Pin
5 621240064 Rear Guide
6 621243042 Lock Lever
7 692124120 Auto-registration Sensor Flexible Cable
8 796212004 Auto-registration Sensor Board Assembly
9 692124112 Y Flexible Cable
10 772124520 Relay Board
11 621243004 Carriage
12 621243030 Carriage Cover
13 621243070 Flexible Cable Clamp
14 621240090 Cushion
Carriage
7
12
CC100-UM-251-9370
Desscription
2
1
6
8
13
Q'ty
3
4
5
9
10
14
11
6-3
Remarks
1 SCD-0829FT
1
1
1
1
1
1 FPC304502
1
1
1
1
1
1
1
6 PARTS LIST
