4 DISASSEMBLY AMD REASSEMBLY
4.8 How to Replace the Y Motor
Disassembly
(1) Detach the left side cover (see Section 4.1).
(2) Detach the top cover (see Section 4.2).
(3) Detach the right side cover (see Section 4.3).
(4) Detach the two pressure springs from the pressure bracket (see Section 4.7).
(5) Detach the rear guide (see Section 4.5).
(6) Disconnect the Y motor cable which is connected to J5 on the main board.
(7) Remove the two M3L6 TP head screws holding the Y motor, and then detach the Y motor.

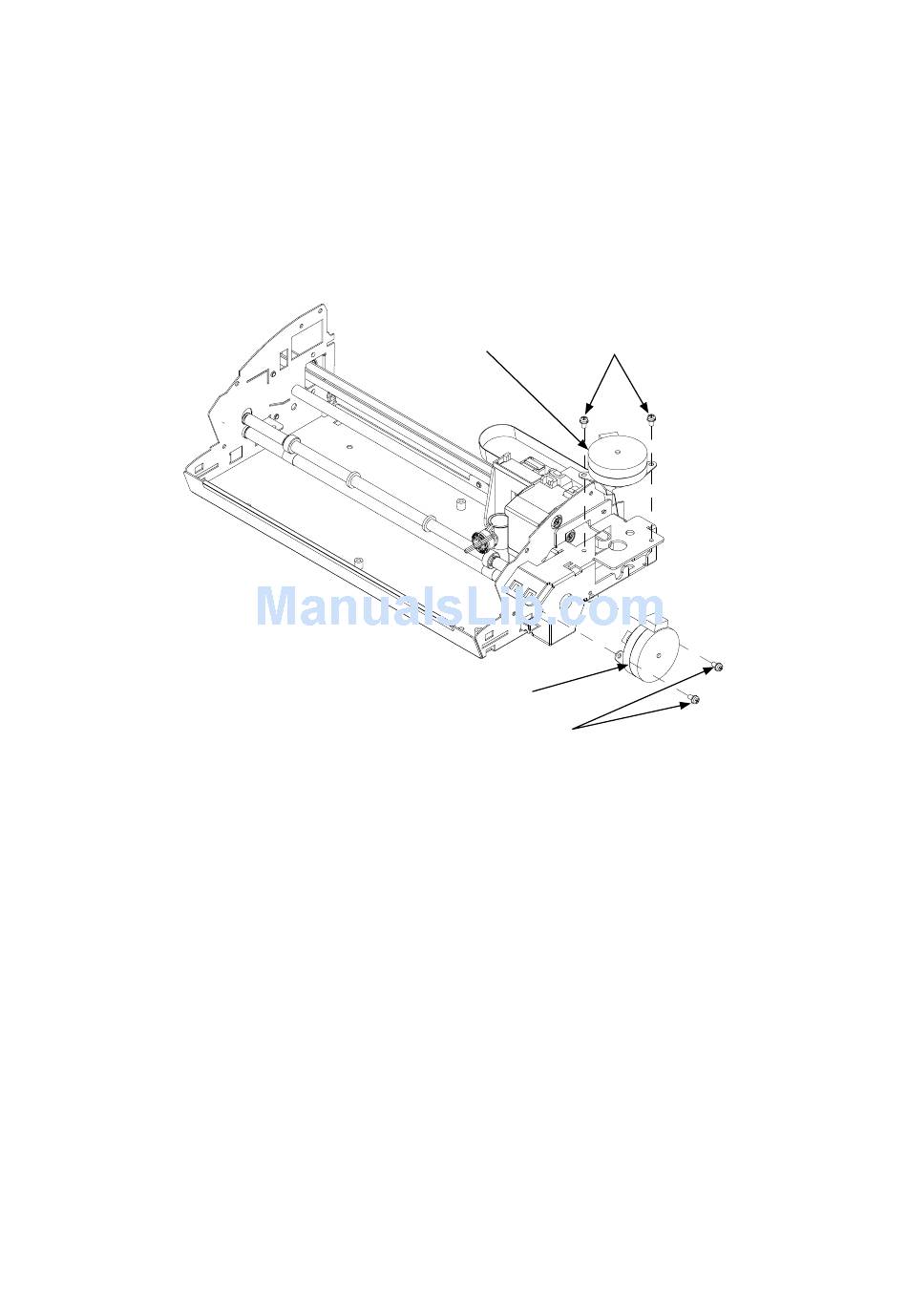

Y motor
M3L6 TP head screw
X motor
M3L6 TP head screw
Reassembly
(1) To attach the Y motor, perform the above "Disassembly" procedure in reverse.
CC100-UM-251-9370
4-8
