4 DISASSEMBLY AMD REASSEMBLY
4.5 How to Replace the Rear Guide
Disassembly
(1) Detach the left side cover (see Section 4.1).
(2) Detach the top cover (see Section 4.2).
(3) Detach the right side cover (see Section 4.3).

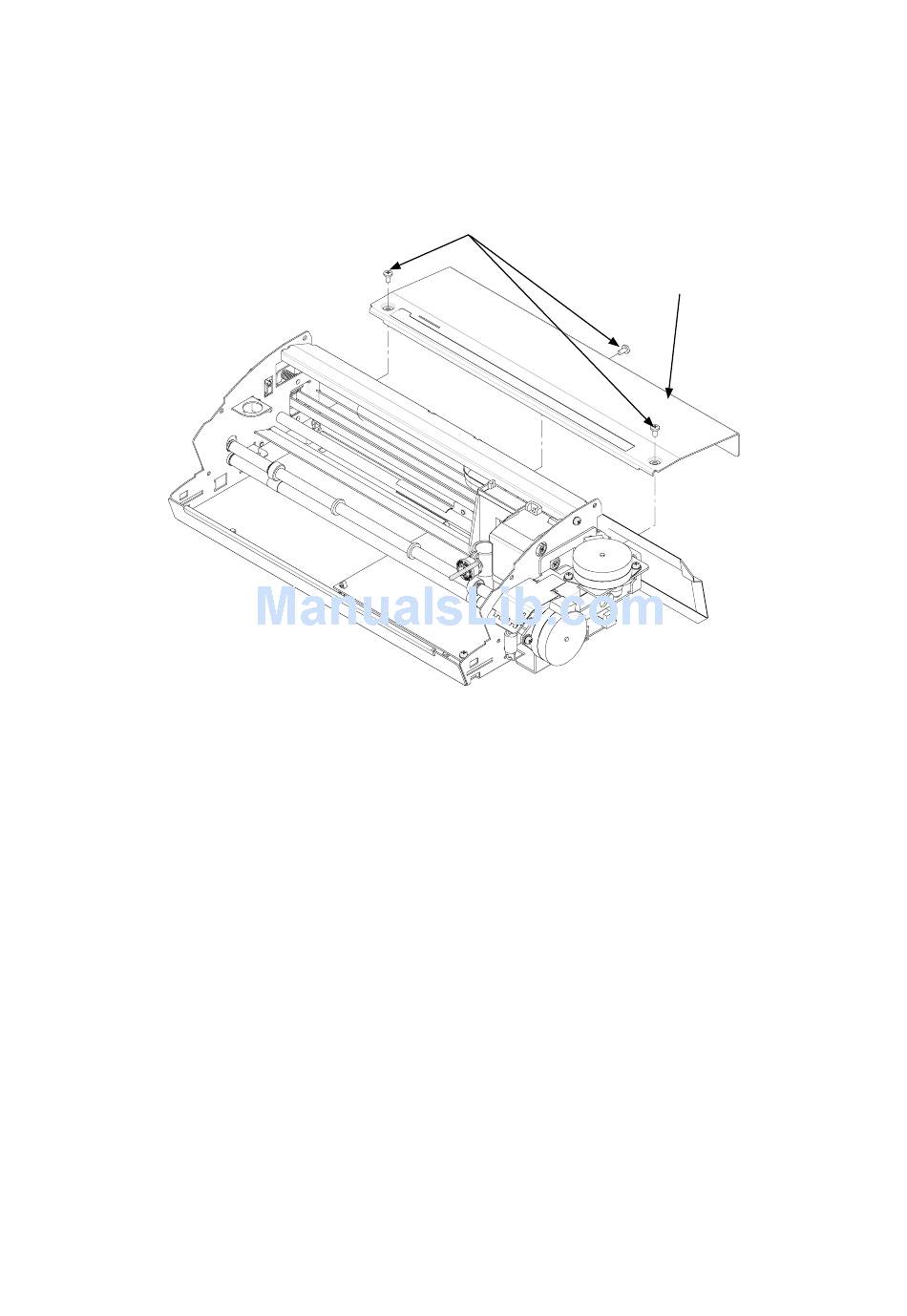

(4) Remove the three M3L6 pan head screws holding the rear guide, and then detach the rear guide.
M3L6 pan head screw
Rear guide
Reassembly
(1) To attach the rear guide, perform the above "Disassembly" procedure in reverse.
CC100-UM-251-9370
4-5
