4 DISASSEMBLY AMD REASSEMBLY

4.12 How to Replace the Y Belt

Disassembly
(1) Detach the left side cover (see Section 4.1).
(2) Detach the top cover (see Section 4.2).
(3) Detach the right side cover (see Section 4.3).
(4) Detach the guide rail (see Section 4.11).
(5) Detach the Y flexible cable from the guide rail (see Section 4.11).
(6) Detach the two adjusting springs from the Y tension bracket.

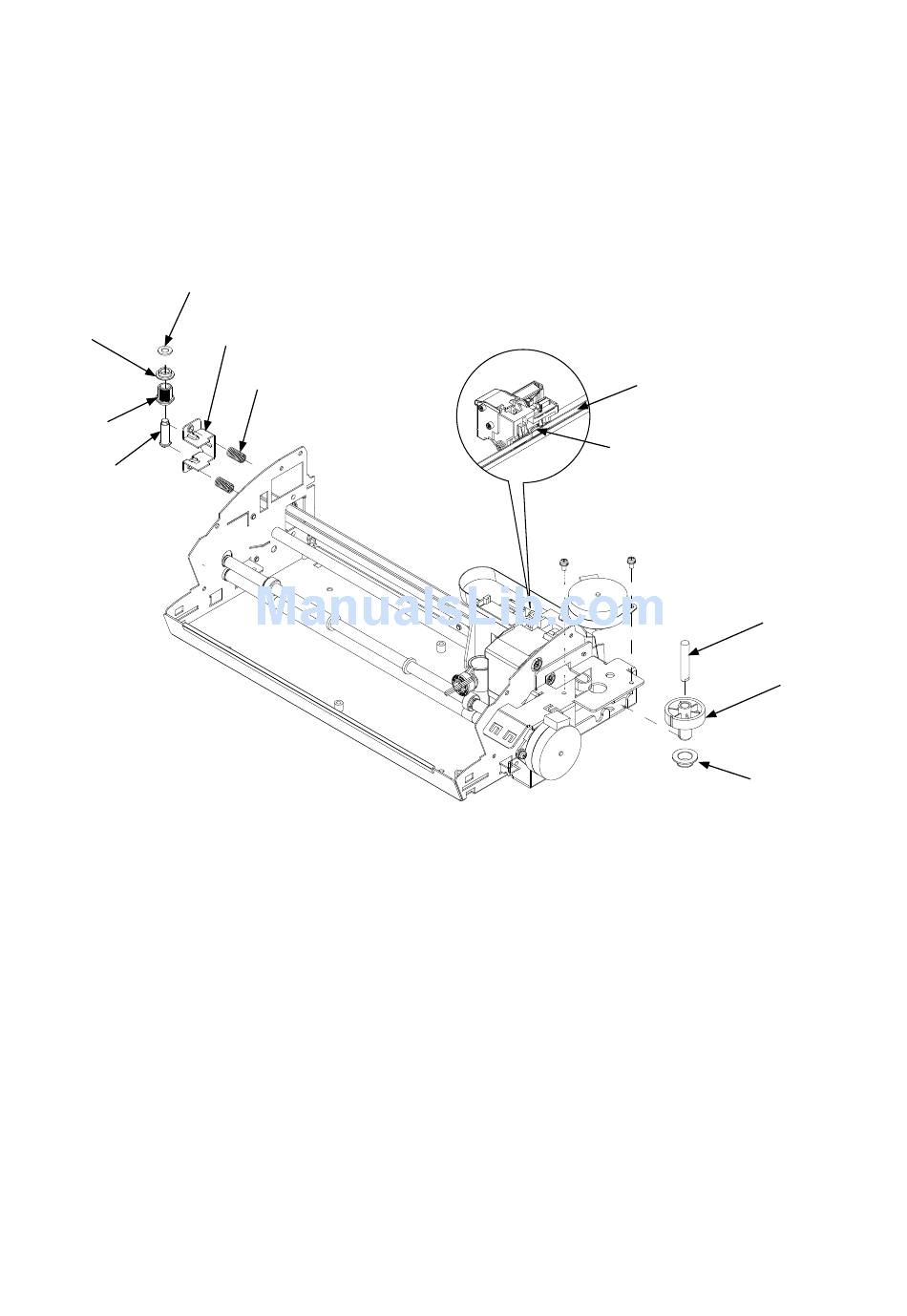

Washer
Y idler flange
Y tension bracket
Y belt
Adjusting spring
Y idler pulley
Y belt clamp
Y left idler shaft
Y right idler shaft
Y drive gear pulley
Y drive collar
(7) Detach the Y tension bracket.
(8) Detach the Y motor (see Section 4.8).
(9) Detach the motor bracket (see Section 4.10).
(10) Pull out the Y right idler shaft from the Y drive pulley, and then detach the Y drive pulley.
(11) Detach the Y left idler shaft from the Y idler pulley.
(12) Detach the Y belt from the belt clamp on the rear of the carriage.
Reassembly
(1) To attach the Y belt, perform the above "Disassembly" procedure in reverse.
CC100-UM-251-9370 4-14
