5.5 Adjusting the Pen Force

This adjustment will set the pen force using the OptionSetEnglish.exe software.
If you replace the main board, use the following procedure to input the recorded adjustment values.
If you replace the solenoid and/or the pen block assembly, you must adjust the pen force using the following
procedure.
How to adjust the pen force
(1) Mount a 0.9 mm diameter cutter pen (PHP32-CB09N without the blade) in the pen holder.
(2) Connect the computer and the CC100-20 via the USB interface.
(3) Connect the power cable to turn on the power.
(4) Turn on the standby switch of the CC100-20.

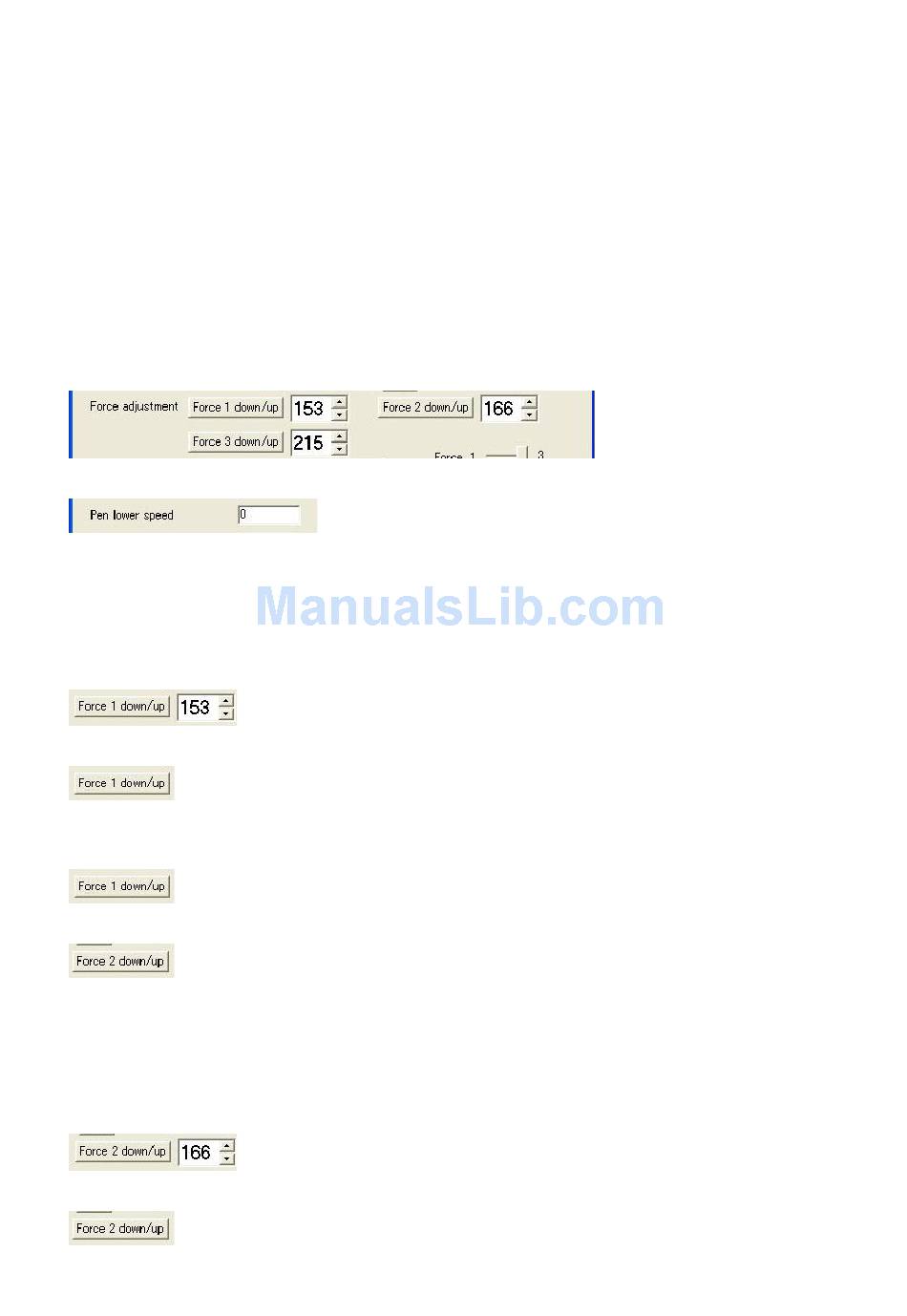

(5) Execute Optionset.exe.
(6) Click the Force 1 down/up button to lower the pen.
(7) If the pen does not lower completely during the force 1 adjustment, change the pen lower speed from 0 to 1.
(8) Use the 100 g force gauge to measure the actual force.
To get the correct force, gently lift the pen up by hand, lower the pen, and then measure the actual force after
you click the force button.
(9) If the measured value is not within the specification range (65 g to 70 g), change the value at the right side of
the Force 1 down/up button so that it is 65 g to 70 g for the actual force.
(10) Click the Force 1 down/up button again to apply the input value.
(11) Use the 100 g force gauge to measure the changed force to confirm it.
(12) Click the Force 1 down/up button again to raise the pen.
(13) Click the Force 2 down/up button to lower the pen.
(14) Use the 300 g force gauge to measure the actual force.
To get the correct force, gently lift the pen up by hand, lower the pen, and then measure the actual force after
you click the force button.
(15) If the measured value is not within the specification range (100 g to 110 g), change the value at the right side
of the Force 2 down/up button so that it is 100 g to 110 g for the actual force.
(16) Click the Force 2 down/up button again to apply the input value.
(17) Use the 300 g force gauge to measure the changed force to confirm it.
CC100-UM-251-9370 5-6
5 ELECTRICAL ADJUSTMENTS
