How To Replace The Pinch Roller Shaft Assembly - GRAPHTEC Craft ROBO CC100-20 Service Manual

4 DISASSEMBLY AMD REASSEMBLY

4.7 How to Replace the Pinch Roller Shaft Assembly

Disassembly
(1) Detach the left side cover (see Section 4.1).
(2) Detach the top cover (see Section 4.2).
(3) Detach the right side cover (see Section 4.3).

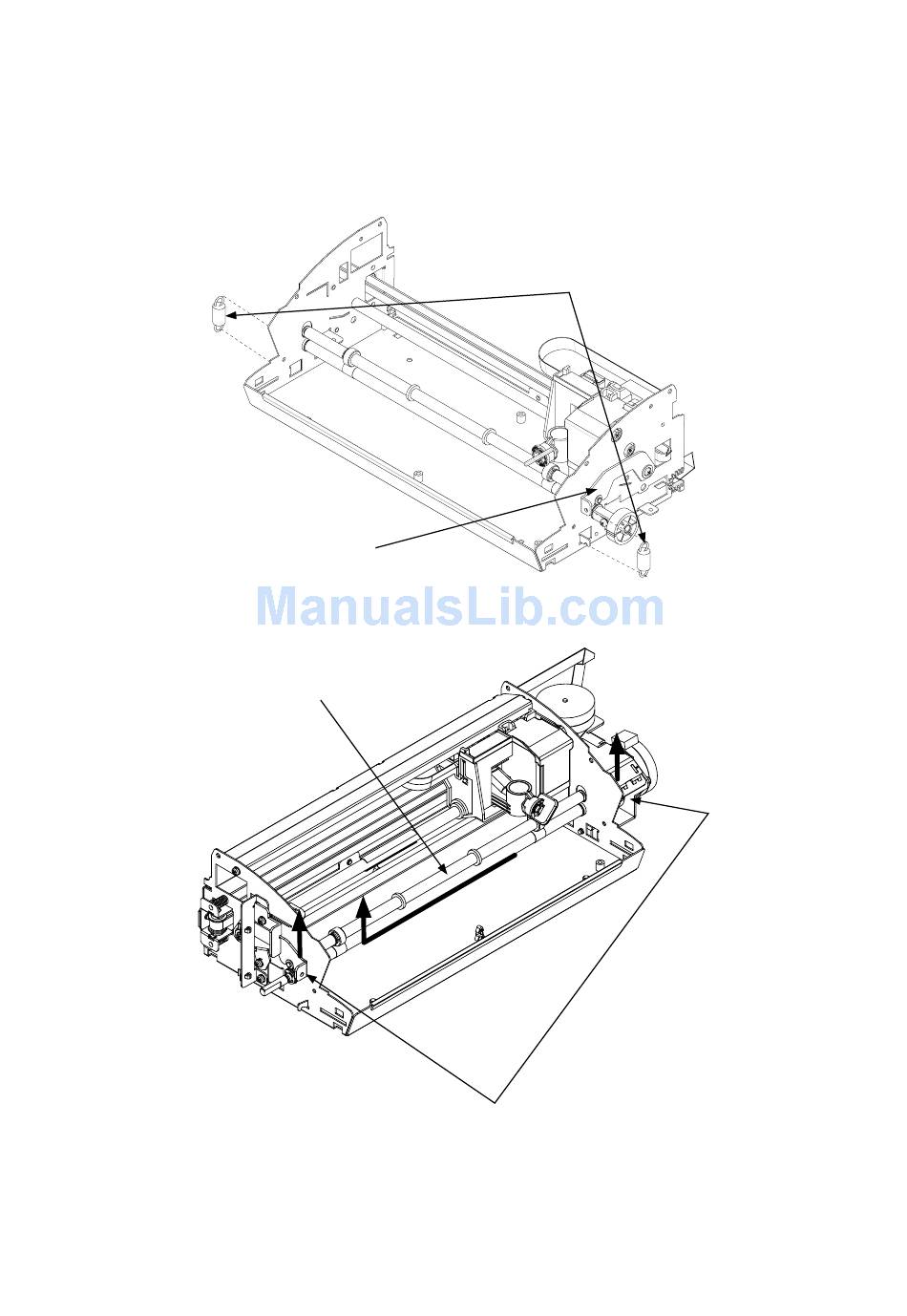

(4) Detach the two pressure springs from the pressure bracket.
Pressure spring
Pressure bracket
(5) Lift up both sides of the pressure bracket, slide the pressure shaft assembly to the left side, and then detach
the pressure shaft assembly from the right side.
Pressure shaft assembly
Pressure bracket
Reassembly
(1) To attach the pinch roller shaft assembly, perform the above "Disassembly" procedure in reverse.
