4 DISASSEMBLY AMD REASSEMBLY

4.10 How to Replace the Feed Roller

Disassembly
(1) Detach the left side cover (see Section 4.1).
(2) Detach the top cover (see Section 4.2).
(3) Detach the right side cover (see Section 4.3).
(4) Detach the two pressure springs from the pressure bracket (see Section 4.7).
(5) Detach the front guide (see Section 4.4).
(6) Detach the Y motor (see Section 4.8).

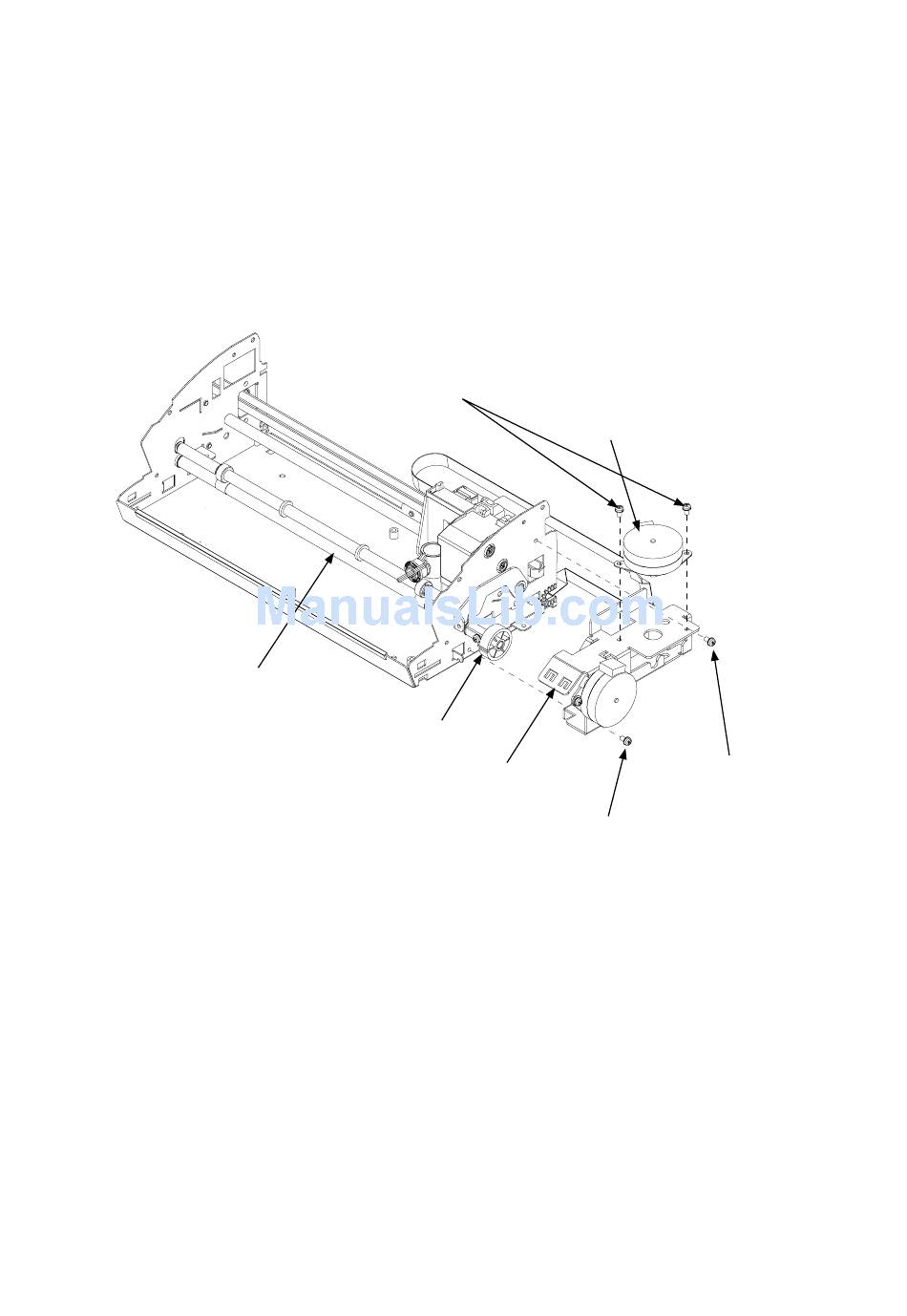

(7) Remove the M3L6 flat head screw and the M3L6 pan head screw holding the motor bracket, and then detach
the motor bracket.
M3L6 TP head screw
Y motor
Feed roller
Feed roller gear
M3L6 pan head screw
Motor bracket
M3L6 flat head screw
(6) Disconnect the X motor cable which is connected to J4 on the main board.
CC100-UM-251-9370 4-10
