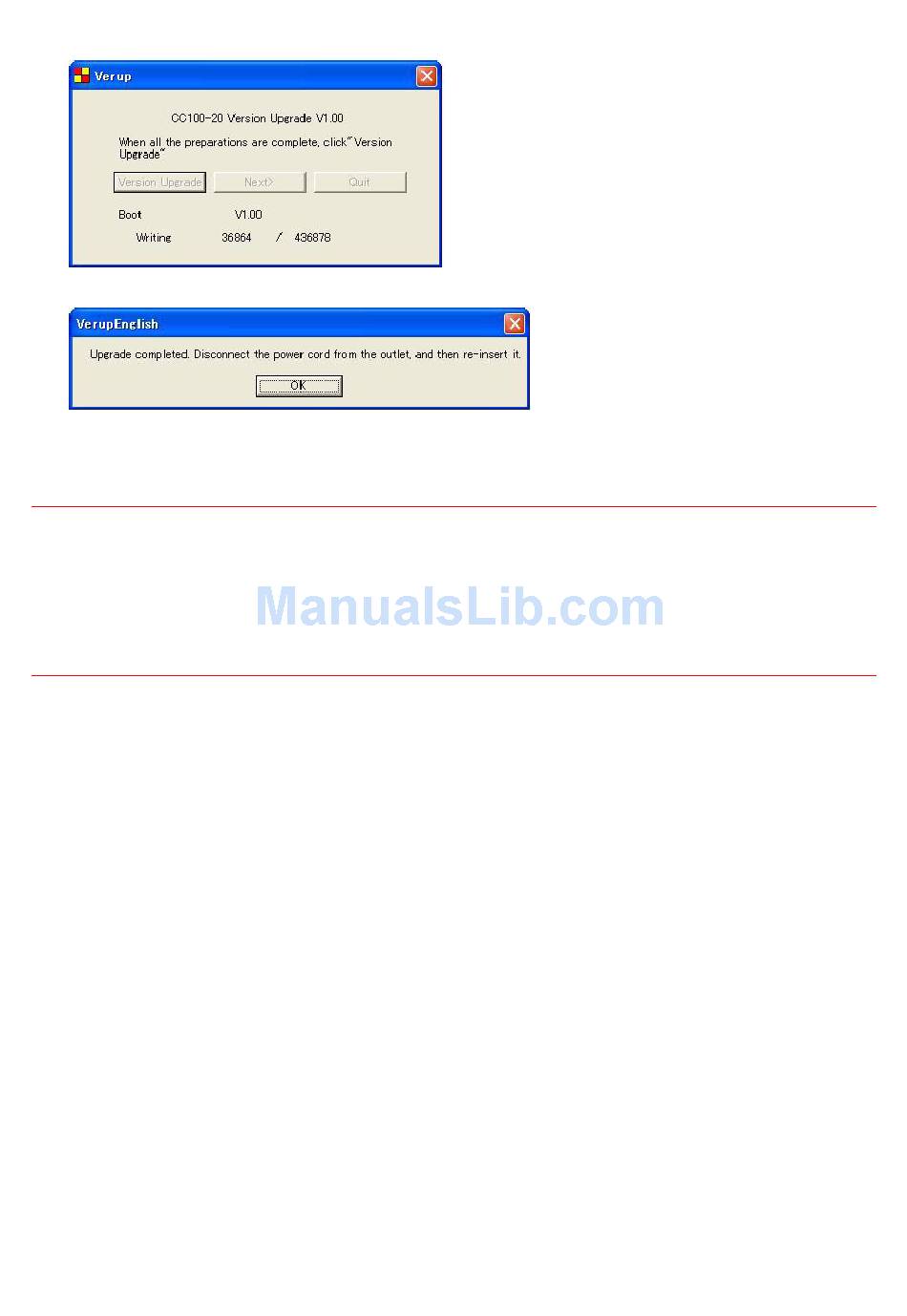

(10) The following menu will appear during the firmware upgrade procedure.
(11) The following menu will appear when the upgrade is complete.
(12) The Standby LED blinks when the upgrade is complete.
(13) Click the OK button to close the VerupEnglish.exe program.
(14) Turn off the power. (disconnect the power cable from the CC100-20.)
Note:
• Do not use the computer for any other purpose while you are upgrading the firmware.
• If you fail to upgrade the firmware, perform the following procedure.
(1) Connect the power cable to the CC100-20 while pressing the standby switch for more than 5 seconds.
(2) Confirm that the standby LED is blinking.
(3) Turn off the power.
(4) Perform the upgrade procedure again.
CC100-UM-251-9370
5-2
5 ELECTRICAL ADJUSTMENTS
