5.4 Using the Adjustment Software

This adjustment software is used for the pen force adjustment, the auto-registration mark sensor adjustment and
the distance adjustment.
To adjust the CC100-20 you need to have the following files. In addition, you need to use a computer and a USB
cable.
• OptionSetEnglish.exe
• GITKUSBP.dll
How to use the adjustment software
(1) Copy the above two software files to the same directory in the PC.
(2) Connect the computer and the CC100-20 via the USB interface.
(3) Connect the power cable to turn on the power.
(4) Turn on the standby switch of the CC100-20.
(5) Execute Optionset.exe.

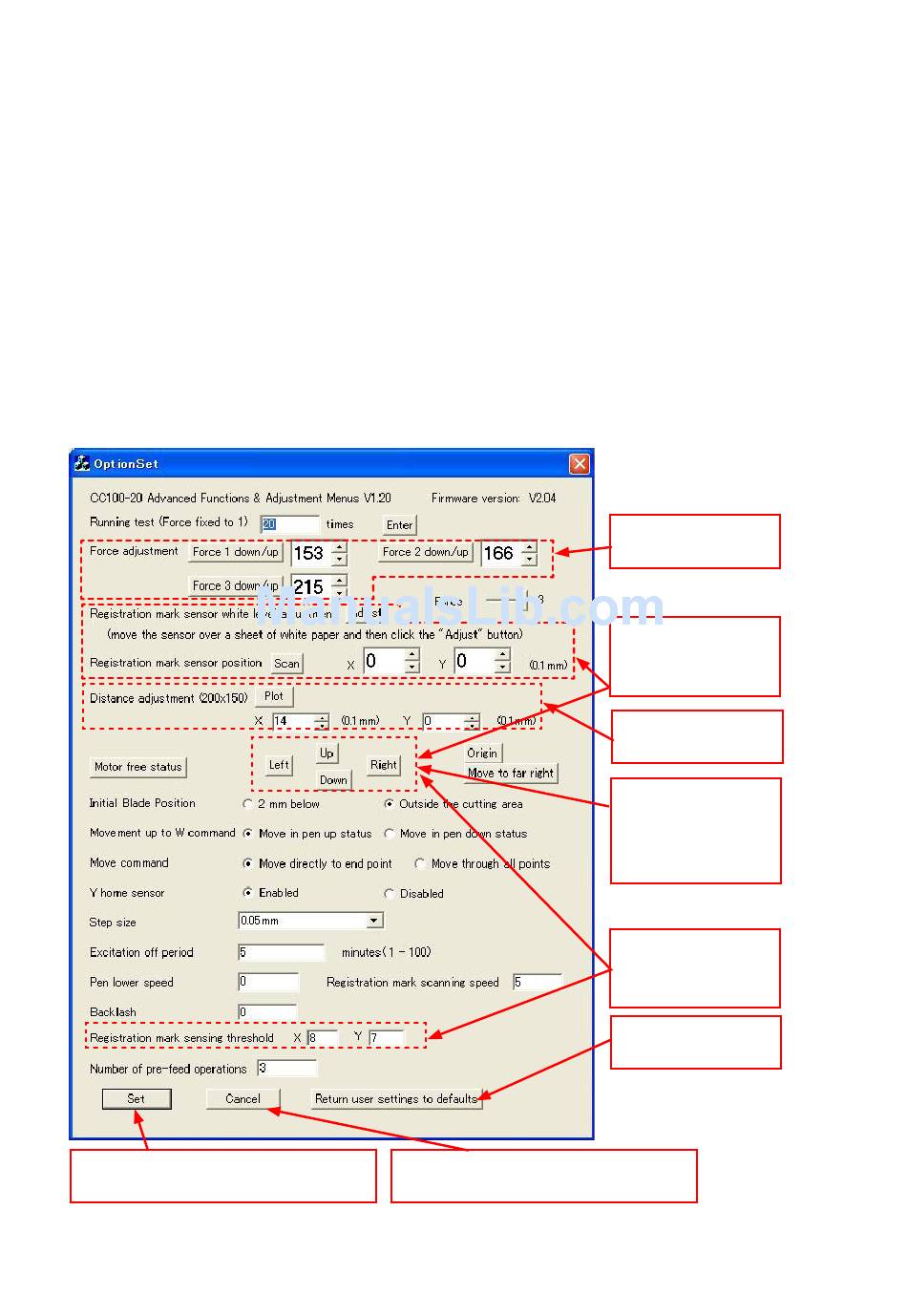

(6) The following menu is displayed.
Close this software and store the settings to
the Nov-RAM.
CC100-UM-251-9370
: CC100-20 adjustment software file
: CC100-20 software dll file
Close this software. (This does not store the
settings.)
5-4
5 ELECTRICAL ADJUSTMENTS
Used for the pen force
adjustment.
Used for the auto-
registration mark sensor
position adjustment.
Used for the distance
adjustment.
How to use the Move
button: Click the button
to move, and click again
to stop.
Used for the auto-
registration mark sensor
threshold adjustment.
Return to the factory
presets.
