4 DISASSEMBLY AMD REASSEMBLY
(7) Remove the two M3L8 TP head screws holding the Y motor, and then detach the Y motor.

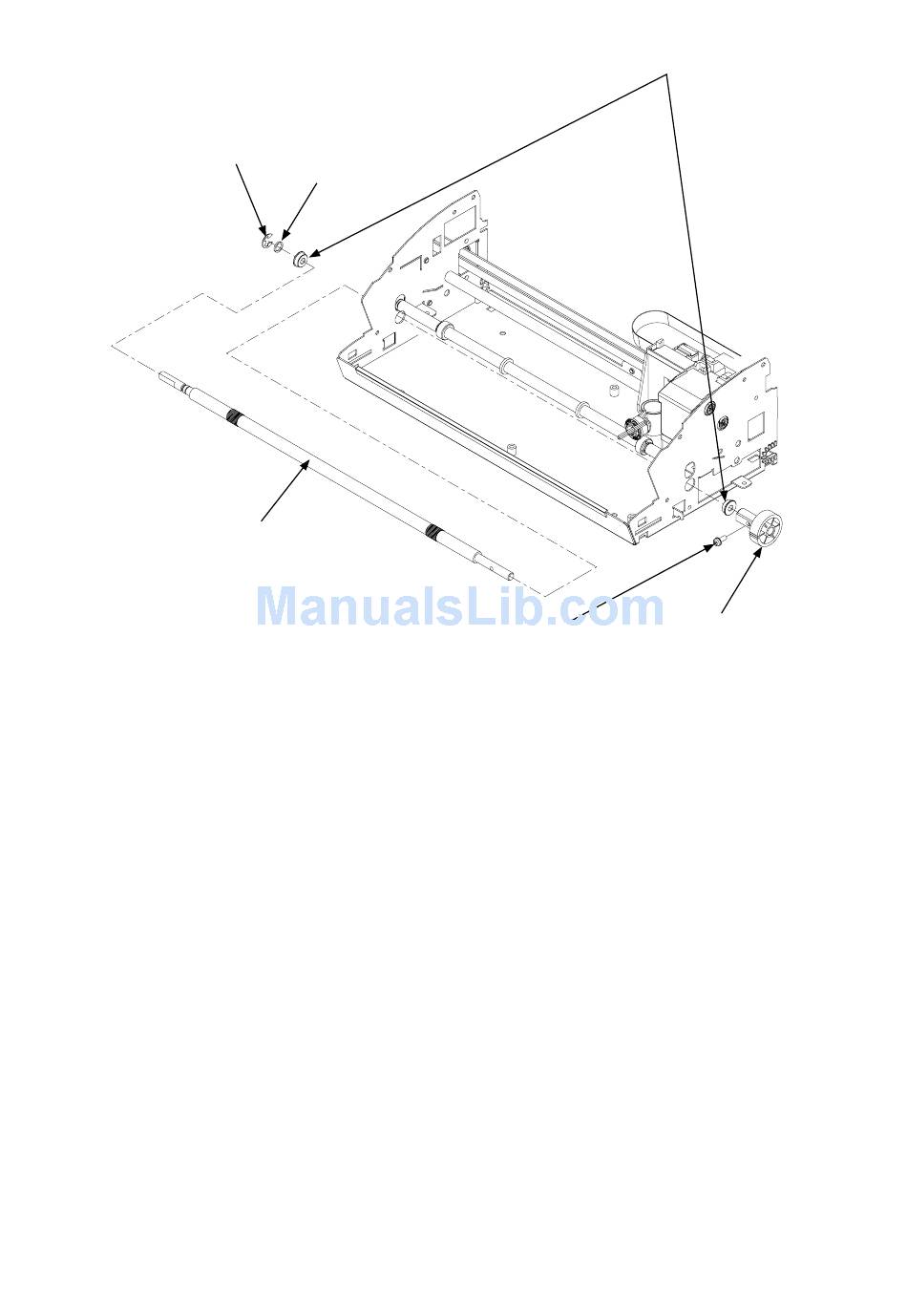

Bearing
E-ring
Collar
Feed roller
X feed roller gear
M3L6 pan head screw
(8) Remove the M3L6 pan head screw holding the X feed roller gear, and then detach the X feed roller gear.
(9) Detach the E-ring from the left side of the feed roller.
(10) Detach the two bearings and the collar from the feed roller, and then detach the feed roller from the main unit.
Reassembly
(1) To attach the feed roller, perform the above "Disassembly" procedure in reverse.
