4 DISASSEMBLY AMD REASSEMBLY

4 DISASSEMBLY AND REASSEMBLY

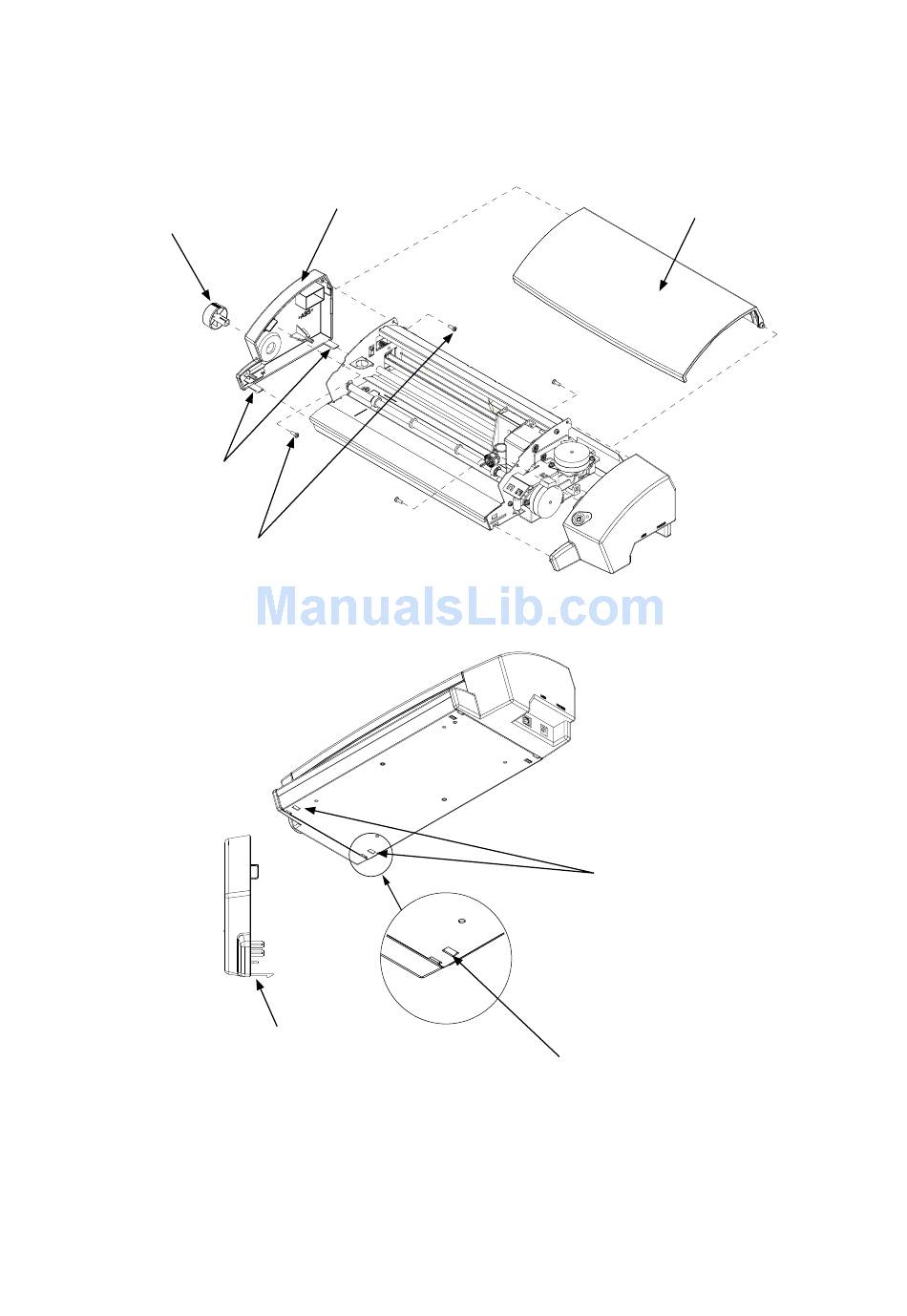

4.1 How to Replace the Left Side Cover

Disassembly
(1) Pull the feed knob from the left side of the unit, and then detach the feed knob.
Left side cover
Top cover
Feed knob
Hook
M3L8 self-tapping screw
(2) Remove the two M3L8 self-tapping screws holding the left side cover.
(3) Release the bottom two hooks of the left side cover, and then detach the left side cover.
Hook hole
Hook
Release the hook here.
Reassembly
(1) To attach the left side cover, perform the above "Disassembly" procedure in reverse.
CC100-UM-251-9370 4-1
