4.2 How to Replace the Top Cover
Disassembly
(1) Detach the left side cover (see Section 4.1).
(2) Pull out the top cover from the right side cover to detach the top cover.

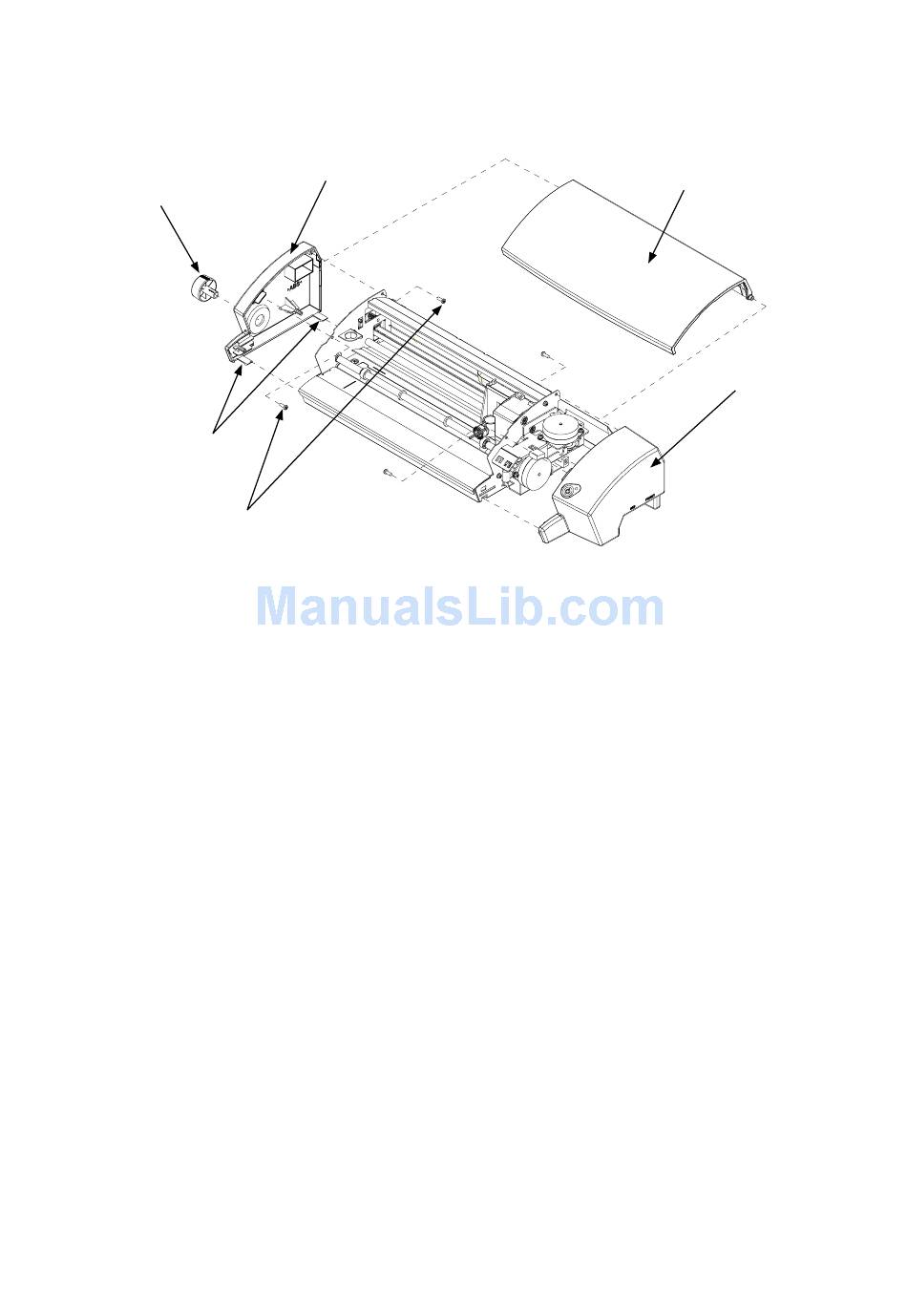

Left side cover
Top cover
Feed knob
Right side cover
Hook
M3L8 self-tapping screw
Reassembly
(1) To attach the top cover, perform the above "Disassembly" procedure in reverse.
CC100-UM-251-9370
4-2
