1 PARTS NAMES and FUNCTIONS

1 PARTS NAMES and FUNCTIONS

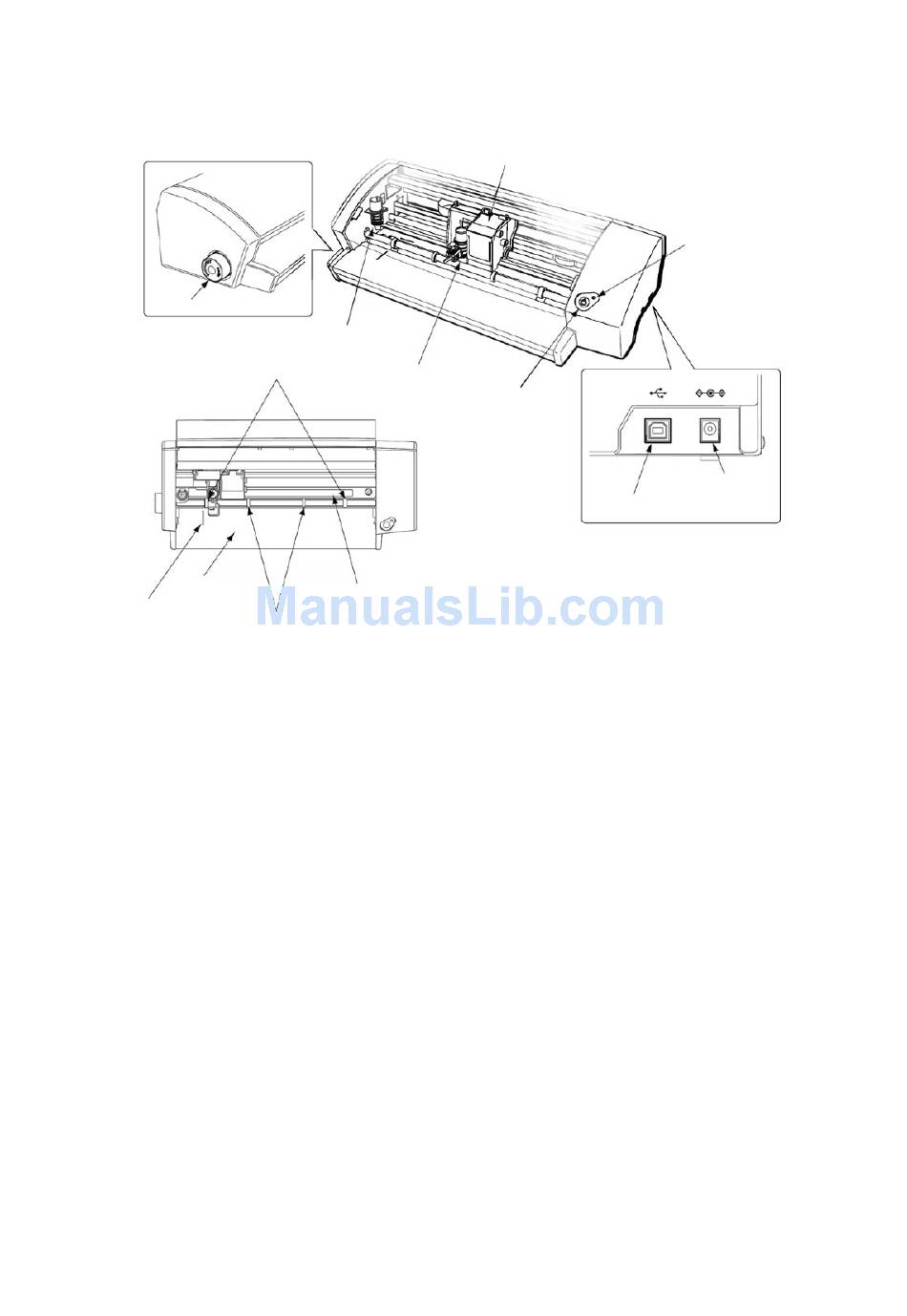

Pen carriage
LED lamp
Feed knob
Ball-point pen plunger
Push roller
Plunger holder
Standby switch
AC adapter jack
USB interface connector
Working table
Cutting mat
Guide line
Media roller
Pen carriage ........................ Drives the cutter pen to the left or right
Ball-point pen plunger ........ Used to plot using a ball-point pen
Plunger holder .................... Holds the cutter pen and drives it in the vertical direction
Standby switch ................... Used to set media in place, and to start or stop the main unit
Feed knob .......................... Drives media back and forth
USB interface connector ..... Used to connect the USB cable
AC adapter jack .................. Used to connect the cable for the AC adapter
Cutting mat ......................... Cutting or plotting work is performed on it
Push roller ........................... Pushes down on the media to hold it in place
Media roller ......................... Carries media
Working table ....................... Work is performed on it
Guide line ........................... Used as a guide when media is set in place
LED lamp ............................. Lights up when the unit is ready to operate and flashes when data is received
1-1
