4 DISASSEMBLY AMD REASSEMBLY

4.16 How to Replace the Auto-Registration Mark Sensor Board

Disassembly
(1) Detach the left side cover (see Section 4.1).
(2) Detach the top cover (see Section 4.2).
(3) Detach the right side cover (see Section 4.3).
(4) Detach the guide rail (see Section 4.11).
(5) Detach the carriage cover from the carriage (see Section 4.14).
(6) Detach the solenoid (see Section 4.15).
(7) Release the hook holding the auto-registration mark sensor board, and then detach the auto-registration mark
sensor board from the carriage.

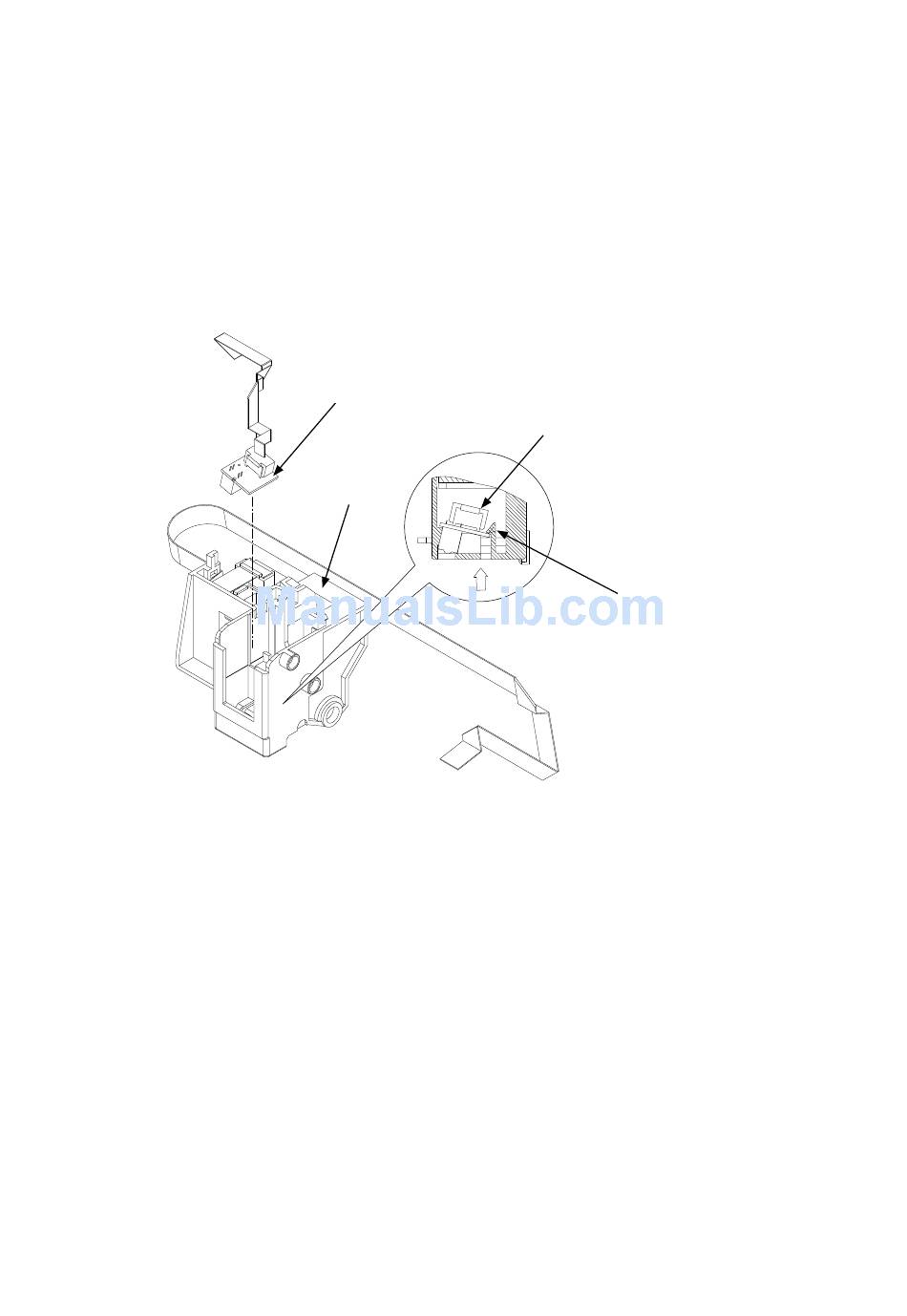

Auto-registration mark sensor board
Auto-registration mark sensor board
Carriage
Release this hook.
Reassembly
(1) To attach the auto-registration mark sensor board, perform the above "Disassembly" procedure in reverse.
