Wall Mounting

A single Switch can be wall-mounted.
CAUTION: Disconnect any cables from the unit
before continuing. Remove self-adhesive pads from
the underside of the unit if they have been previ-
ously fitted.
Place the Switch the right way up on a hard flat sur-
1
face, with the front facing towards you.
Locate a mounting bracket over the mounting
2
holes on one side of the unit, as shown in
Figure 2-3.
Insert the two screws and tighten with a suitable
3
screwdriver.
Repeat for the other side of the unit.
4
Ensure that the wall you are going to use is smooth,
5
flat, dry and sturdy. Attach a piece of plywood,
approximately 305mm x 510mm x 12mm (12in. x
20in. x 0.5in.) securely to the wall if necessary, and
mount the Switch as follows:
Position the base of the unit against the wall (or
a
plywood) ensuring that the ventilation holes face
sidewards. Mark on the wall the position of the
screw holes in both wall brackets. Drill the four
holes.
Using suitable fixings and screws (not provided),
b
attach the Switch unit securely to the wall or ply-
wood.
Connect network cabling.
c
Installing the Switch 3000 10/100

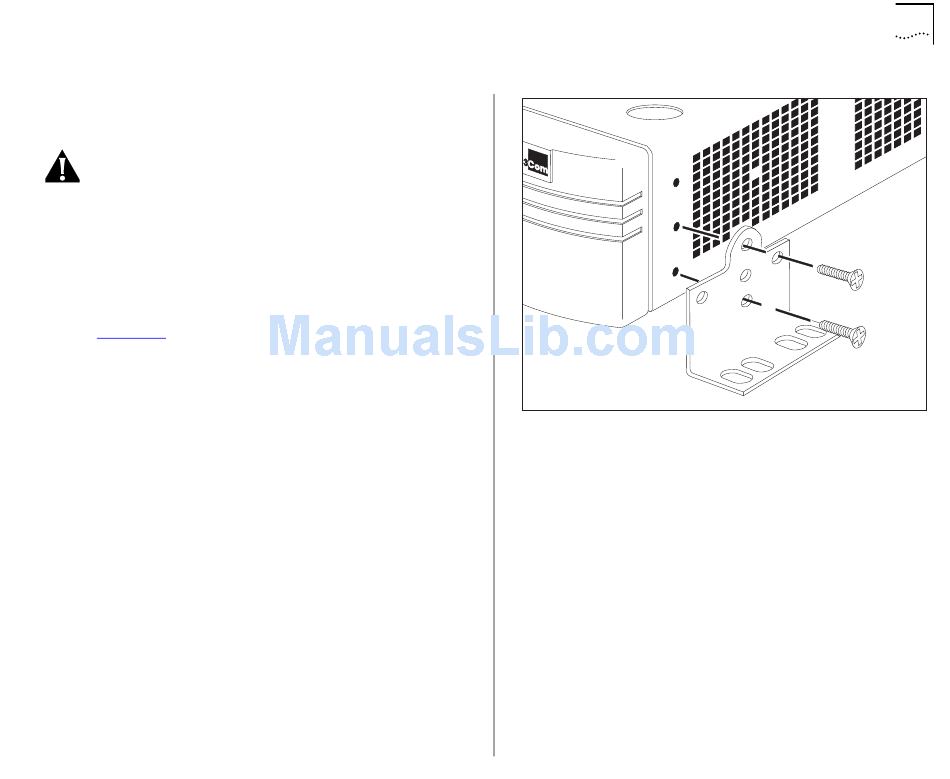

Figure 2-3 Fitting a bracket for wall mounting
2-5
